Product Features
-

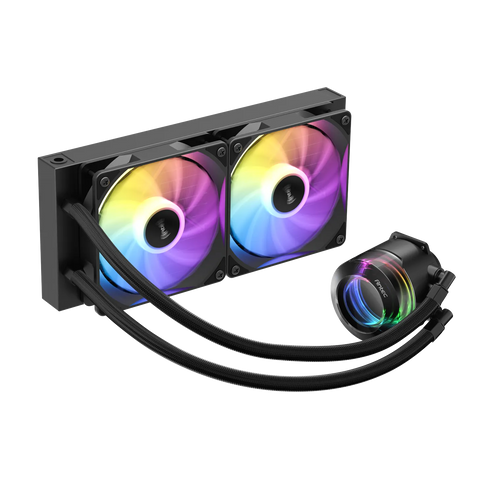

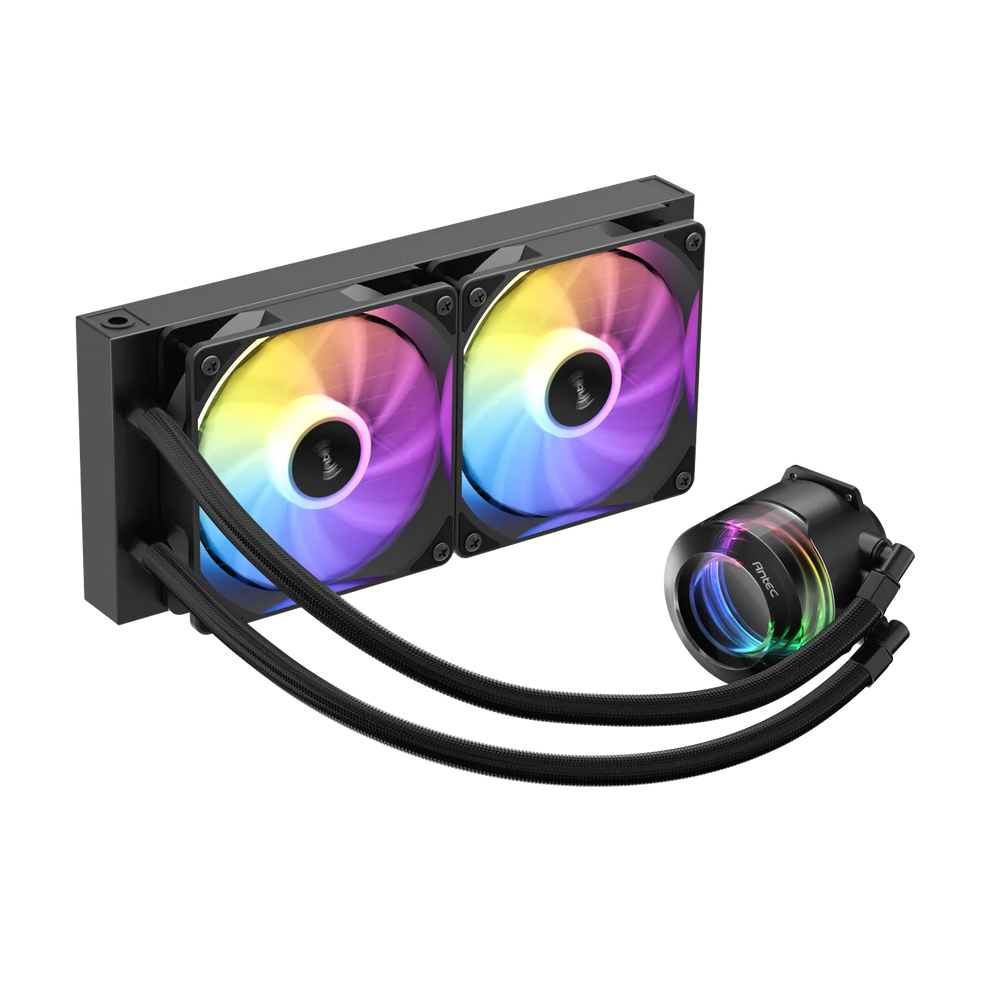

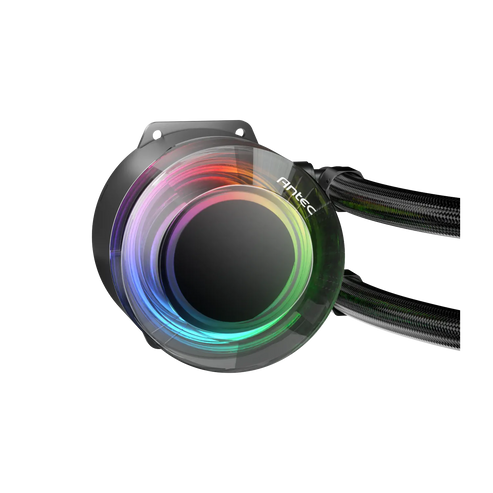

Suspended Spiral Pump Head Design
Provides outstanding cooling performance and various lighting effects from different angles.
-
High Performance Cooling

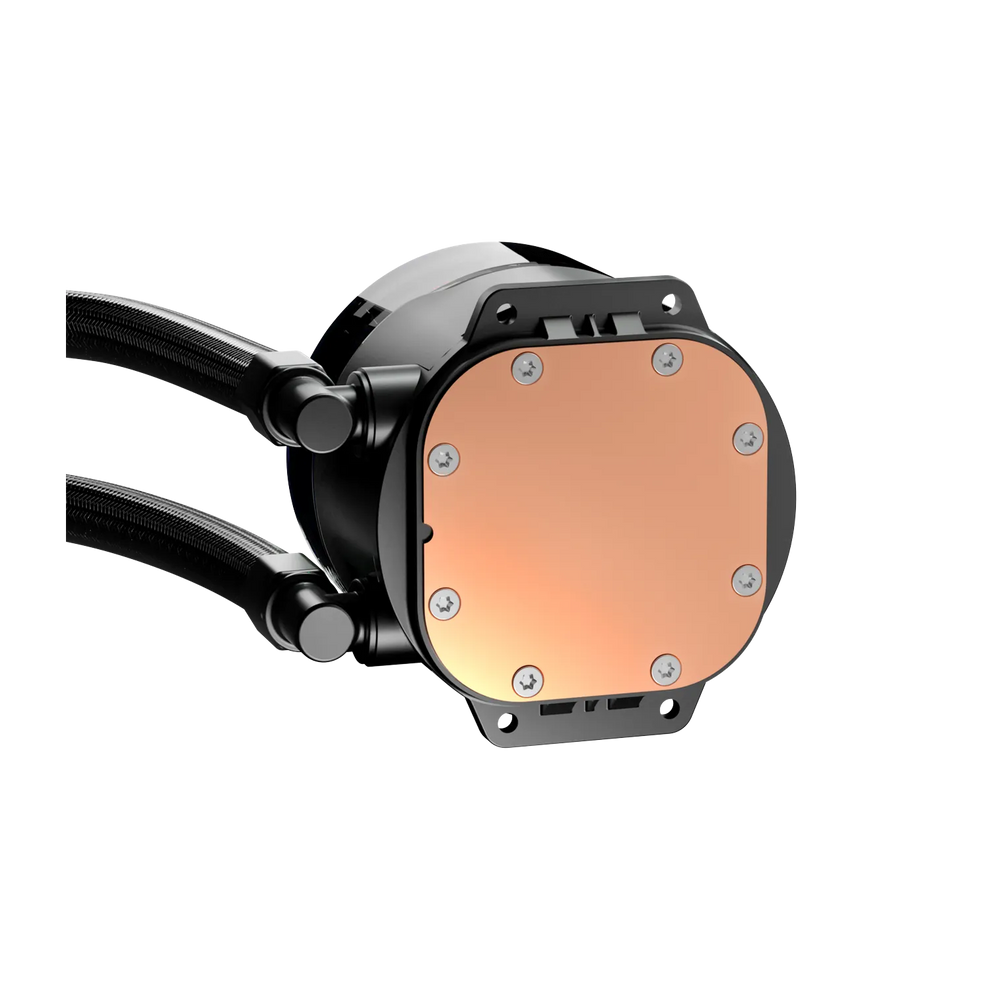

A copper base plate provides highly efficient cooling.
-

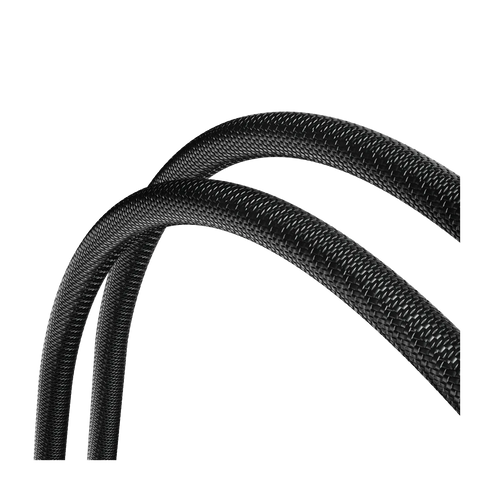

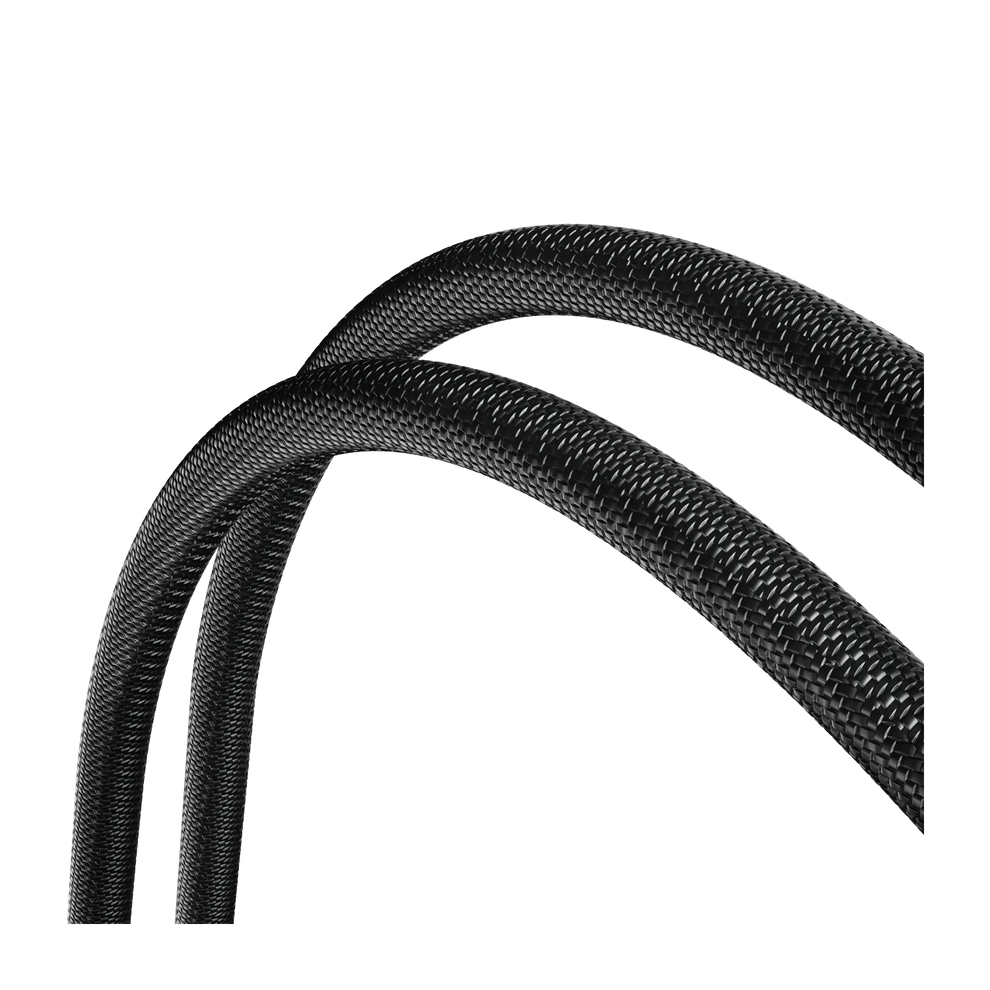

EPDM High-Density Tubing
Durable EPDM high-density tubing reduces liquid loss.
-
Superior Fin Density
Massive 13 fins dissipate heat rapidly.
Specifications

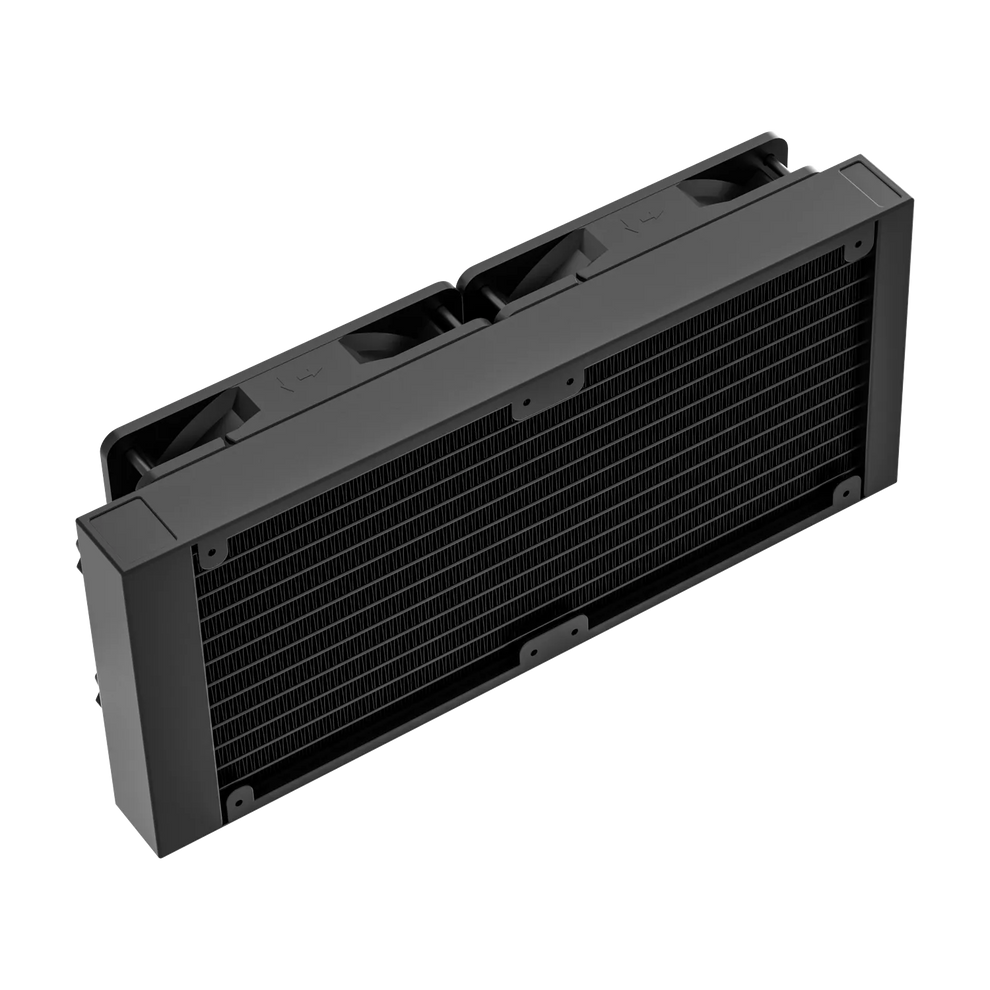

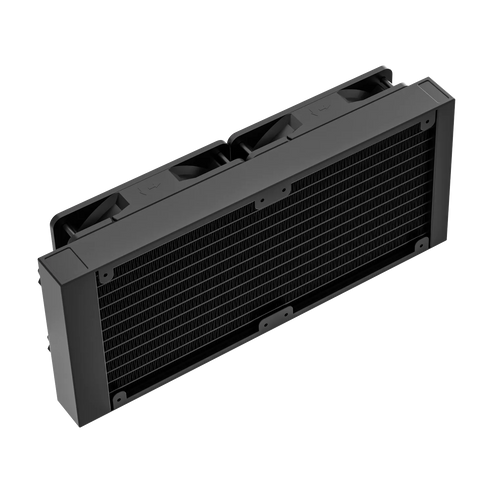

Radiator
Dimensions
277 x 120 x 27 mm
Material
Aluminum
Pump
Dimensions
￠67 x 48.5 mm
Rating Voltage
DC 12 V
Minimum Startup Voltage
≥ 5.0 V
Fan Speed
2800±10% RPM
Rated Current
0.25±20% A
Consumed Power
3.0 W
Flow Rate
≥ 1300 mL / min
Water Pressure
1.4M
Operation Temperature
-10°C ~ +60°C
Noise Level
≤ 28 dB(A)
Lifespan
40,000 hours
Connector
- Pump: 3-pin
- LED: 3-pin

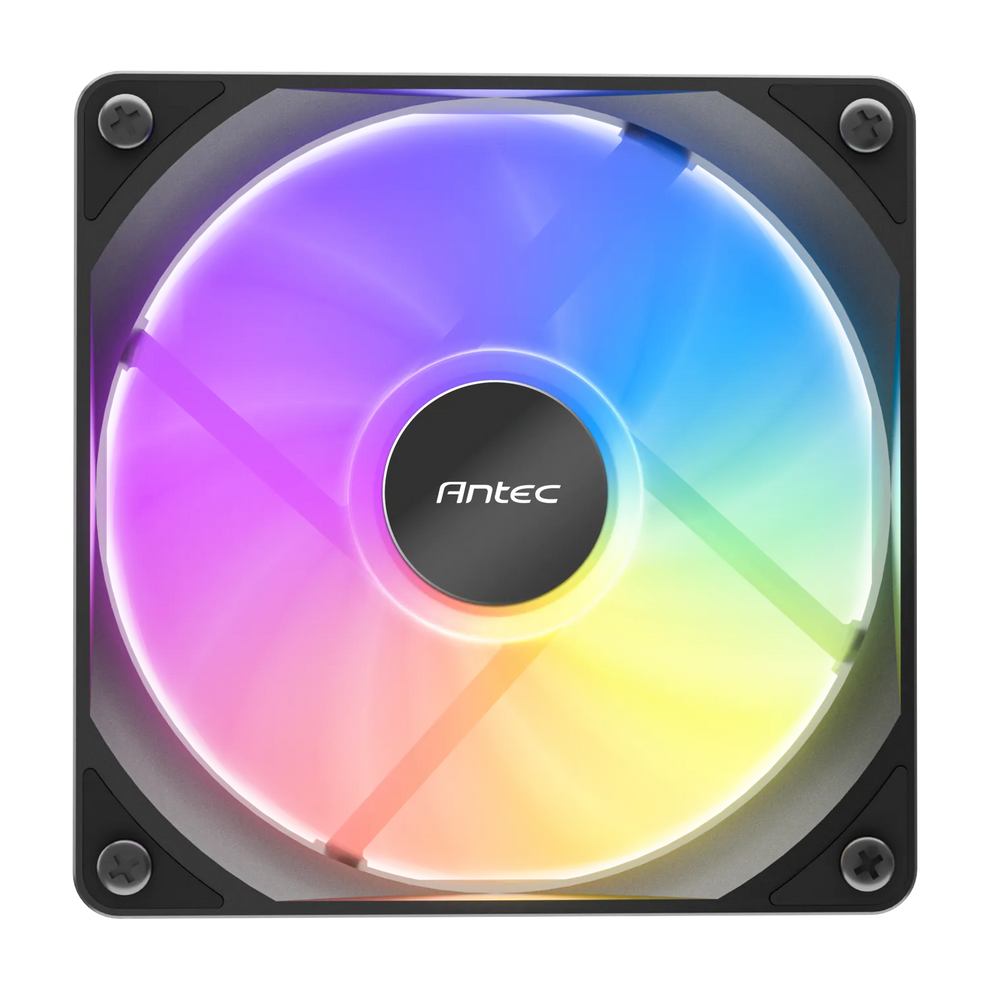

Fan
Dimensions
120 x 120 x 25 mm
Bearing Type
Hydraulic Bearing
LED Type
Addressable RGB
Fan Speed
800±200~1800±10% RPM
Airflow
71.5 CFM (max.)
Air Pressure
2.45 mmH₂O (max.)
Fan Noise Level
31 dB(A)
Lifespan
40,000 hours
Connector
PH 2.0 7-pin (PWM+ARGB)
Rated Voltage
- Fan: DC 12 V
- LED: DC 5 V
Operation Voltage
- Fan: DC 10.8-13.2 V
- LED: DC 4.5-5.5 V
Rated Current
- Fan: 0.20-0.25 A
- LED: 0.32 A
Socket Compatibility
Intel
LGA 115X / 1200 / 1700 / 20XX / 1851
AMD
AM3 / AM4 / AM5
Miscellaneous
Warranty
3 Years
TDP
≤ 260W
UPC#
0-761345-40054-1
