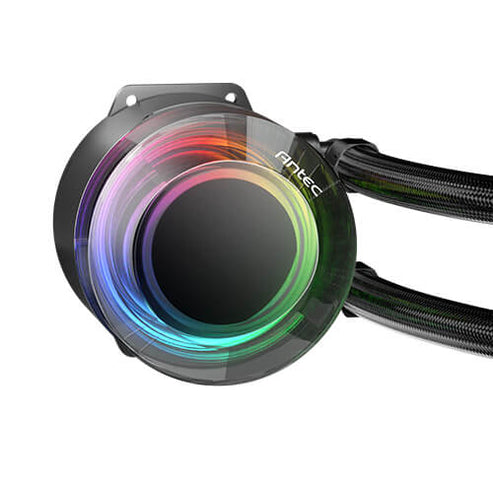

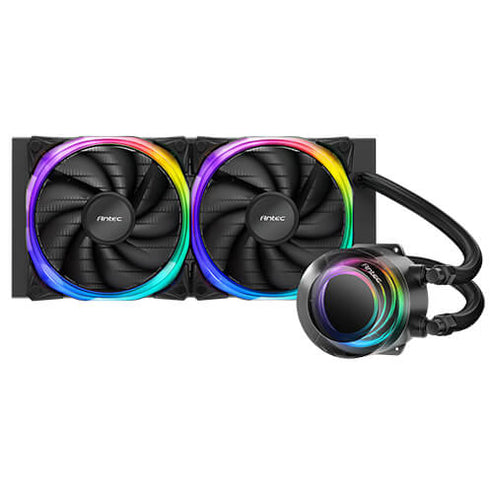

- Suspended Spiral Pump Head Design
The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.

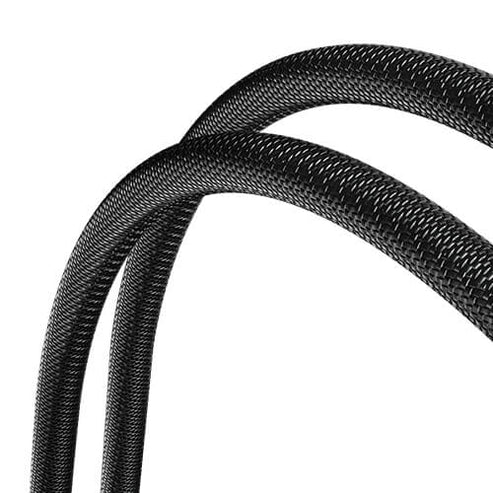

- EPDM High-Density Tubing
The EPDM high-density tubing is very durable, making less loss of liquid.

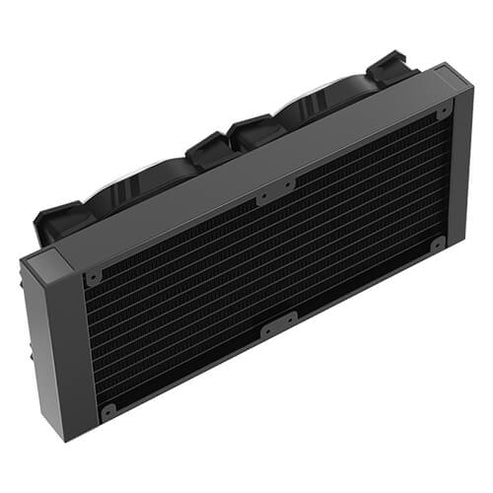

- Superior Fin Density
Massive 13 fins dissipate heat rapidly.

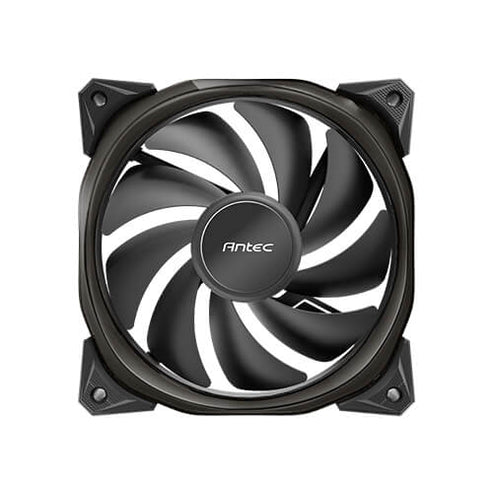

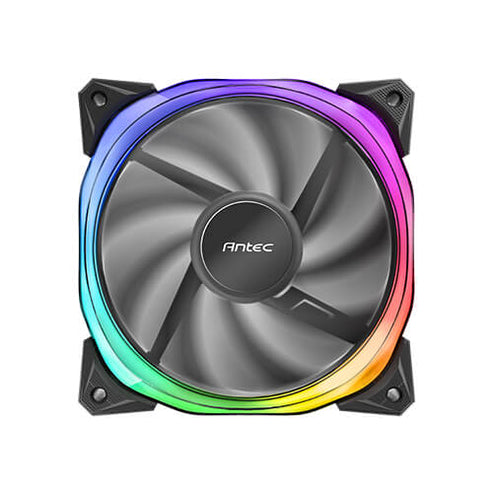

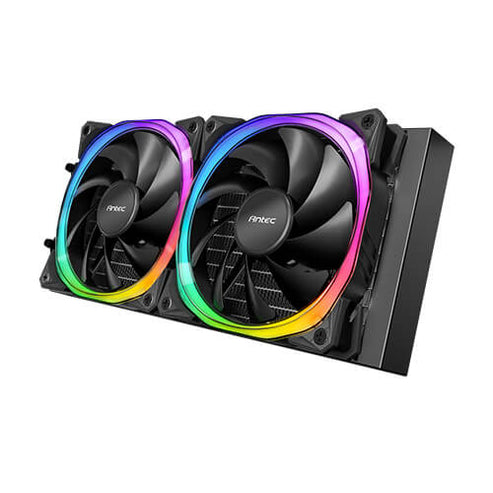

- Antec Fusion PWM ARGB Fan
The Vortex 240 ARGB adopted the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame with 16 LEDs projecting the most harmonious lighting effects and providing more powerful cooling for the CPU.
Specifications

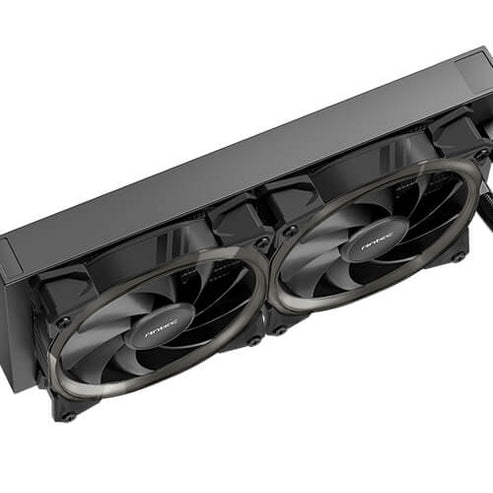

Radiator
Dimensions
277 x 120 x 27 mm
Material
Aluminum

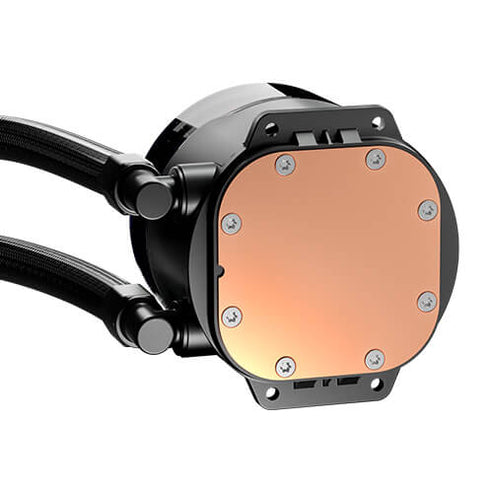

Pump
Dimensions
￠67 x 48.5 mm
Rating Voltage
DC 12 V
Minimum Startup Voltage
≥ 5.0 V
Fan Speed
2800±10% RPM
Rated Current
0.25±20% A
Consumed Power
3.0 W
Flow Rate
≥ 1300 mL / min
Water Pressure
1.4M
Operation Temperature
-10°C ~ +60°C
Noise Level
≤ 28 dB(A)
Lifespan
40,000 hours
Connector
- PUMP: 3-pin
- LED: 3-pin
Fan
Model Name
Fusion 120 ARGB fan (AH12012FM1)
Fan Type
PWM Fan
Dimensions
120 x 120 x 25 mm
Bearing Type
Hydraulic Bearing
LED Type
Addressable RGB
Fan Speed
600±200 ~ 2000±10% RPM
Airflow
57.93 CFM (max.)
Air Pressure
2.11 mmH₂O (max.)
Fan Noise Level
31.24 dB(A)
Lifespan
40,000 hours
Connector
- Fan: 4-pin PWM
- LED: 3-pin
Rated Voltage
- Fan: DC 12 V
- LED: DC 5 V
Operation Voltage
- Fan: DC 6.0-13.8 V
- LED: DC 4.5-5.5 V
Rated Current
- Fan: ≤ 0.21 A
- LED: ≤ 0.58 A
Socket Compatibility
Intel
LGA 115X / 1200 / 1700 / 20XX
AMD
AM3 / AM4 / AM5
Miscellaneous
Warranty
3 Years
UPC#
0-761345-74046-3
TDP Number
Vortex240 240W
