- Simple Assembly & Superior Cooling

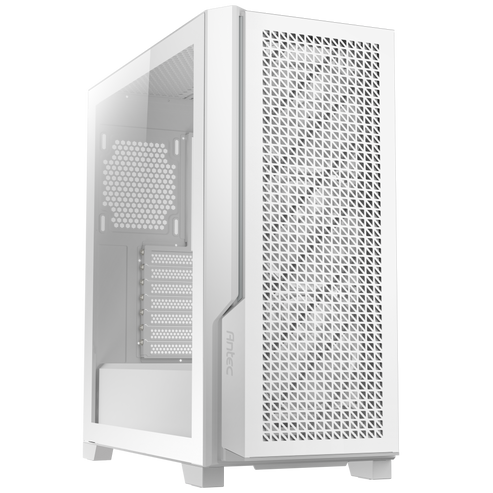

Antec Performance Series P20C adopts a unique metal design, providing a massive airflow path. With the full-size dust filter, the P20C can reach the balance between cooling and dust prevention. The pin-type metal front panel is effortlessly removable, and the clip-on dust filter makes cleaning easy. The well-designed styling will give you a remarkable PC showcase.
- 3 x 120mm PWM Fans Included
- Pre-installed fans at the front provide massive airflow, and the PWM function can easily reach the balance between cooling and silence.
- The included 1 to 4 fan splitter cable makes cable management easy.
- Type-C 3.2 Gen 2 Ready
Built-in Type-C 3.2 Gen 2 port provides transfer speeds up to 10 Gbps.
- Power
- Reset
- HD-AUDIO
- MIC
- USB 3.0 *2
- Type-C 3.2 Gen 2
- High flexibility for Expansion
Features an extensive interior and powerful compatibility. Supports 2 x 360mm radiators at the front and the top simultaneously.
- Supports Vertical GPU Installation
Ready to provide users with a more flexible layout through the 7 reusable PCI-E slots for vertical GPU installation.
- Dual CPU Motherboard Support
Supports dual CPU motherboards with a width of up to 330mm, reflecting the upgrade and evolution of compatibility.
- Building a Clean PC Is Within Easy Reach
Well-designed cable routing makes wiring easy and simple. The cable channels with a cut out on top for stable routing.
- 9 Fans Simultaneously
3 x 120mm fans and a 360mm radiator can be installed inside the interior at the front. Plus 3 x 120mm fans outside the interior for outstanding cooling. Supports up to 9 x 120mm fans & 360mm radiators at the front and top simultaneously.
- Easy Installation
Fits up to 4 drive devices. 2 HDD & SSD compatible hard drive bays; 2 SSD hard drive bays.
- Snap-in 2.5" drive device for easy mounting.
- Removable hard drive cage.
- Tool-free 3.5" drive tray.
Specifications
Basic Details
Dimensions (DWH)
469 x 220 x 490mm
Form Factor
Mid Tower
Materials
Steel and Plastic
Mainboard Support
E-ATX (up to 330mm), ATX, Micro-ATX, ITX
Front Access & Controls
- Power
- Reset
- 2 x USB 3.0
- 1 x Type-C 3.2 Gen 2
- 1 x MIC
- 1 x HD-AUDIO
- LED (P20C ARGB only)
Side Panel
- P20C (Black/White) and P20C ARGB: 4mm tempered glass
- P20CE: Solid side panel
Drive Bays
Expansion Slots
7 (Full Profile Expansion Slots)
3.5" /2.5"
2 / 2
2.5"
2
Fans
Front
3 x 120mm / 3 x 140mm / 2 x 185mm
Top
3 x 120mm / 2 x 140mm
Power Supply Shroud
2 x 120mm
Rear
1 x 120mm
Included Fan(s)
- P20C (Black): 3 x 120mm PWM fans (in front)
- P20C (White): 3 x 120mm White PWM Fans (in front)
- P20C ARGB: 3 x 120mm ARGB fans (in front)
- P20CE: 3 x 120mm PWM fans (in front)
Radiator Support
Front
120 / 140 / 240 / 280 / 360mm
Top
120 / 140 / 240 / 280 / 360mm
Rear
120mm
Clearance
Max GPU Length
≤ 375mm
Max CPU Cooler Height
≤ 170mm
Max PSU Length (including cable)
≤ 205mm (with HDD)≤ 410mm (without HDD)
Cable Routing Space
≤ 23mm
Miscellaneous
Net Weight
- P20C (Black/White and ARGB): 8.1kg
- P20CE: 7.21kg
Gross Weight
- P20C (Black/White and ARGB): 9.32kg
- P20CE: 8.45kg
Warranty
2 Years
UPC#
- P20C (Black): 0-761345-80103-4
- P20C (White): 0-761345-80108-9
- P20C ARGB: 0-761345-80107-2
- P20CE: 0-761345-80104-1
Accessories
GPU Holder
Yes
GPU Holder
Yes
Cable Routing Grommets
8 pieces
Fixed Cable Ties
3 pieces
Captive Thumb Screws
- Side Panels
- GPU Holder
- PSU Brace
Fan and LED Control Hub
Yes, for P20C ARGB only
Downloads
For additional support, please visit our support page or contact us.
