- Quiet operation
8 anti-vibration rubber pads and hydro bearing help the fan run quietly.

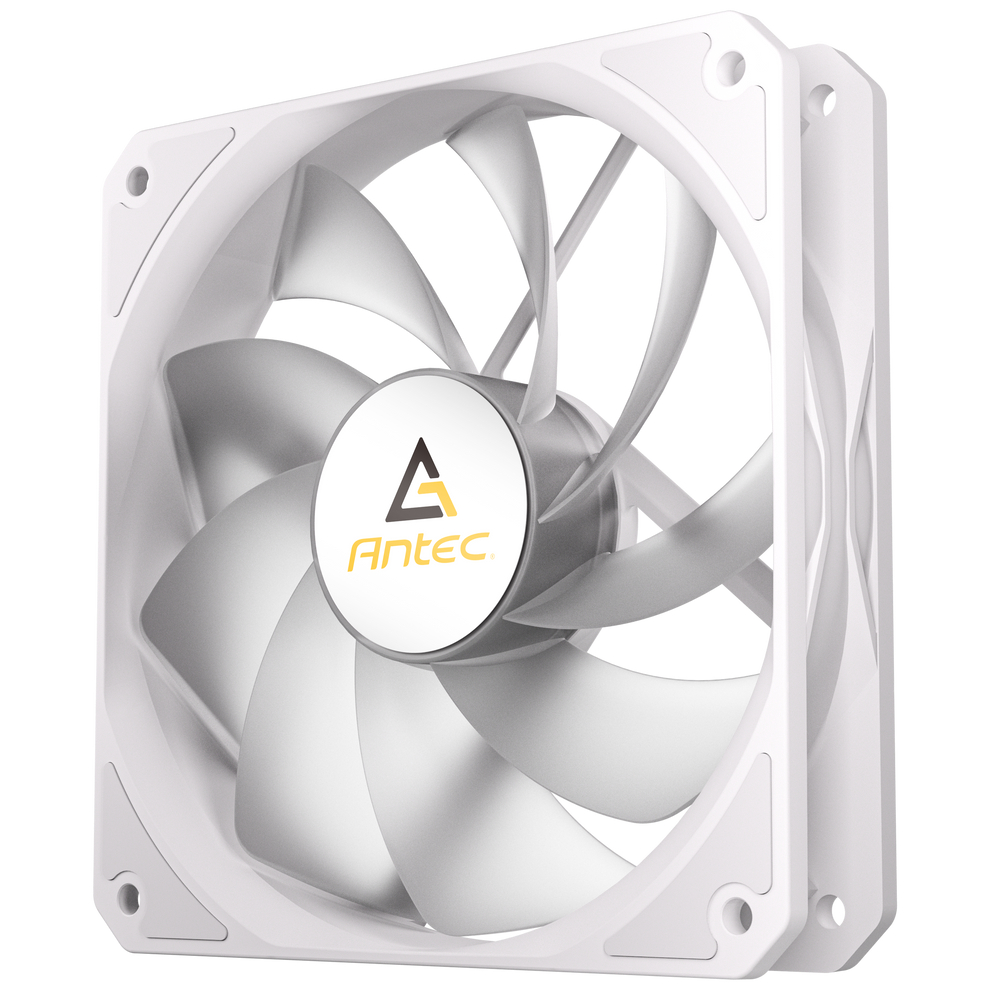

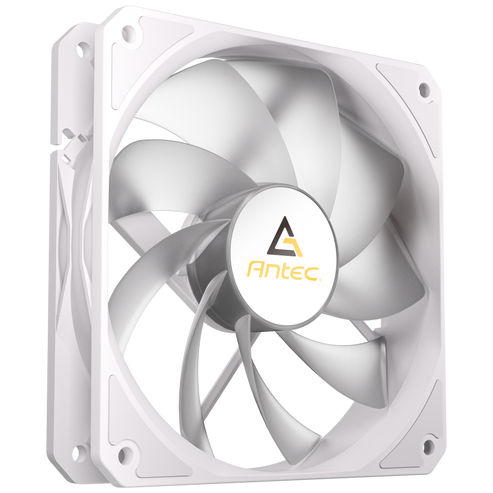

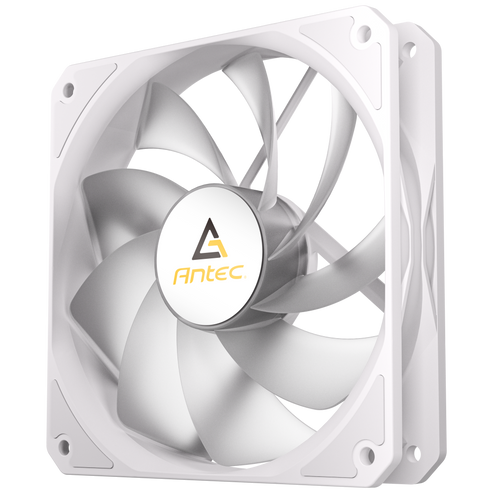

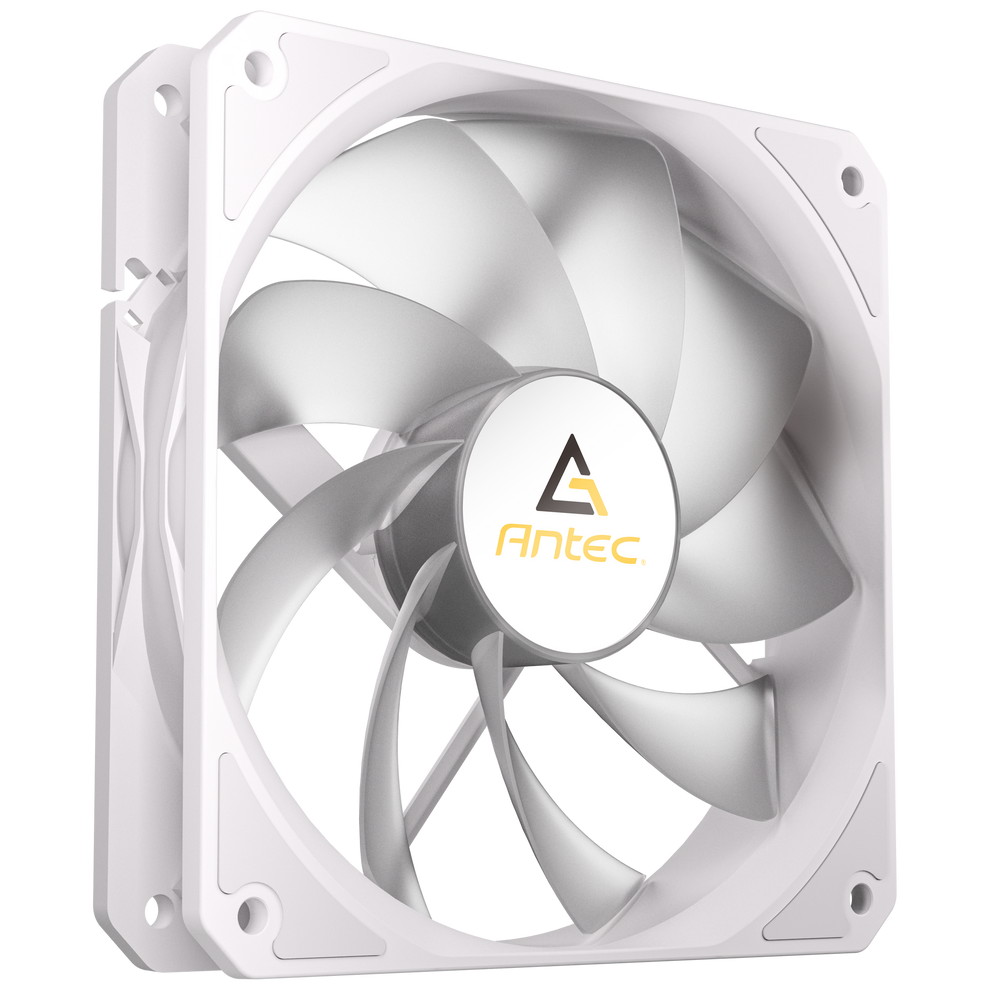

- Reverse fan
Reverse fan blade design provides smoother air intake in a cleaner look.
- Superior Heat Dissipation
9-blade design provides efficient ventilation and powerful airflow, ensuring the fan maintains extremely efficient cooling level even as air resistance increases.

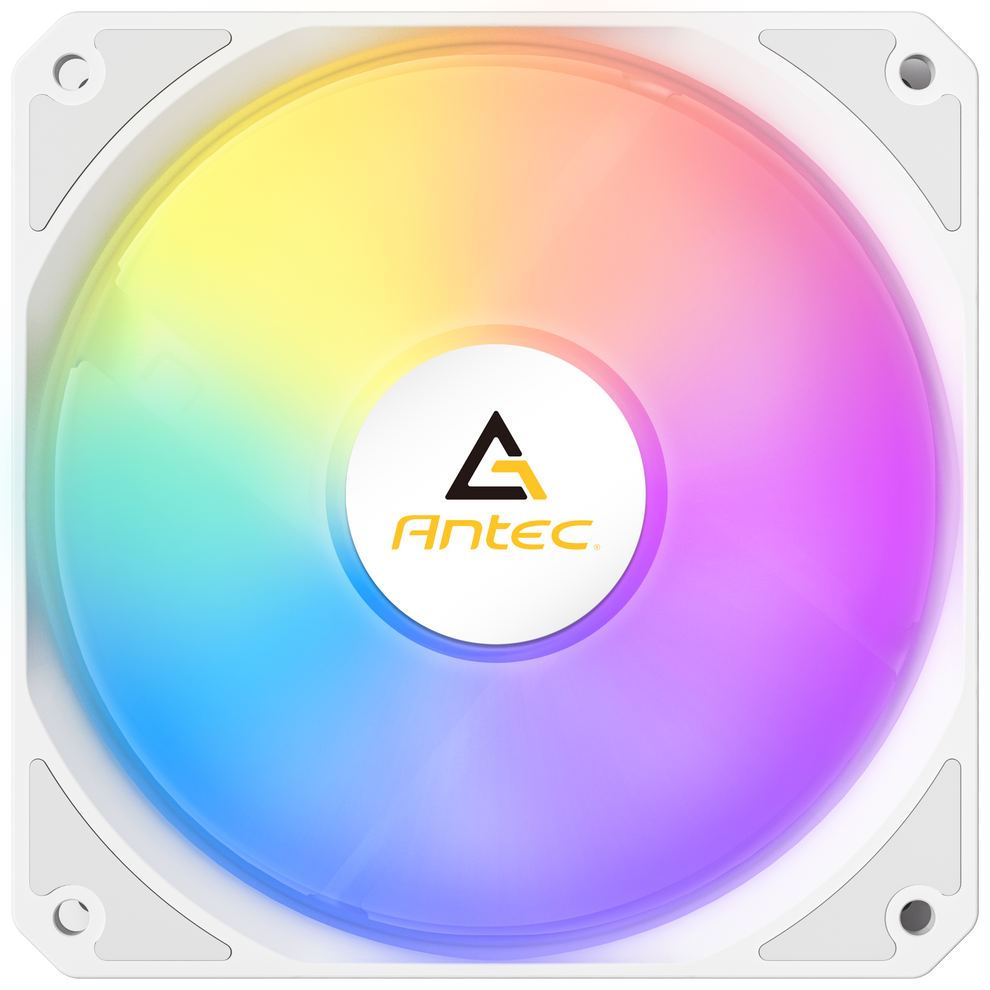

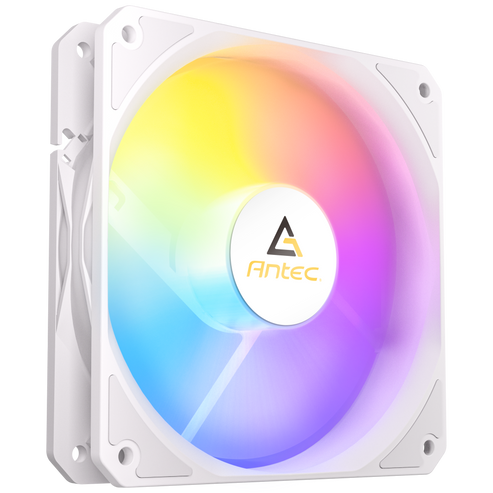

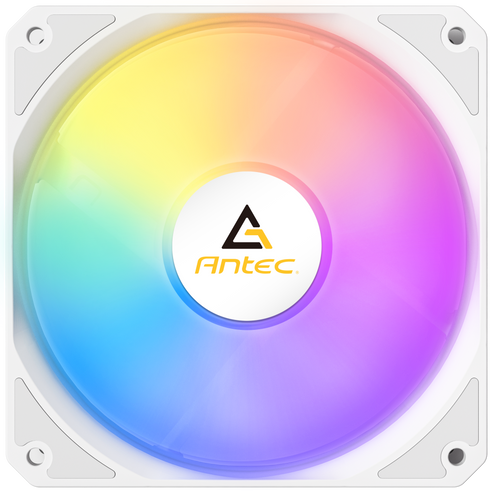

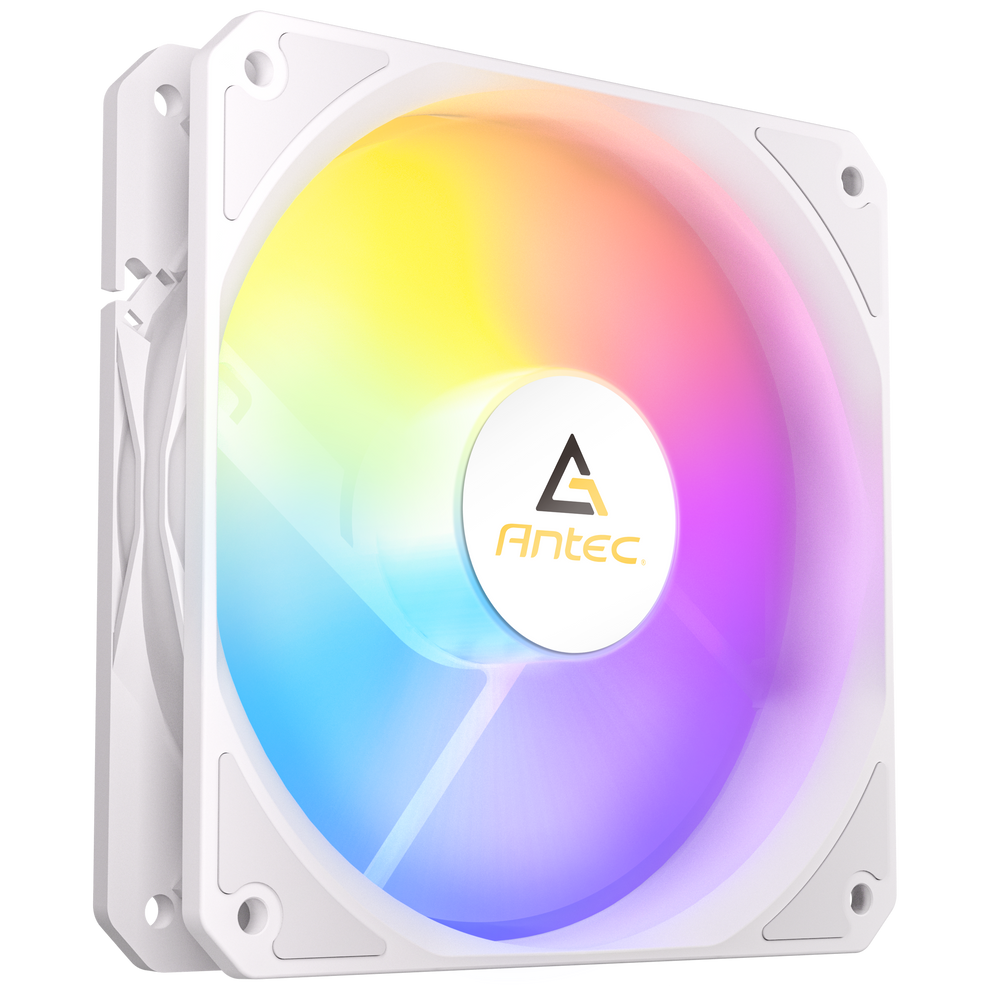

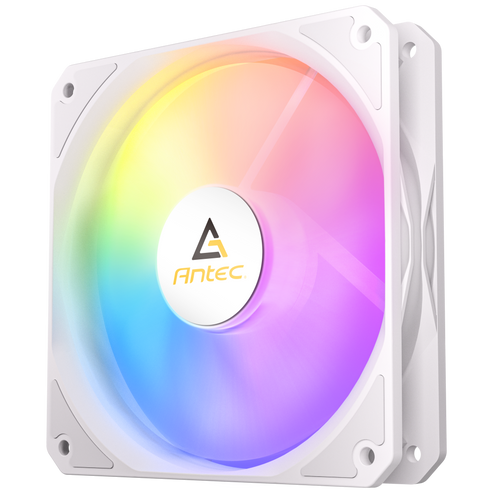

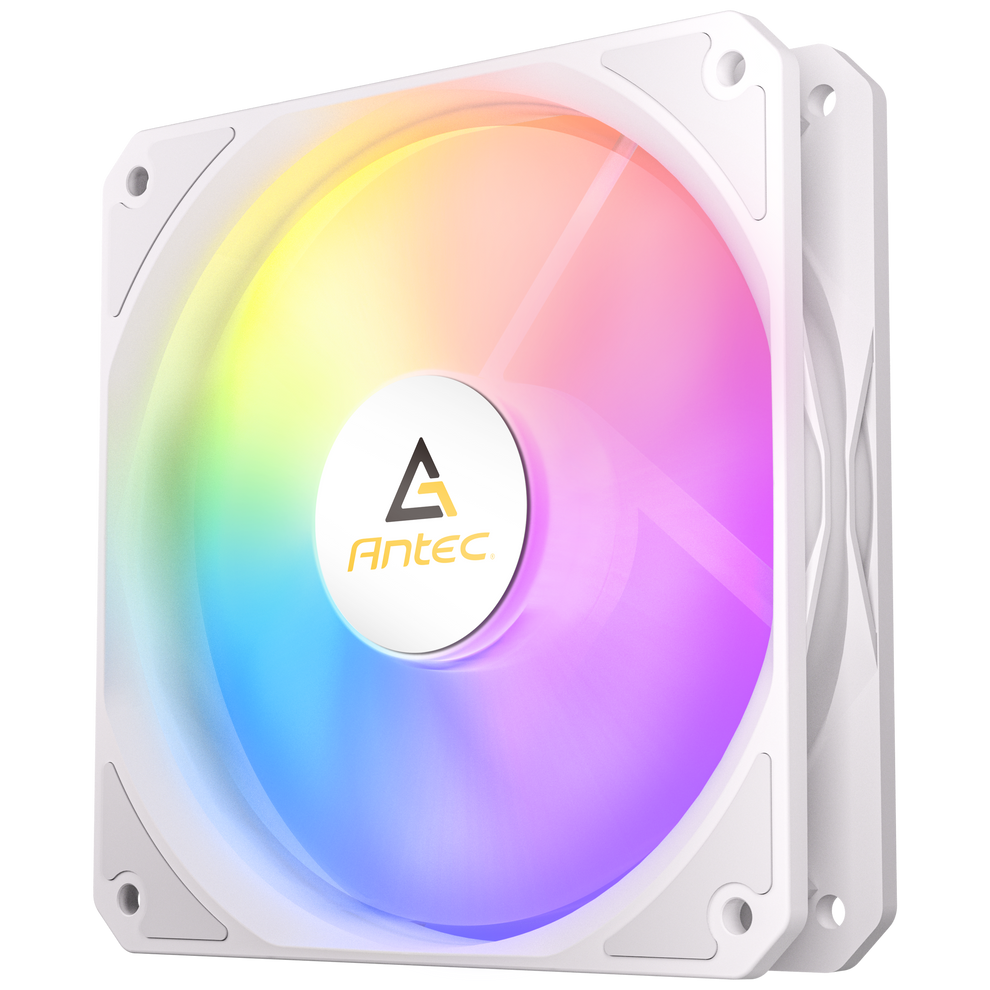

- Bright ARGB
Full-spectrum ARGB lighting delivers distinctive visions to meet every need of gamers.
- PWM Fan
From low noise to high performance, tune your perfect fan curve between 240 - 1350 RPM.
Specifications
Specifications
Model Name
P12R ARGB / P12R ARGB White
Fan Type
ARGB PWM Fan

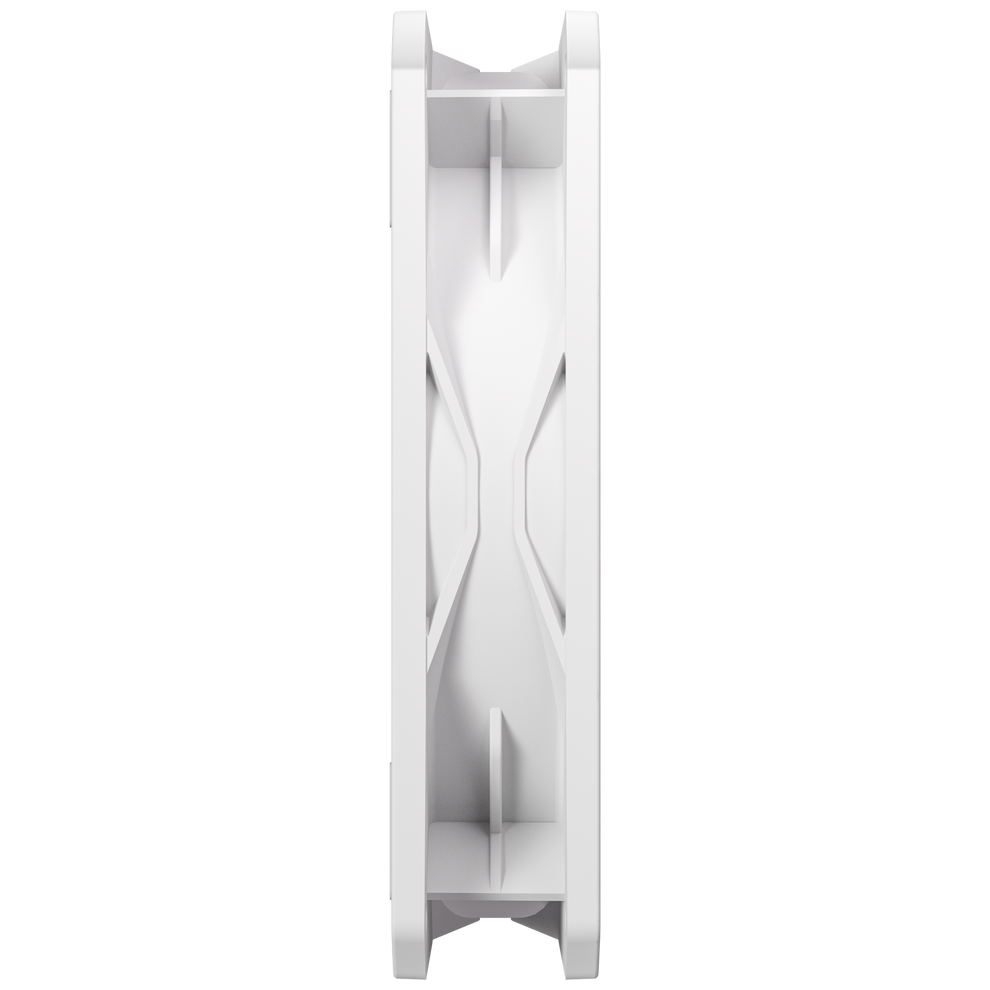

Dimensions
120 x 120 x 25 mm
Bearing Type
Hydraulic Bearing
Fan Speed
600±100 ~ 1500±150 RPM
Airflow
55.31 ~ 61.46 CFM (Max.)
Air Pressure
0.87 ~ 1.07 mmH₂O (Max.)
Fan Noise Level
14.2 ~ 29.5 dB(A)
Lifespan
30,000 hours @ 40°C / 40,000 hours @ 25°C
Connector
- Fan: 4-pin
- LED: 3-pin

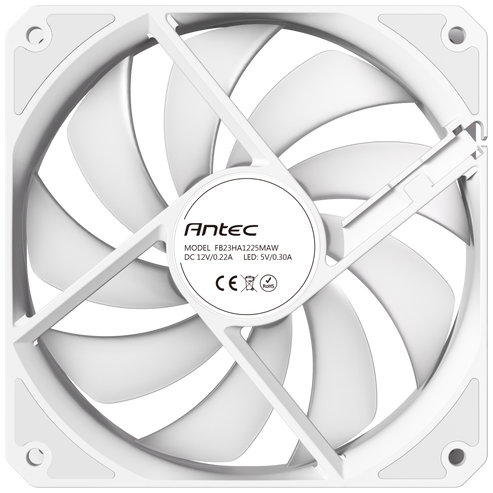

Rated Voltage
- Fan: DC 12V
- LED: DC 5V
Operation Voltage
Fan: DC 7.0 – 13.8V
Rated Current
- Fan: 0.15A (0.22A Max.)
- LED: 0.3A
Warranty
1 Year
UPC
- 0-761345-40034-3 P12R PWM ARGB
- 0-761345-40042-8 P12R PWM ARGB White
Downloads
For additional support, please visit our support page or contact us.
