Product Features
-

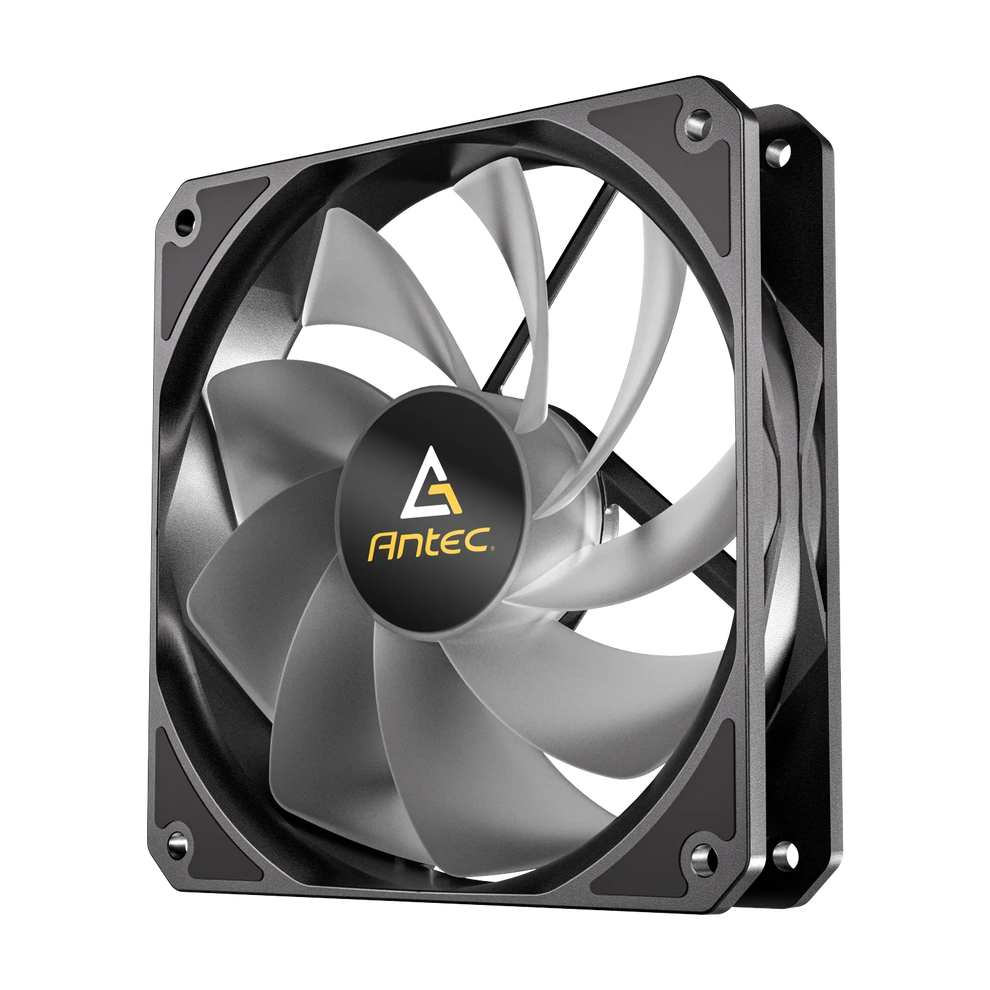

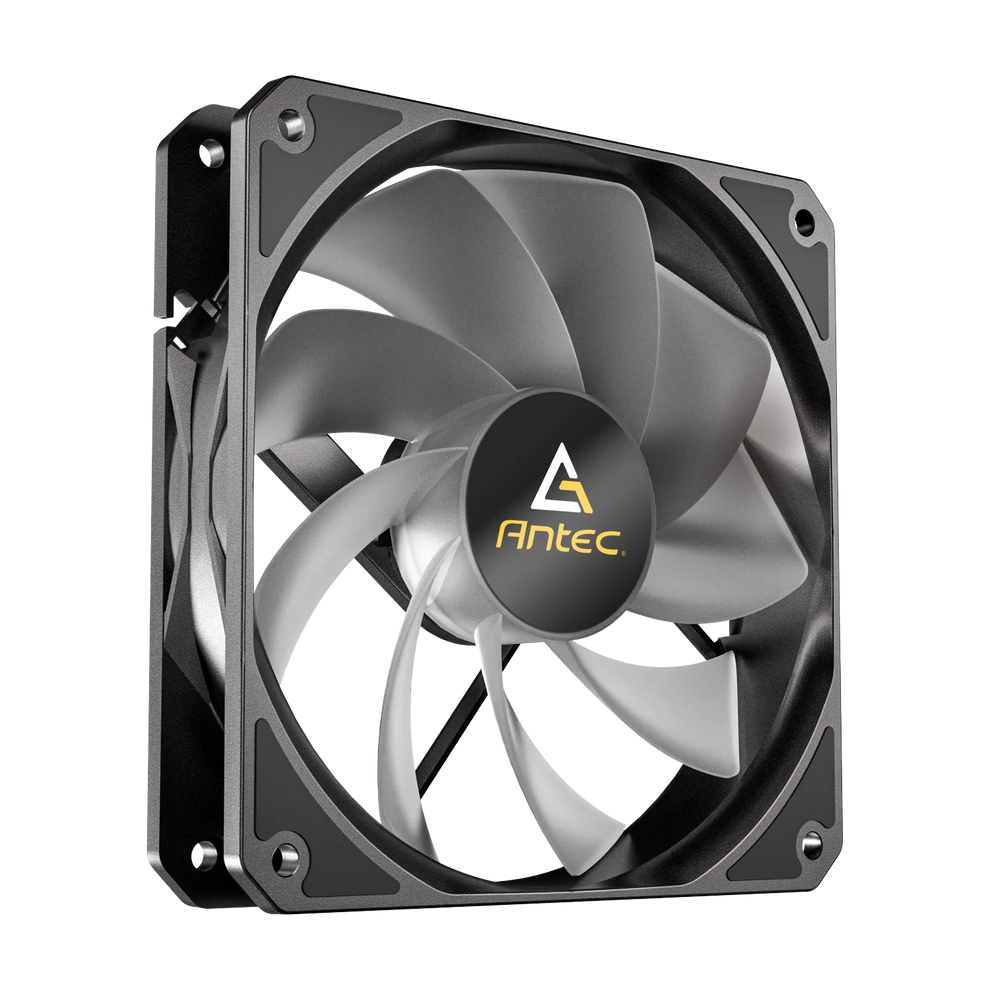

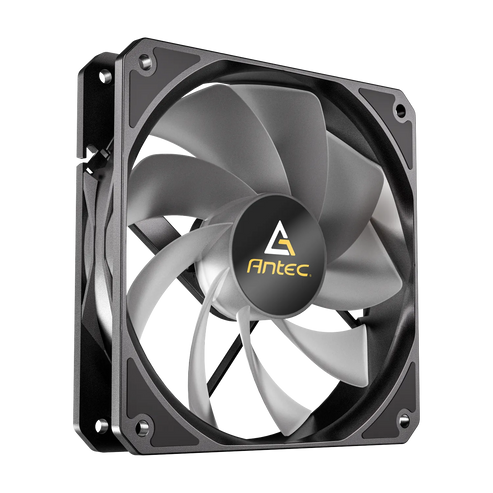

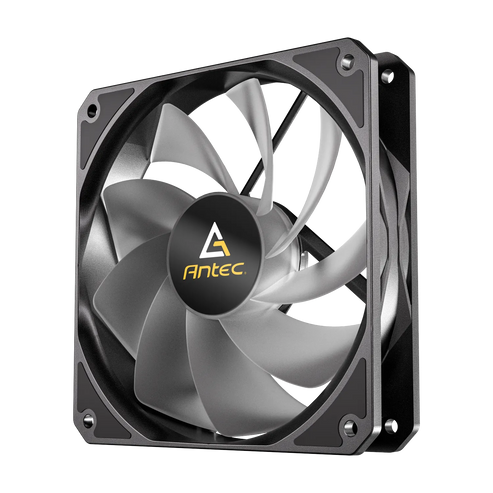

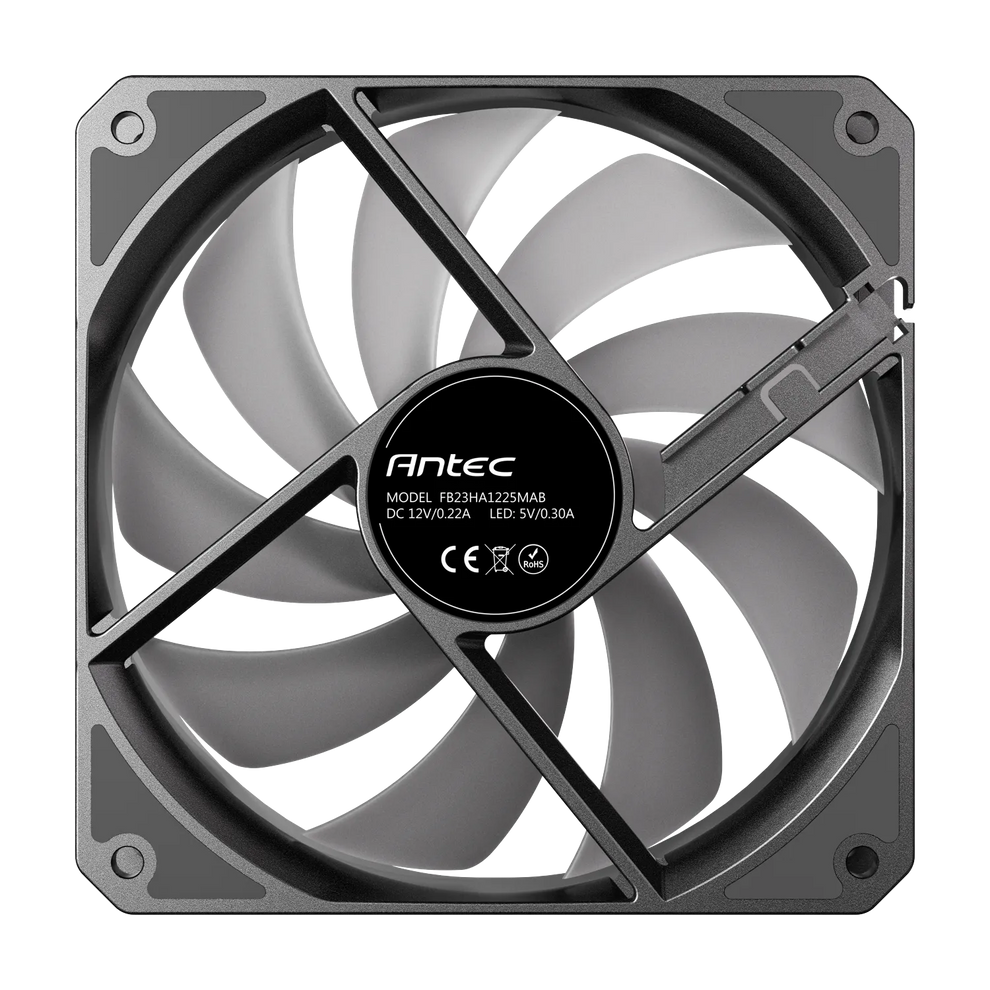

Reverse Fan Blade Design
Provides smoother air intake with a cleaner look.
-
Superior Heat Dissipation
9-blade design provides efficient ventilation and powerful airflow, ensuring the fan maintains extremely efficient cooling level even as air resistance increases.
-

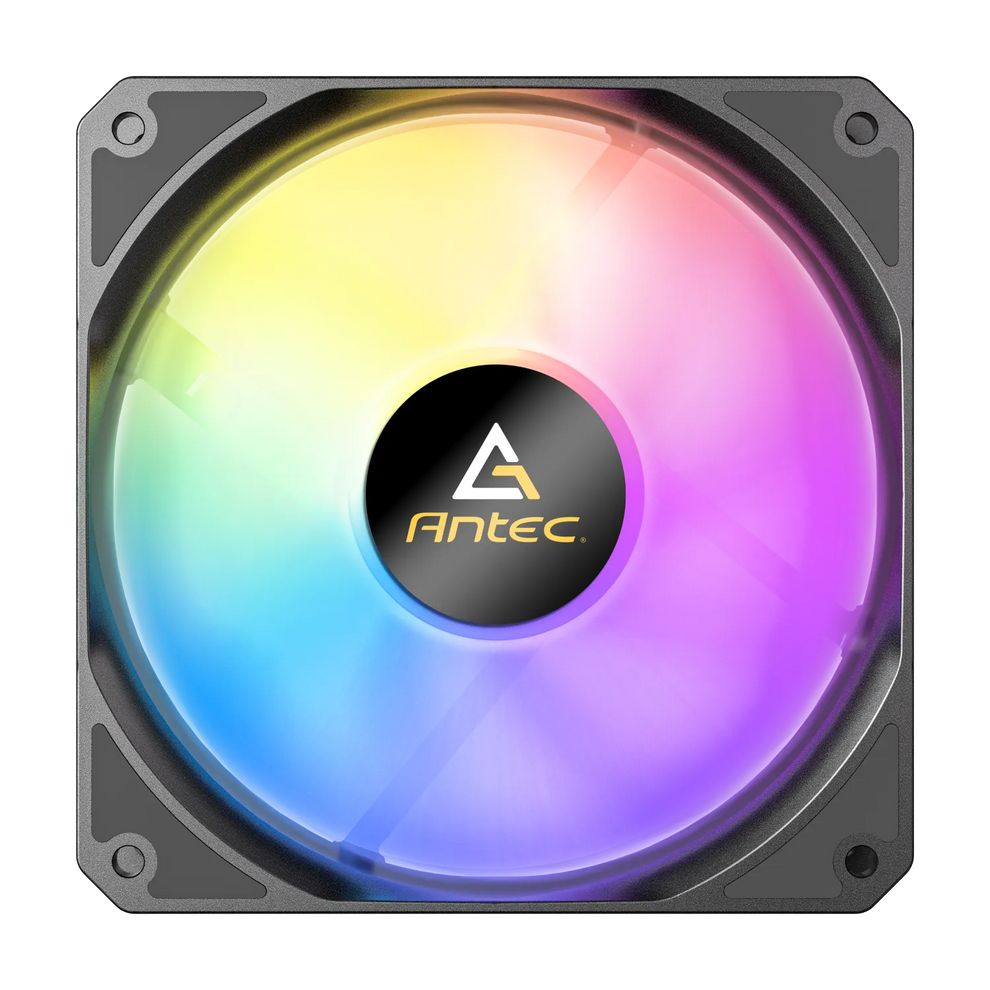

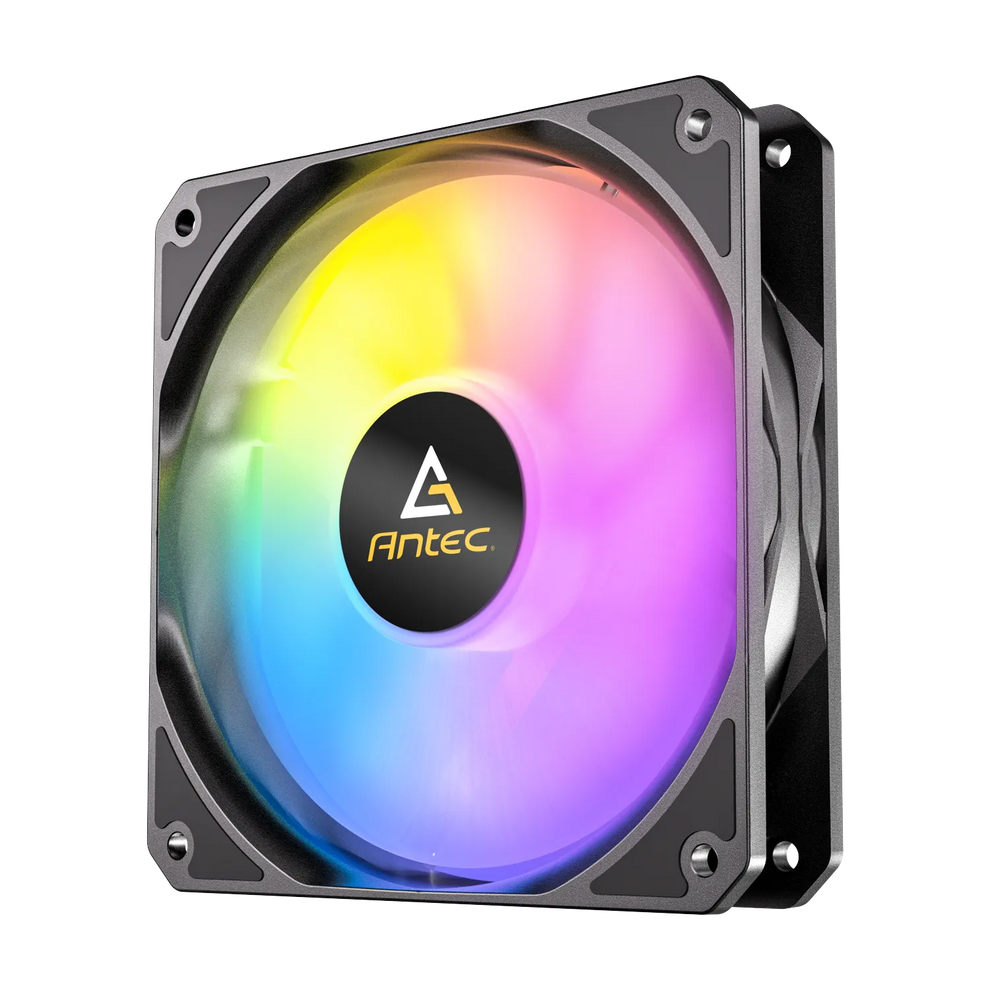

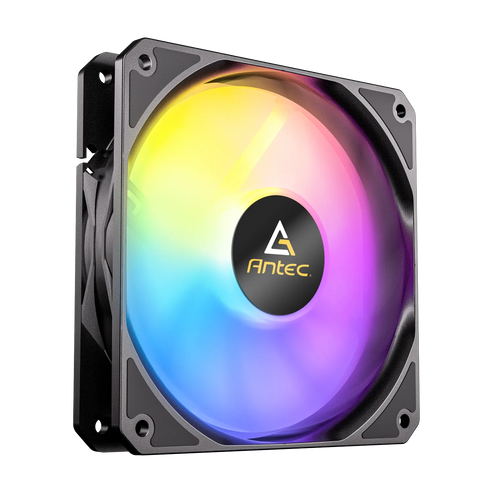

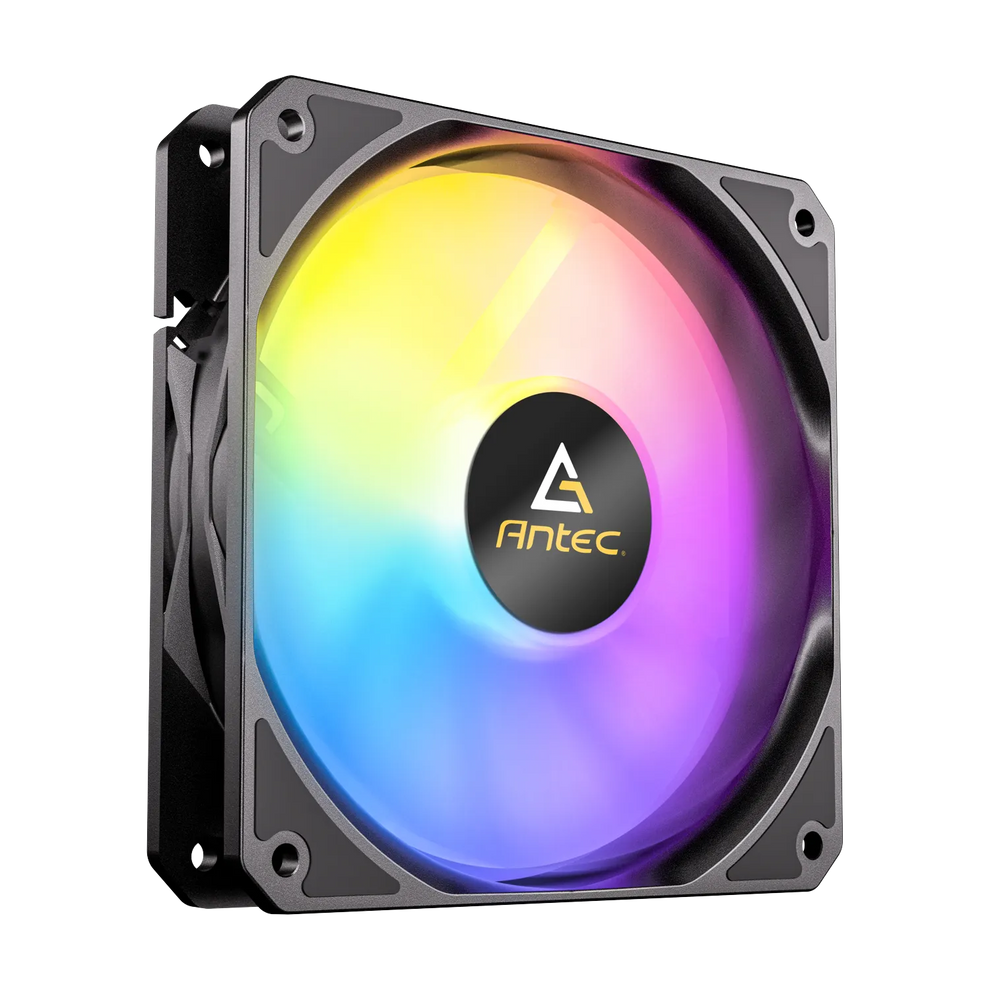

Bright ARGB
Full-spectrum ARGB lighting delivers distinctive visions to meet every need of gamers.
-
PWM Fan
From low noise to high performance, tune your perfect fan curve between 240 - 1350 RPM.
-
Quiet Operation
Eight anti-vibration pads and a hydraulic bearing fan provide long-lasting, near-silent operation.
-
Individual Cables
This product includes a 3-pin ARGB connector, as well as a 4-pin PWM connector.
Specifications
Fan Type
ARGB PWM Fan

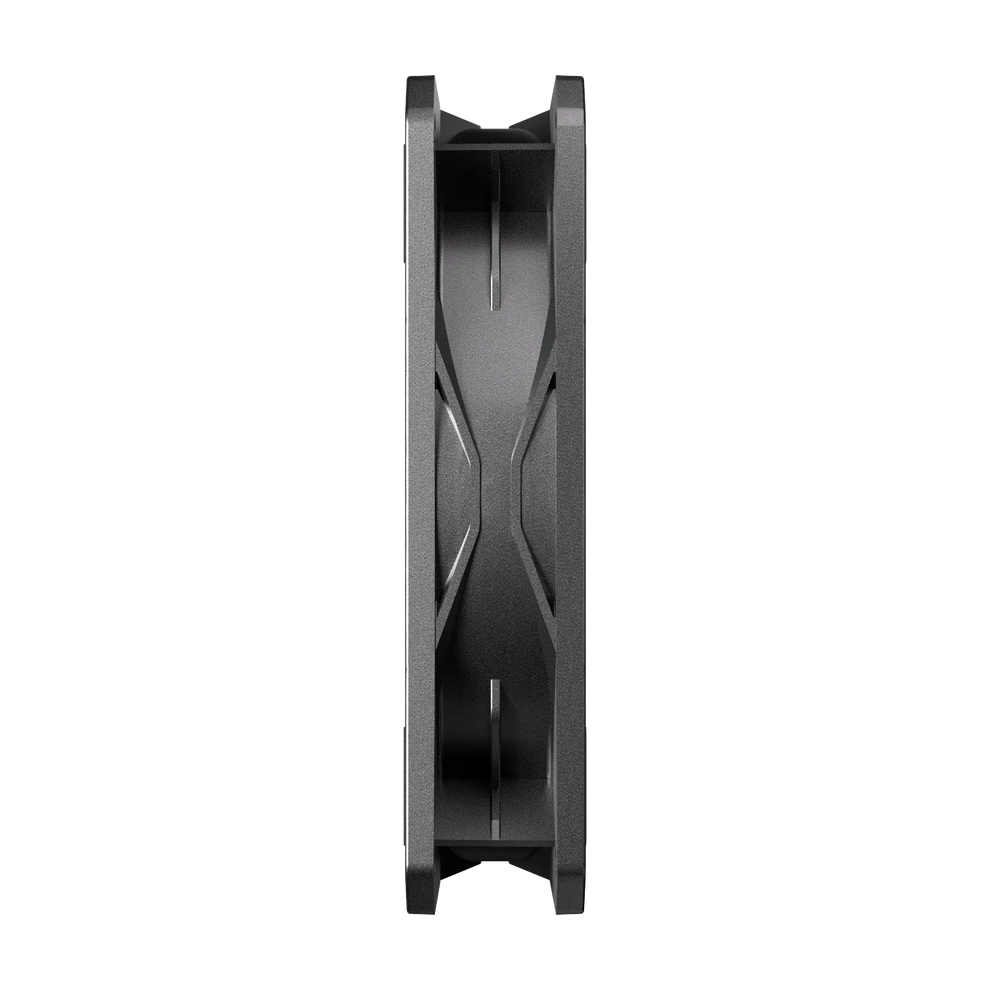

Fan Dimensions
120 x 120 x 25mm
Bearing Type
Hydraulic Bearing
Fan Speed
600±100~1500±150 RPM
Airflow
55.31~61.46 CFM (max.)
Air Pressure
0.87~1.07 mmH₂O (max.)
Noise
14.2~29.5 dB(A)
Lifespan
- 30,000 hours / 40℃
- 40,000 hours / 25℃
Connector
- Fan: 4 pin
- LED: 3-pin
Rated Voltage
- Fan: DC 12 V
- LED: DC 5 V
Operation Voltage
- Fan: DC 7.0-13.8V
Rated Current
- Fan: 0.15 A (0.22A(max.))
- LED: 0.3 A
Warranty
1 year
UPC#
- 0-761345-40034-3 P12R PWM ARGB
- 0-761345-40042-8 P12R PWM ARGB White
