- Extreme Lighting Effects

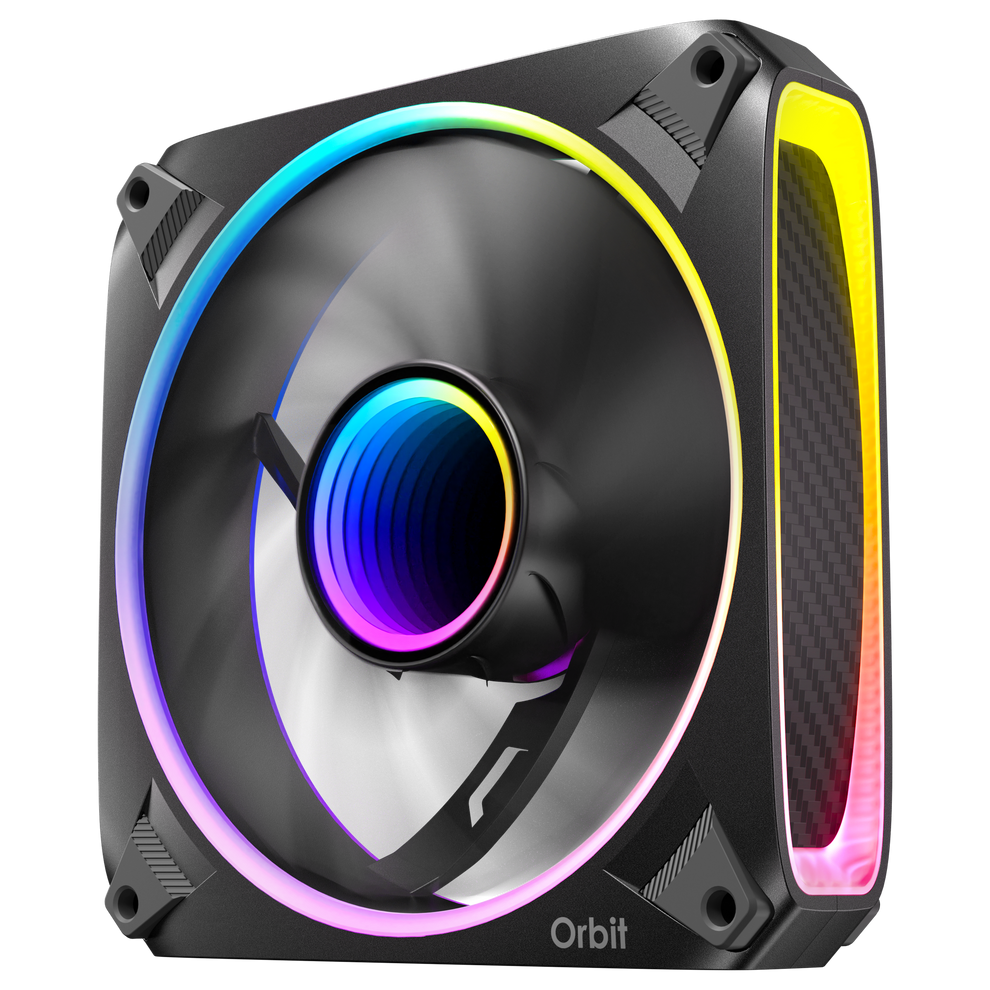

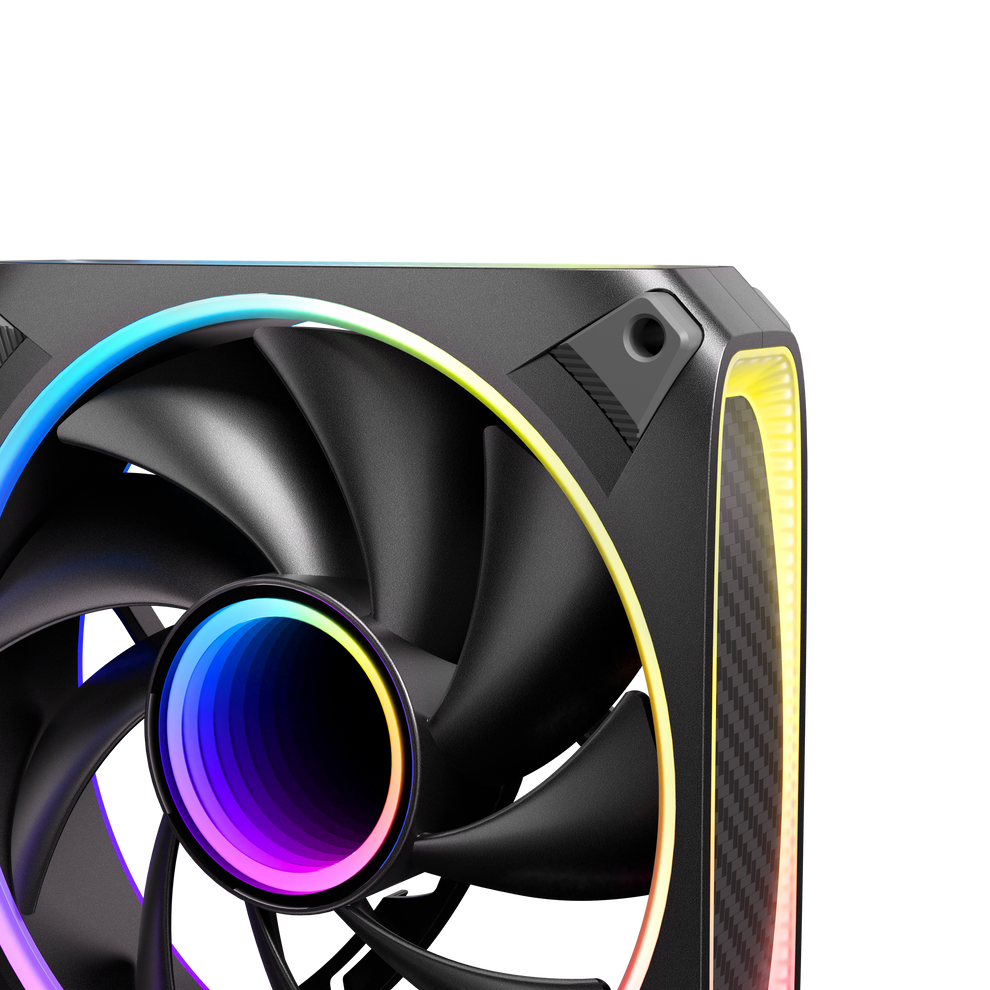

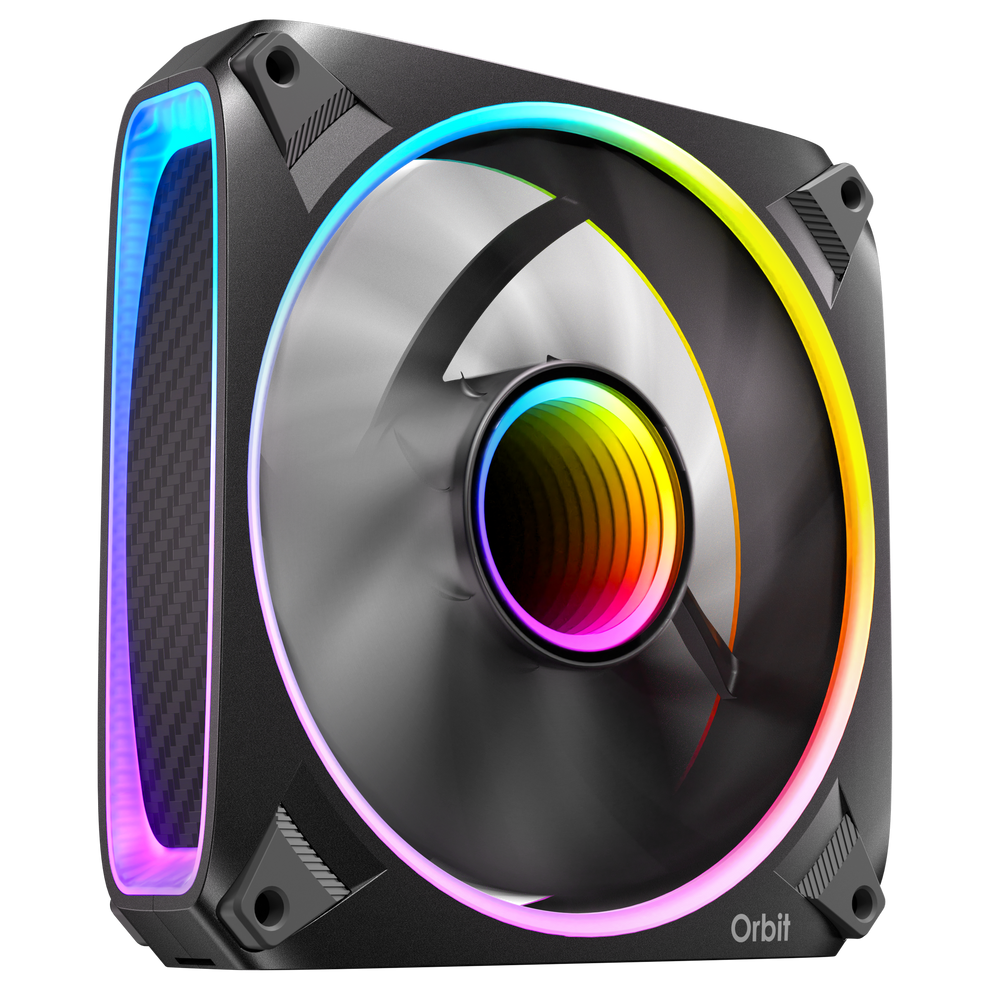

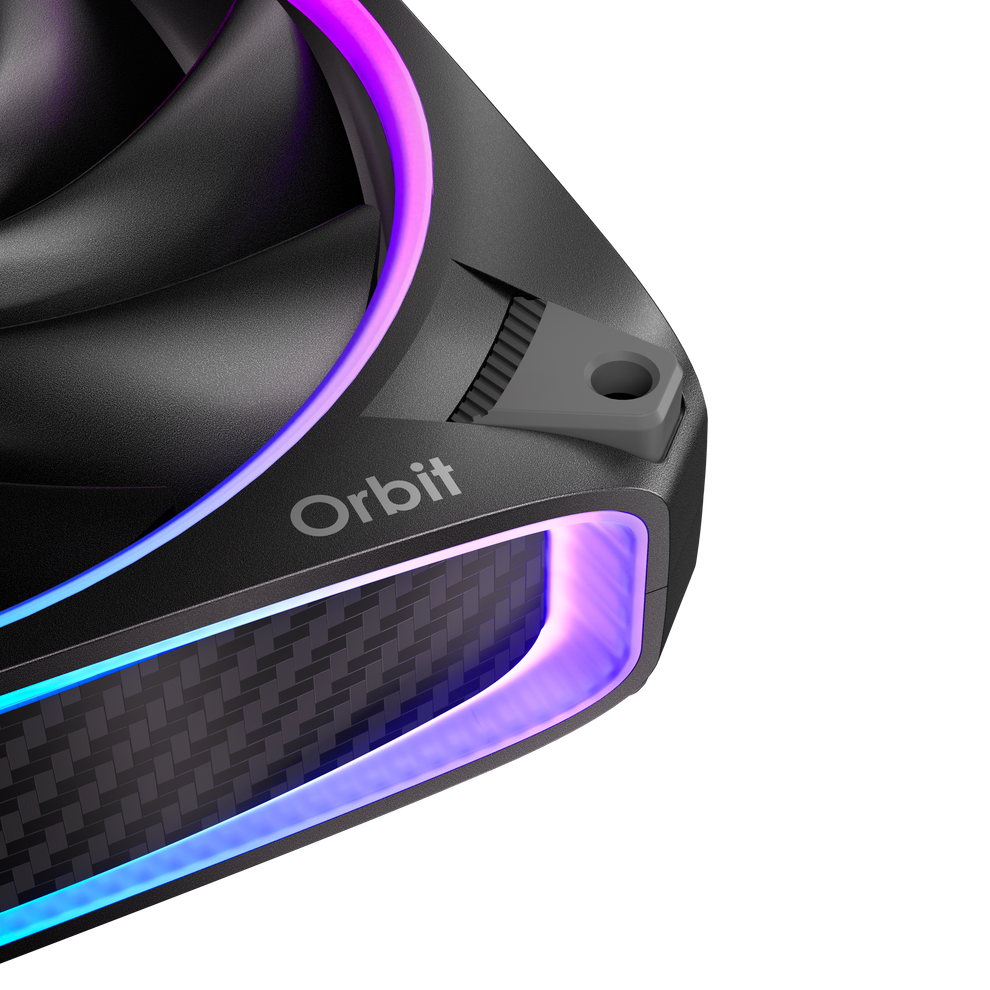

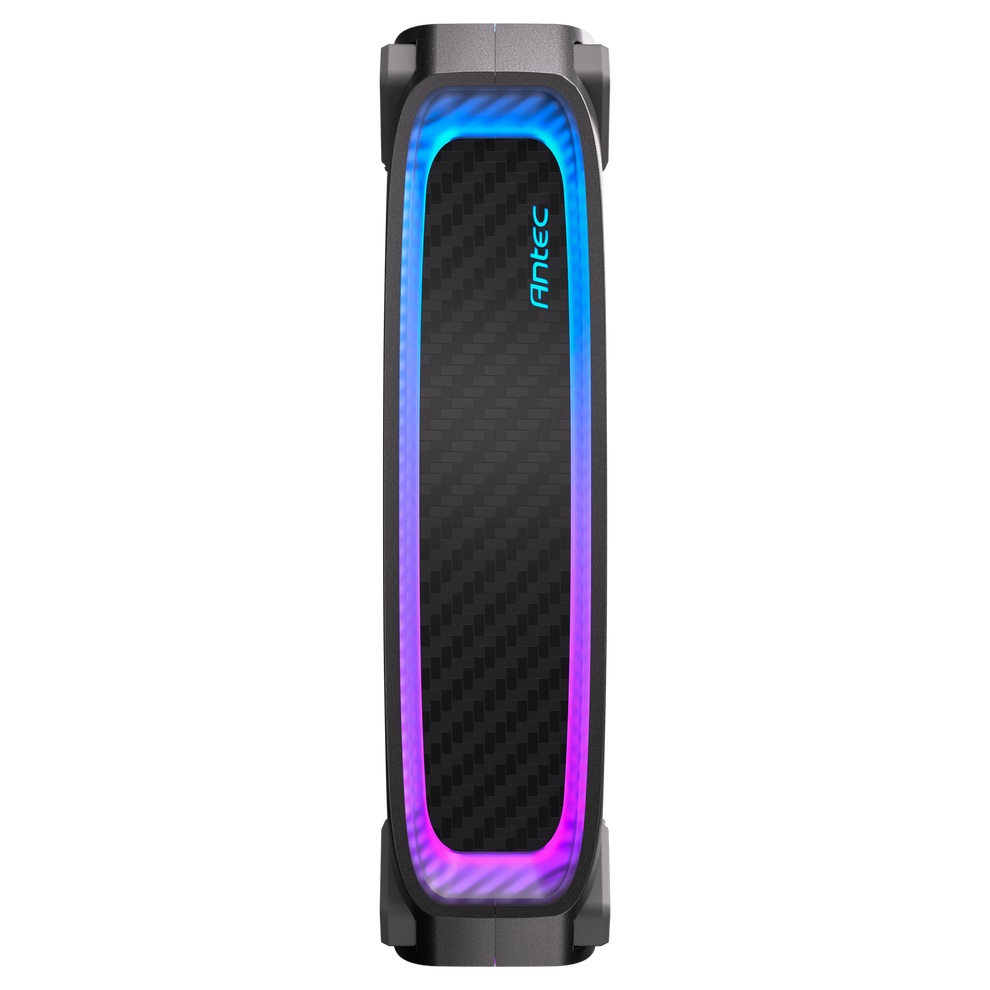

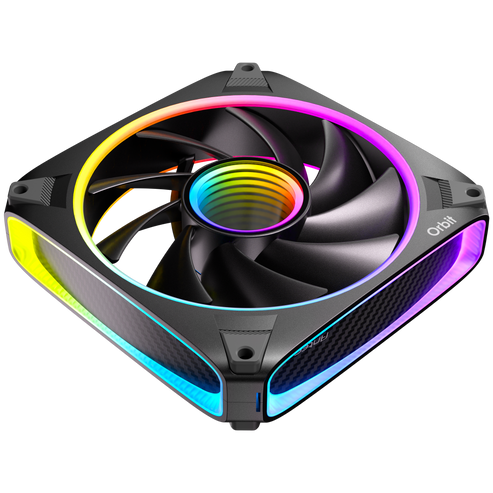

The front and rear covers of the fan feature a curved surface design. Combined with the infinity mirror effect at the centre of the blades, it evokes the image of a miniature interstellar portal like a wormhole.

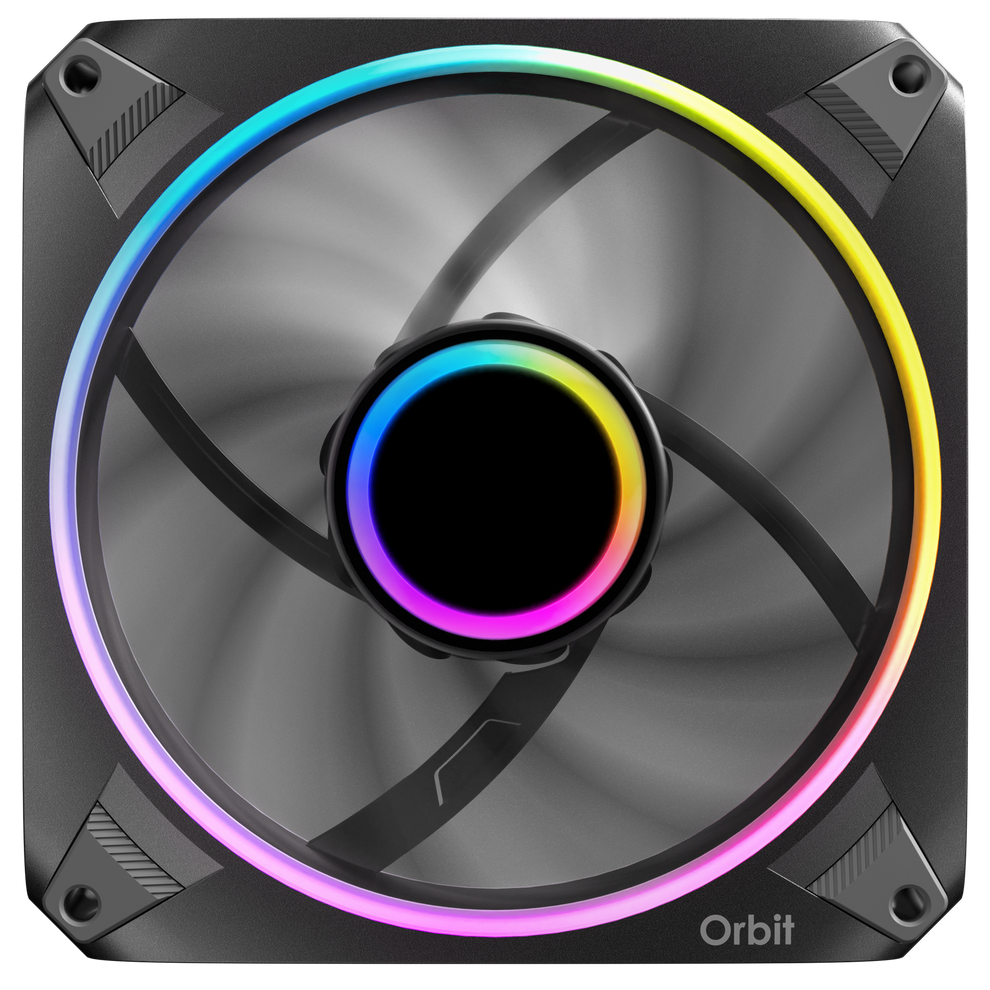

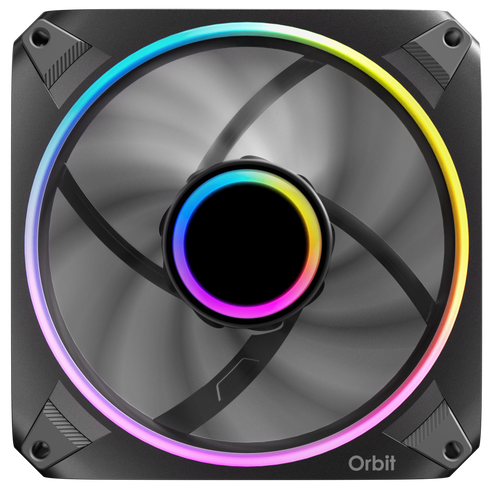

- Dual Ring Design
- Intelligent PWM Control
With intelligent fan control, the system ensures optimal cooling under high loads and complete silence at low loads. When PWM duty cycle drops below 6% in standby mode, the fan automatically stops through chip-based regulation, achieving ultra-silent operation.
- 28mm Thickness for Enhanced Performance
Increasing the thickness to 28mm widens the contact surface and increases the air inlet area between the fan and the chassis, delivering improved airflow.

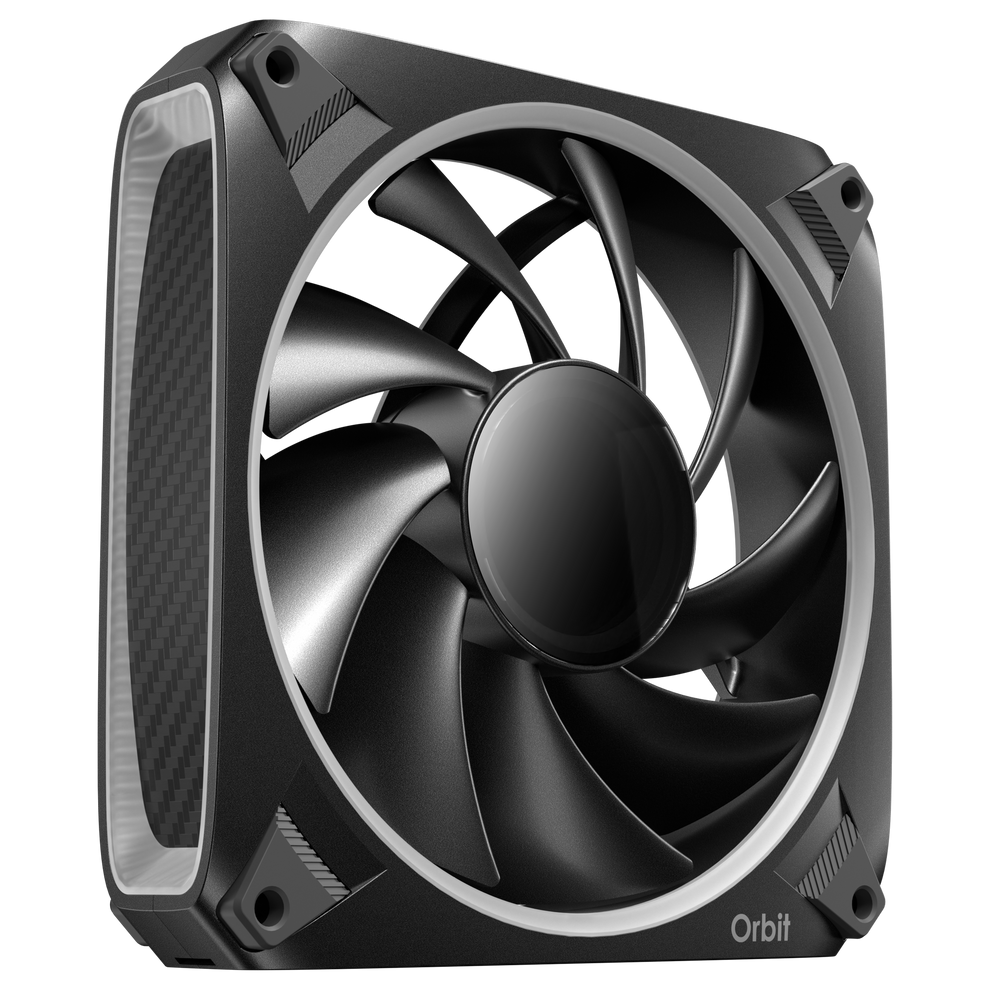

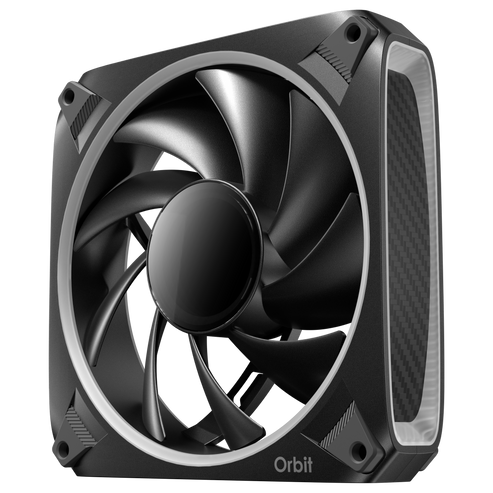

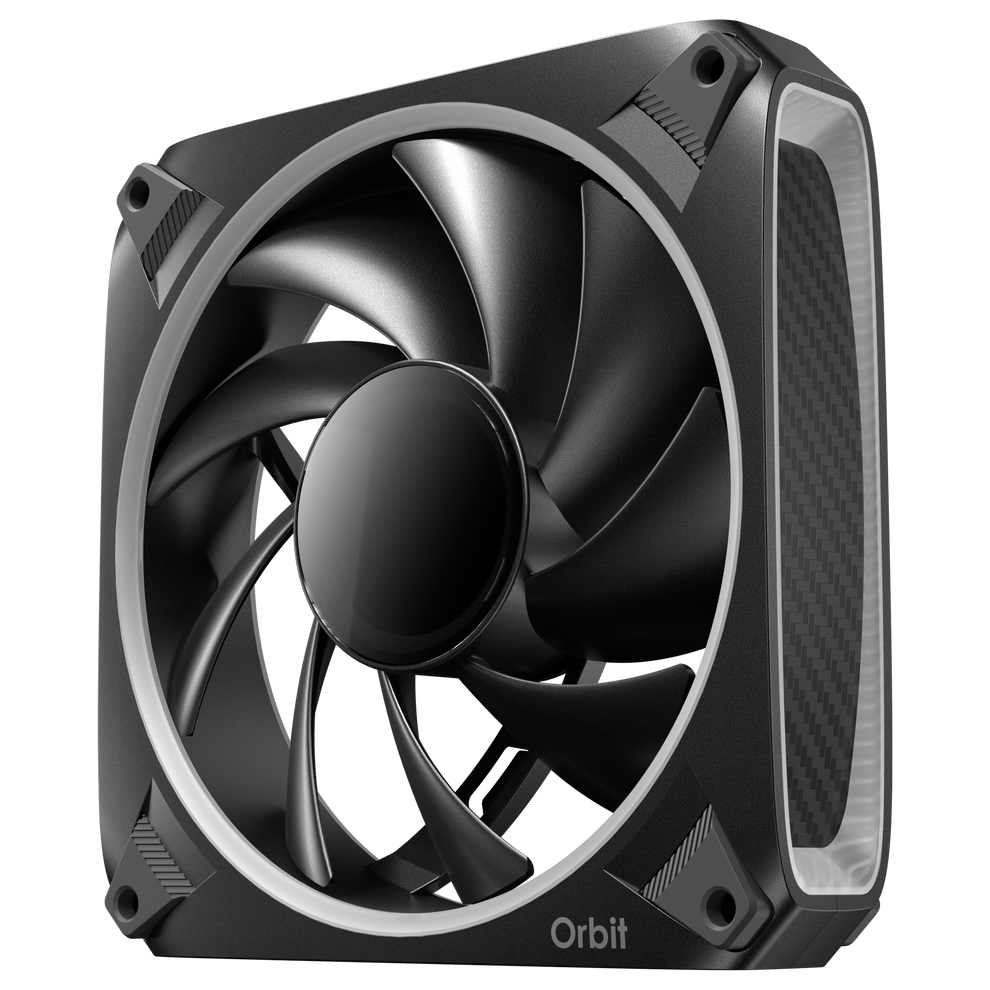

- 9 Fan Blade design
The 9-blade design increases airflow, providing better cooling performance.
- Fluid Dynamic Bearing for Longer Life and Reduced Noise
FDB bearing achieves optimal longevity while also enhancing anti-vibration, ensuring quieter and more stable operation.
- Vibration-Absorbing & Anti-Noise Pads

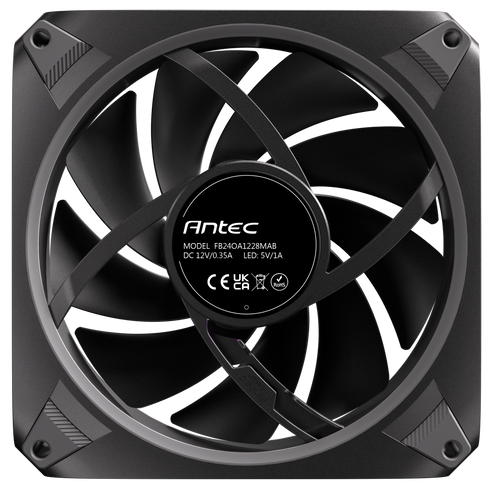

Equipped with 8 rubber pads, effectively absorbing vibrations and minimizing noise. Also features diagonal patterns, ensuring a cohesive overall design.
Specifications
Specifications
Model Name
Orbit 120 ARGB
Fan Type
ARGB Fan
Dimensions
120 x 120 x 28 mm
Bearing Type
FDB
Fan Speed
200 – 2000 ±10% RPM
Airflow
0.48 – 66.72 ±5% CFM
Air Pressure
0.02 – 2.06 ±5% mmH₂O
Fan Noise Level
18 – 31 ±5% dB(A)
Lifespan
50,000 hours @ 40°C
Connector
FAN: 4-pin | LED: 3-pin
Rated Voltage
FAN: DC 12V | LED: DC 5V
Operation Voltage
FAN: DC 6.0 – 13.2V | LED: DC 3.7 – 5.5V
Rated Current
FAN: 0.35A | LED: 1A
