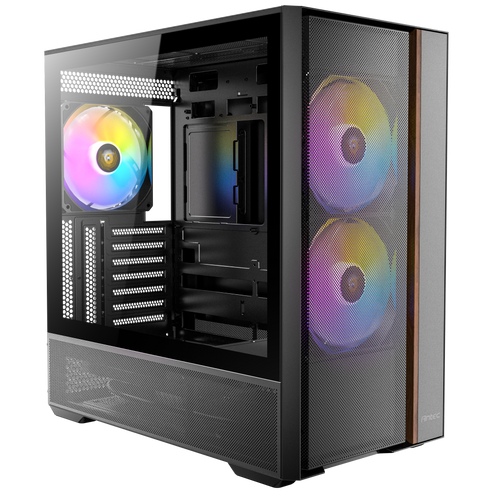

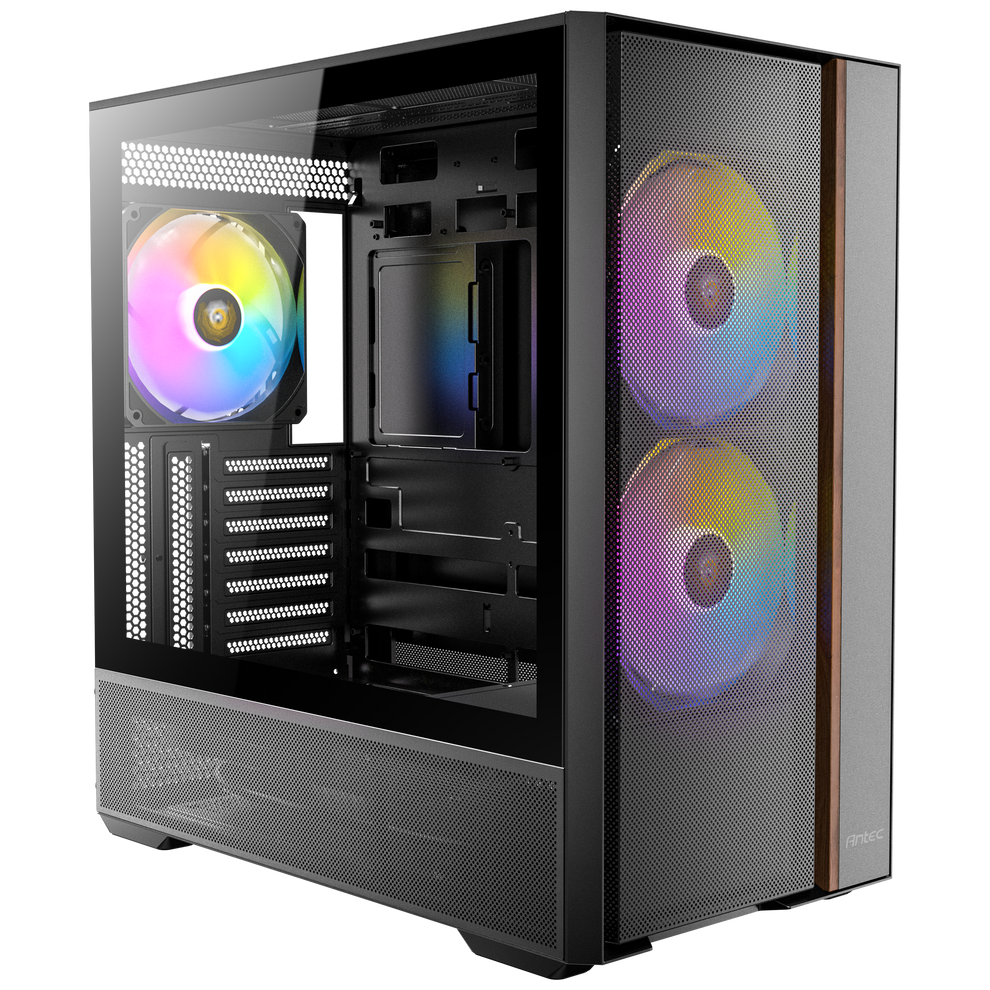

Flow Luxury
F-LUX Platform, abbreviation of Flow Luxury, features ultra case structure design for excellent airflow and 5 fans included, delivering enhanced GPU cooling performance.
- Flux Airflow
Multi-directional vent design, featuring extensive air intakes at the bottom, power supply chamber and lower sides, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.
- Pre-Installed 5 x High-Performance PWM Fans
- Flux Vertical Cooling
Designed with a front-mounted PSU chamber, this layout opens up space for improved airflow at the bottom of the case, enhancing heat dissipation around the graphics card.
- Flux Horizontal Cooling
Air intake via the front mesh provides a smooth venting channel throughout the case.
- Optimized Chassis Design
The recessed front design enhances airflow while minimizing noise for better thermal and acoustic performance.
- Supports 360mm water cooling at the top
Supports 140mm rear fan installation with radiator thickness ≤ 55mm.
Supports 120mm rear fan installation with radiator thickness between 55–70mm.
- Bottom air intake optimization
The front-mounted PSU chamber preserves an open, spacious airflow path at the bottom that is free of hard drives, enabling efficient, direct cooling of the GPU through reverse fans.
- Premium Wood
The front panel is crafted with a combination of metal mesh and premium wood to create a high-quality texture.
- Built-in GPU Bracket
Includes a support bracket compatible with high-performance graphics cards.
- Support Back-Connect Motherboards
Plug in cables from behind to give front a cleaner look and a smoother airflow channel.
- Tool-Free Panel Design
- Front-Mounted PSU Chamber & 13A extension cable
The front-mounted PSU chamber improves airflow by freeing up internal space, while the included 13A extension cable ensures stable power delivery for high-wattage PSUs.
- Cable Management
Equipped with grommets and Velcro straps for easy, secure cable management, enhancing airflow and creating a cleaner look.
Specifications
Specifications
Dimensions
460 x 240 x 460mm
Form Factor
Mid Tower
Materials
Steel + Plastic + Wood
Mainboard Support
ATX, Micro-ATX, ITX
Front Access & Controls
- Power
- Reset
- USB 3.0 x 2
- Type-C 3.2 Gen 2 (10Gbps) x 1
- Headphone/Mic Combo Jack
Side Panel
4mm Tempered Glass
Expansion Slots
7
Drive Bays (3.5")
1
Drive Bays (2.5")
2
Fan Support - Front
2 x 140mm
Fan Support - Top
3 x 120mm / 2 x 140mm
Fan Support - Power Supply Shroud
2 x 120mm
Fan Support - Rear
1 x 120mm / 1 x 140mm
Included Fan(s)
- 2 x 140mm ARGB PWM fans (front)
- 2 x 120mm PWM reverse fans (PSU shroud)
- 1 x 140mm ARGB PWM fan (rear)
Radiator Support - Top
120 / 140 / 240 / 280 / 360mm
Radiator Support - Rear
120mm
Max GPU Length
≤ 400mm
Max CPU Cooler Height
≤ 180mm
Max PSU Length
≤ 170mm (without cable)
Dust Filter
Bottom
Net Weight
8.18 Kg
Gross Weight
9.72 Kg
Warranty
2 Years
UPC
0-761345-10241-4
