- Flow Luxury
F-LUX Platform, abbreviation of Flow Luxury, features ultra case structure design for excellent airflow and 6 fans included, delivering enhanced GPU cooling performance.
- Flux Airflow

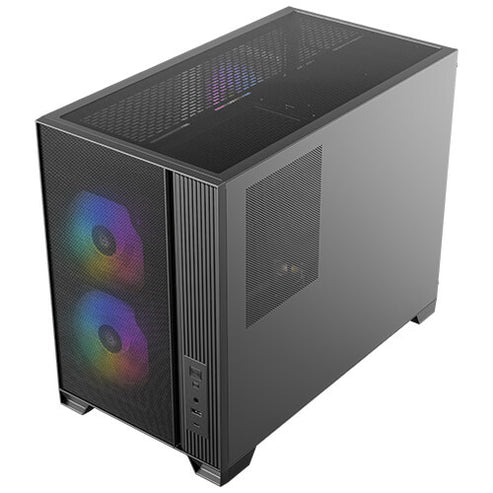

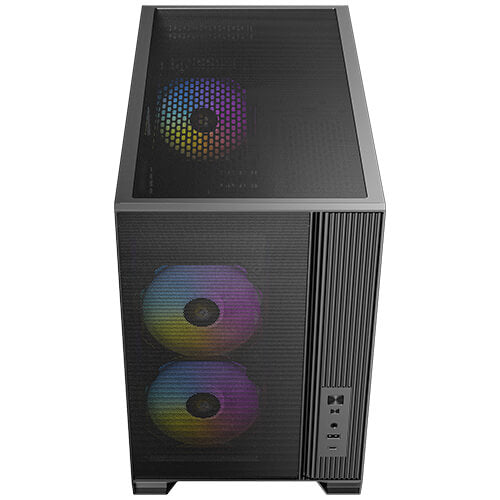

Multi-directional vent design, featuring extensive air intakes at the front and bottom, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.

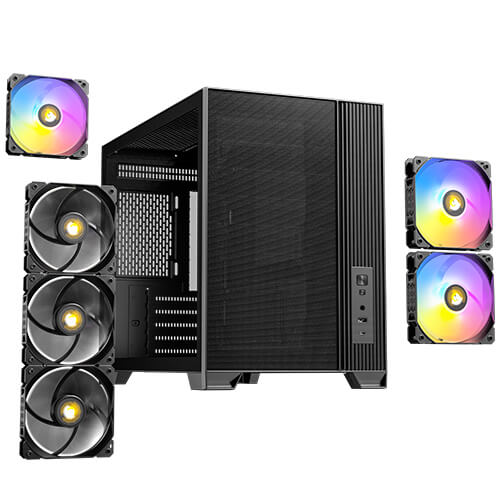

- Pre-Installed 6 x High-Performance PWM Fans

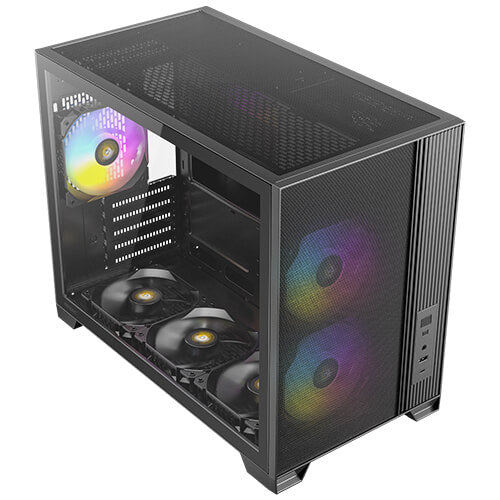

- Flux Vertical Cooling

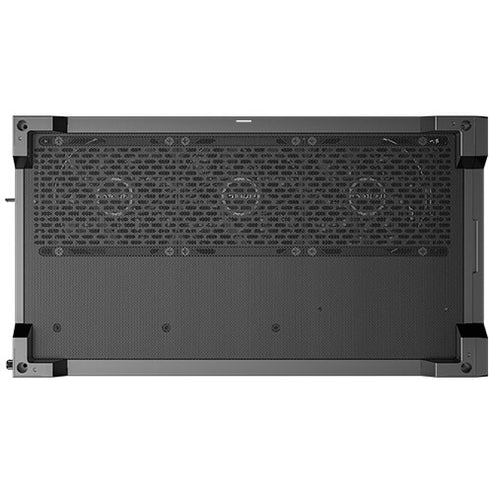

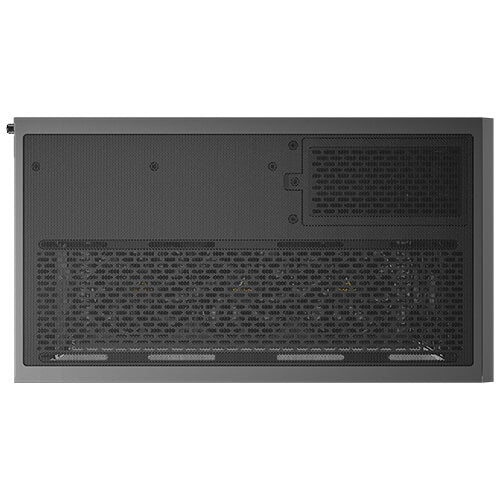

A large bottom mesh panel boosts airflow, enhancing cooling efficiency around the graphics card.
- Flux Horizontal Cooling

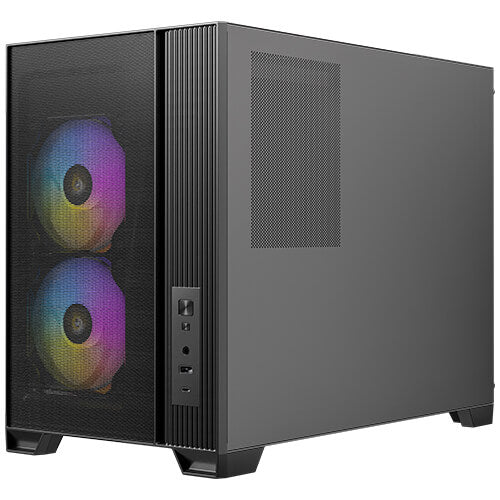

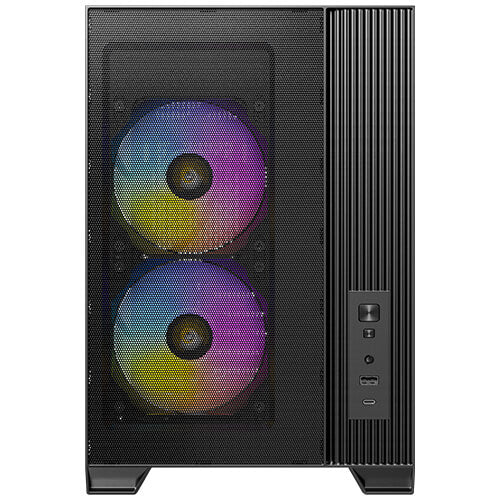

Air intake via the front mesh provides a smooth venting channel throughout the case.
- Supports 360mm water cooling at the top

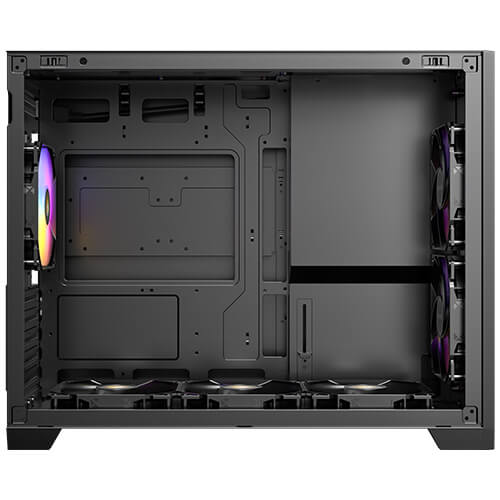

- Bottom air intake optimization

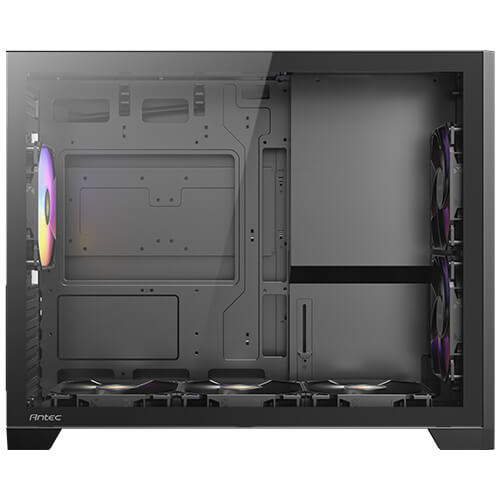

The large bottom intake increases airflow, with about 20mm clearance between the bottom fans and the GPU, allowing reverse fans to efficiently and directly cool the GPU.
- Built-in GPU Bracket
Includes a support bracket compatible with high-performance graphics cards.
- TOOL-FREE PANEL DESIGN
- Front-Mounted PSU Chamber &13A extension cable
The front-mounted PSU chamber improves airflow by freeing up internal space, while the included 13A extension cable ensures stable power delivery for high-wattage PSUs.

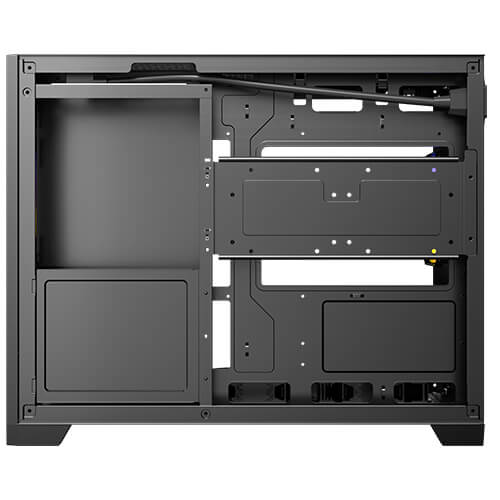

- CABLE MANAGEMENT
Cable management space behind the motherboard provides up to 59mm at the front and 49mm at the rear.
Specifications
Specifications
Dimensions
459 x 247 x 365mm (DWH)
Form Factor
Compact MicroATX
Materials
Steel + Plastic
Mainboard Support
Micro-ATX, ITX

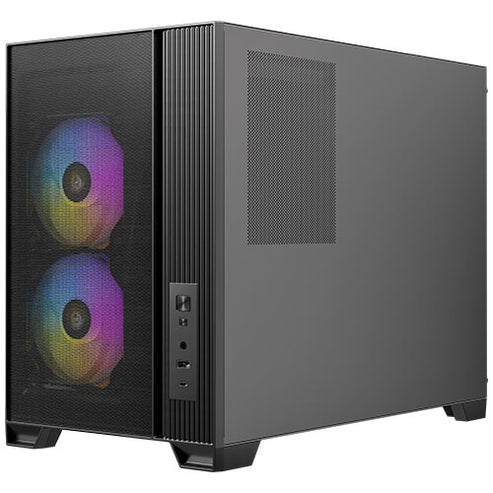

Front Access & Controls
- Power
- Reset
- USB 3.0 x 1
- Type-C 3.2 Gen 2 (10Gbps) x 1
- Headphone/Mic Combo Jack
Side Panel
3mm Tempered Glass

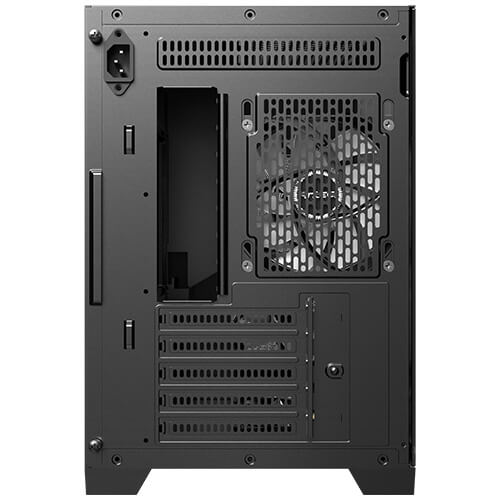

Expansion Slots
5
Drive Bays (3.5" / 2.5")
2 / 2
Fan Support - Front
2 x 120mm
Fan Support - Top
3 x 120mm
Fan Support - Bottom
3 x 120mm
Fan Support - Rear
1 x 120mm
Included Fan(s)
- 2 x 120mm ARGB PWM fans (front)
- 3 x 120mm PWM reverse fans (bottom)
- 1 x 120mm ARGB PWM fan (rear)
Radiator Support - Top
120 / 240 / 360mm
Radiator Support - Rear
120mm
Max GPU Length
≤ 405mm
Max CPU Cooler Height
≤ 175mm
Max PSU Length
≤ 160mm (cable not included)
Dust Filter
Top / Bottom
Net Weight
6.35 Kg
Gross Weight
7.41 Kg
Warranty
2 Years
UPC
0-761345-10253-7
