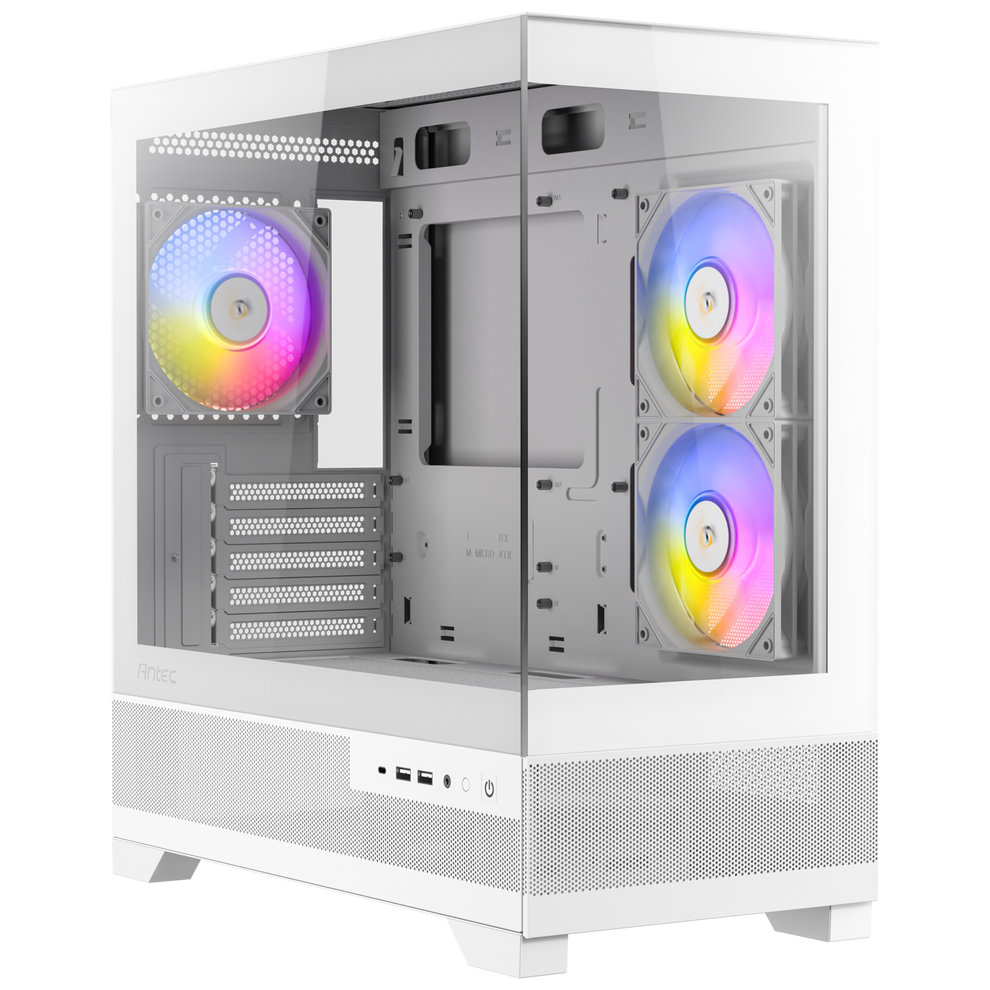

- Panoramic 270° View
Standing out with full-view design on the seamless steel-tempered glass, CX500M ARGB's left and front panel offer an unobstructed view of your build, creating a stunning showcase for your components.
- Vertical Cooling with Massive Air Intake
Bottom-up vertical airflow via mesh on lower front, lower left, and right side accelerates the heat dissipation.
- Tool-Free Panels
Front and side panel adopt fixing stud design, which makes assembly and disassembly easier and helps avoid possible glass breakage.
- Pre-Installed 3 x 120mm ARGB fans
Use the major case fan to daisy-chain the other two fans for ARGB sync and create your personal style.
- Full Reusable PCI Slot Covers
Reusable PCI slot covers fulfil an optimal build experience.
- EVA PSU Cushion Pads
With EVA anti-vibration foams on the power supply mount position, your lovely PC hardware is well protected against any jar or resonance caused by PSU operation.
- Powerful Air Cooling Compatibility
Max. CPU Cooler Height: 165mm
- Support Lengthy RTX 40 Series GPU
Max GPU Length : 415mm
- Ample Cable Management Space
23mm of cable management space ensures your PC build looks neat.
Specifications
Specifications
Dimensions
436 x 210 x 446mm (D x W x H)
Form Factor
Mini Tower
Materials
Steel + Glass
Mainboard Support
Micro-ATX, ITX
Front Access & Controls
- Power Button
- LED Control Button
- USB 3.0 x2
- Type-C 3.2 Gen 2 x1
- Headphone/Mic Combo Jack
Side Panel
4mm Tempered Glass
Expansion Slots
5
Drive Bays (3.5" / 2.5")
2 / 1
Drive Bays (2.5")
1
Fan Support - Top
3 x 120mm / 2 x 140mm
Fan Support - Side
2 x 120mm
Fan Support - Power Supply Shroud
3 x 120mm
Fan Support - Rear
1 x 120mm
Included Fans
- 2 x 120mm ARGB reverse fans (right side)
- 1 x 120mm ARGB fan (rear)
Radiator Support - Top
120 / 140 / 240 / 280 / 360mm
Max GPU Length
≤ 415mm
Max CPU Cooler Height
≤ 165mm
Max PSU Length (Including Cable)
≤ 210mm (with HDD)
Max PSU Length (Without Cable)
≤ 270mm (without HDD)
Dust Filter
Top / Bottom
Net Weight
6.34 kg
Gross Weight
8.2 kg
Warranty
1 Year
UPC#
- BLACK: 0-761345-10143-1
- WHITE: 0-761345-10144-8
