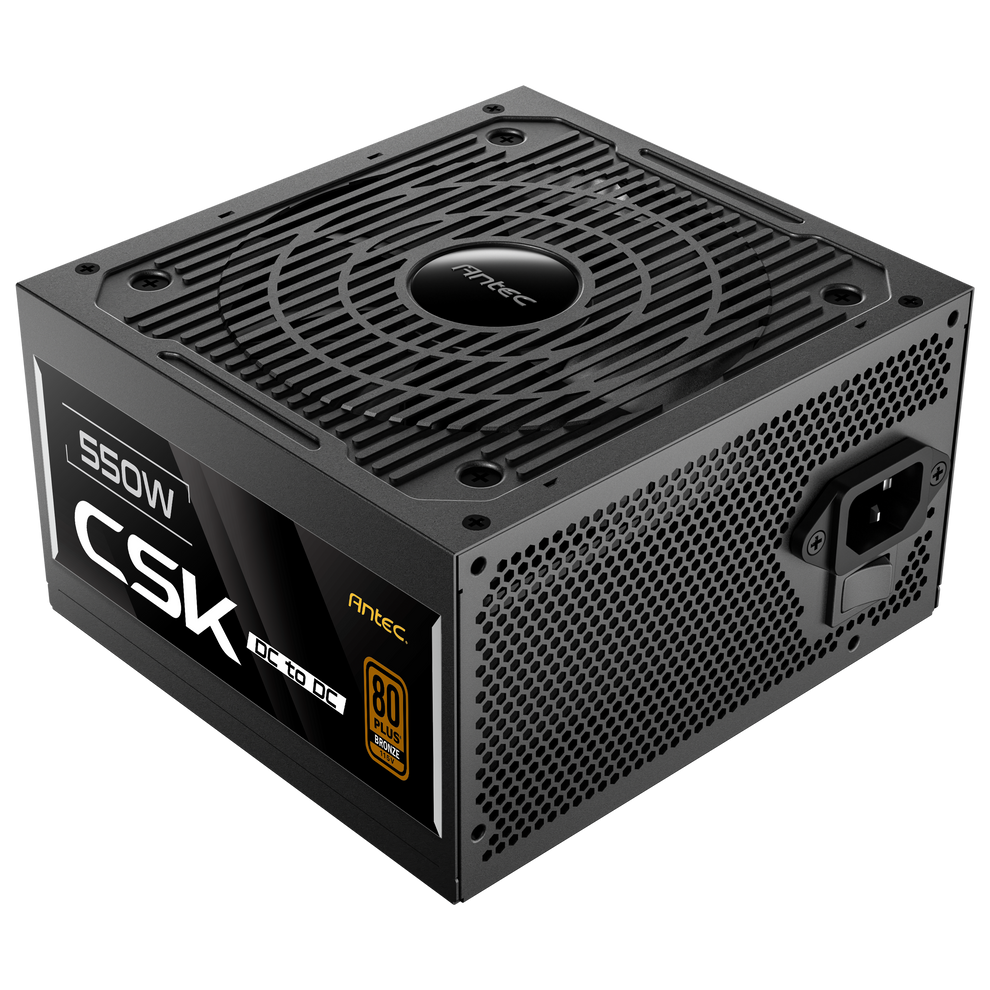

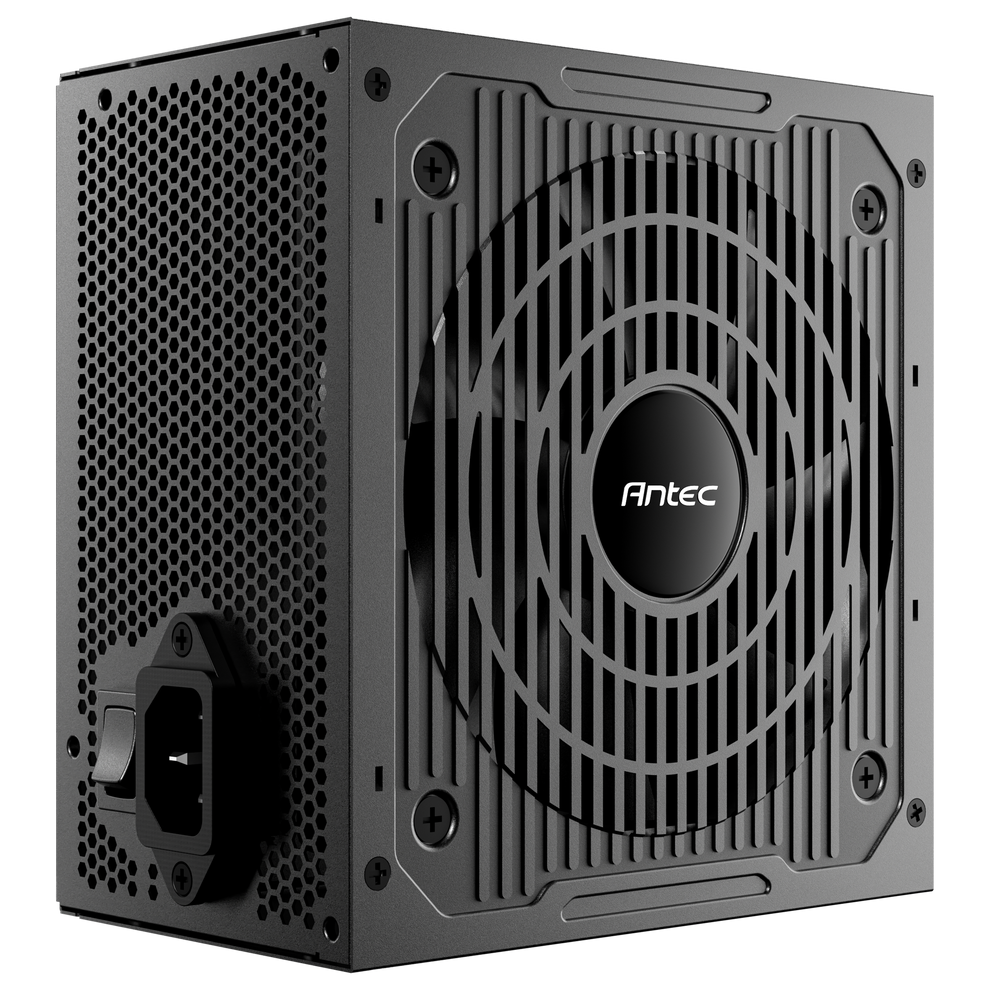

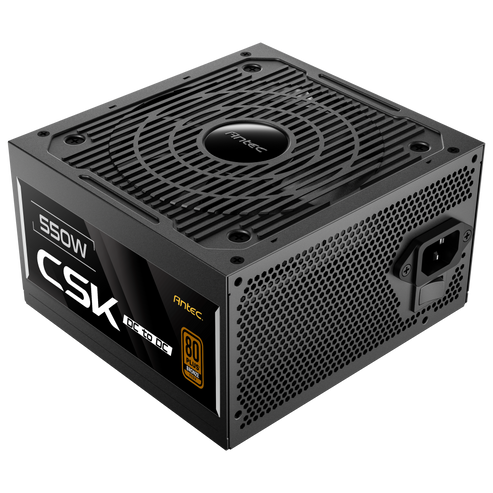

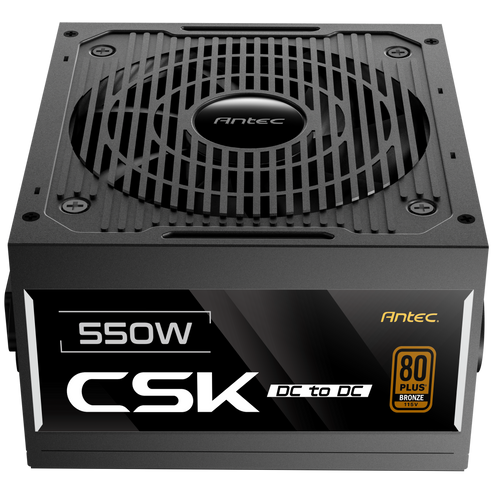

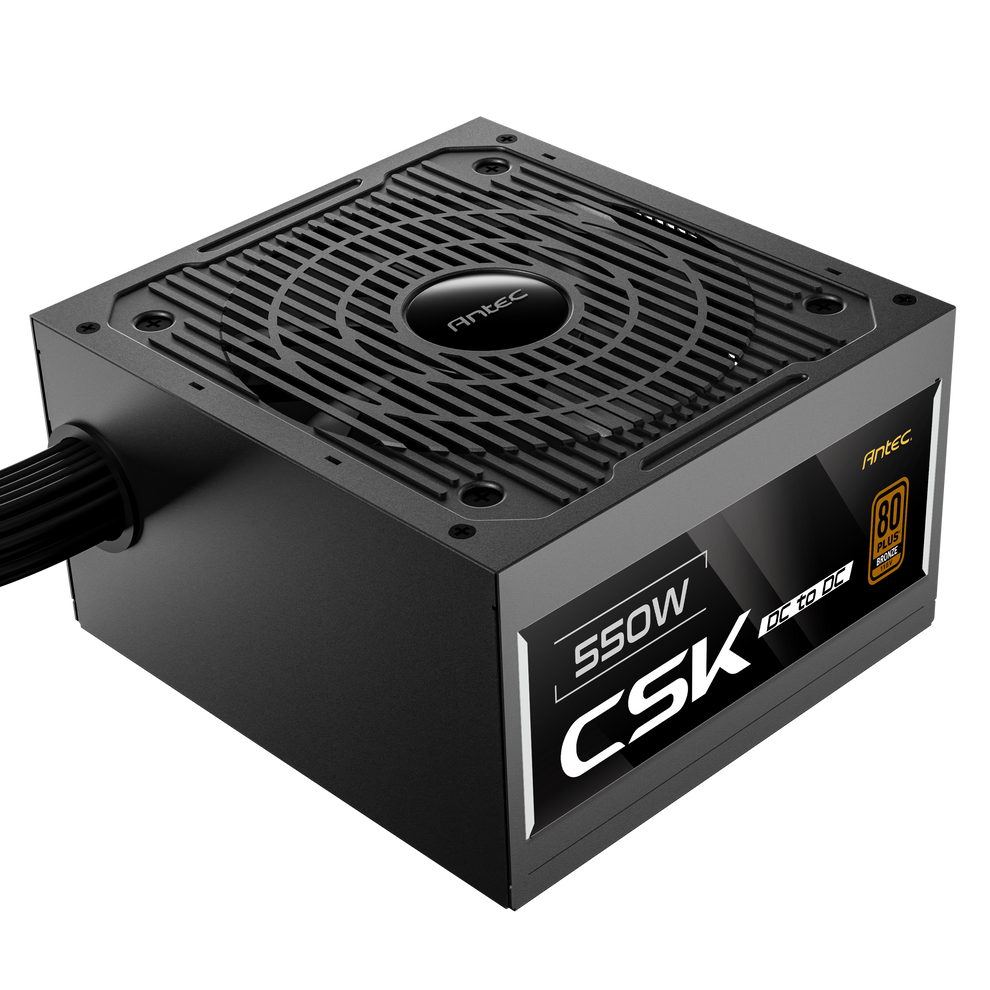

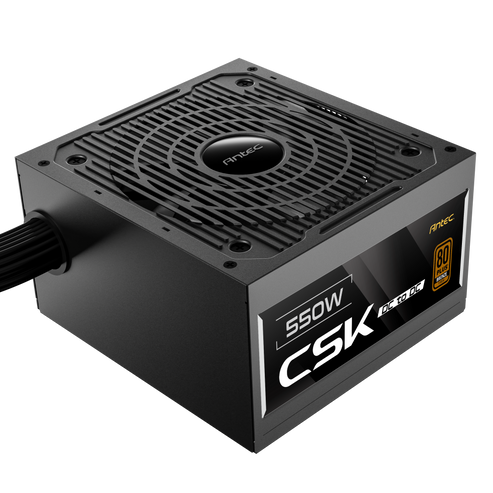

Antec’s new generation CSK DC to DC power supply is crafted for quality, efficiency, and performance. Featuring DC-to-DC architecture, 80 PLUS® BRONZE certification, and quiet 120mm fans, the brand-new CSK DC series includes Antec’s solid 5-year warranty. The CircuitShield™ suite of industrial -grade protections ensure that the power delivered to your system is safe and reliable in any environment.
- 80 Plus® Bronze Certified
Delivering up to 88% efficiency, CSK550 DC to DC utilizes active PFC and gives you a cooler and quieter system, all powered by Continuous Power.
- CircuitShieldTM
The full suite of industrial-grade protections includes OCP, OVP, UVP, SCP, OPP, OTP, SIP, and NLO, ensuring the safety and reliability of your power supply in any situation.
- 5-Year Warranty
Antec commits a 5-year warranty and offers our quality tech support and customer service.

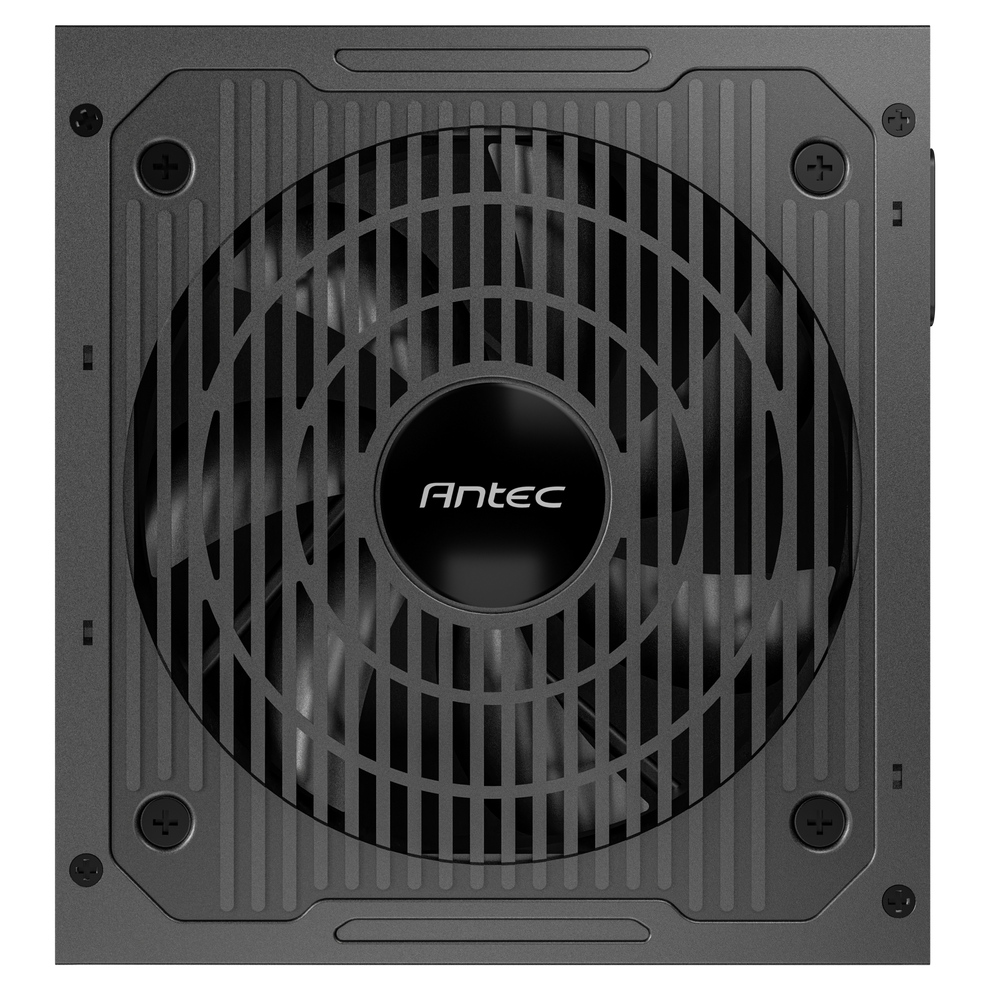

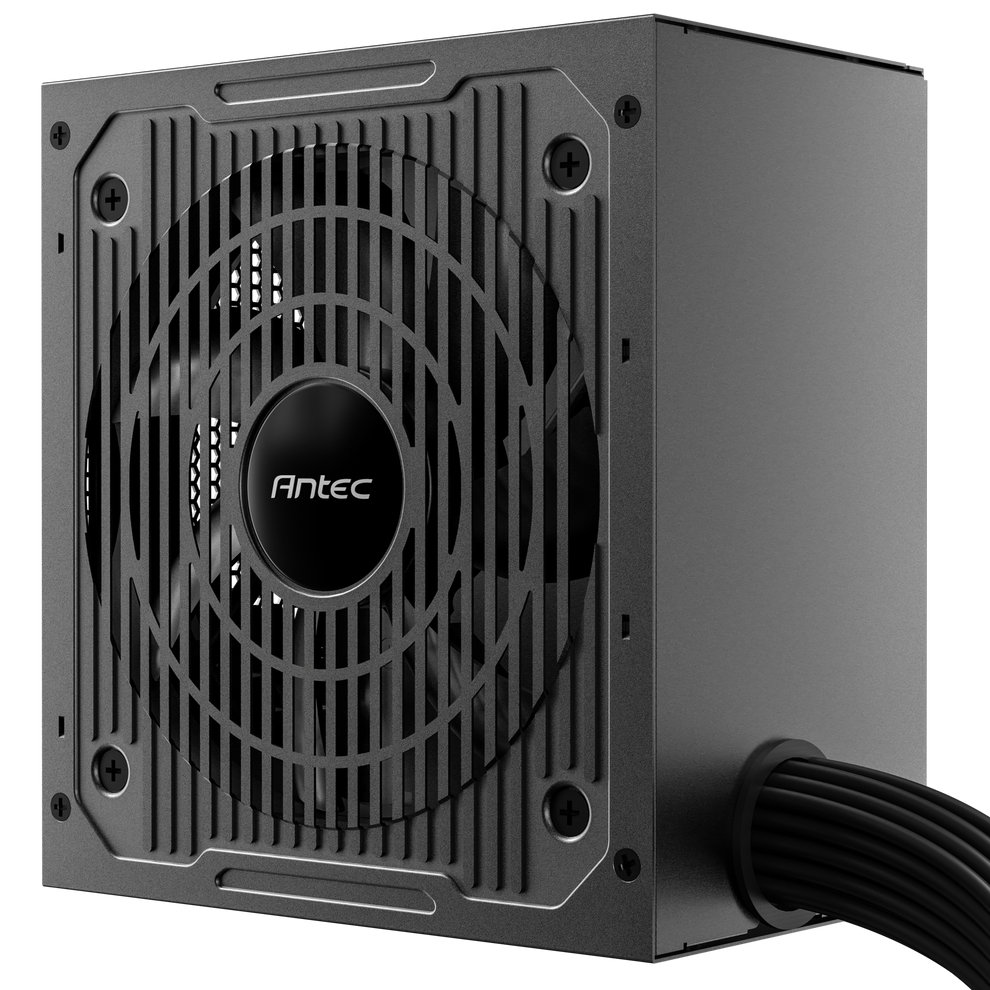

- 120mm Silent Fan
The whisper-quiet 120mm fan provides high airflow with the durability and longevity that is a Antec signature.
- Thermal Manager
Thermal Manager, an advanced low voltage fan control for optimal heat & noise management, allows your PSU to stay at the optimal temperature.
- Compact Size
Compared to large power supplies on the market, it is smaller in size and can be used with a wider range of computer cases.
Specifications
Specifications

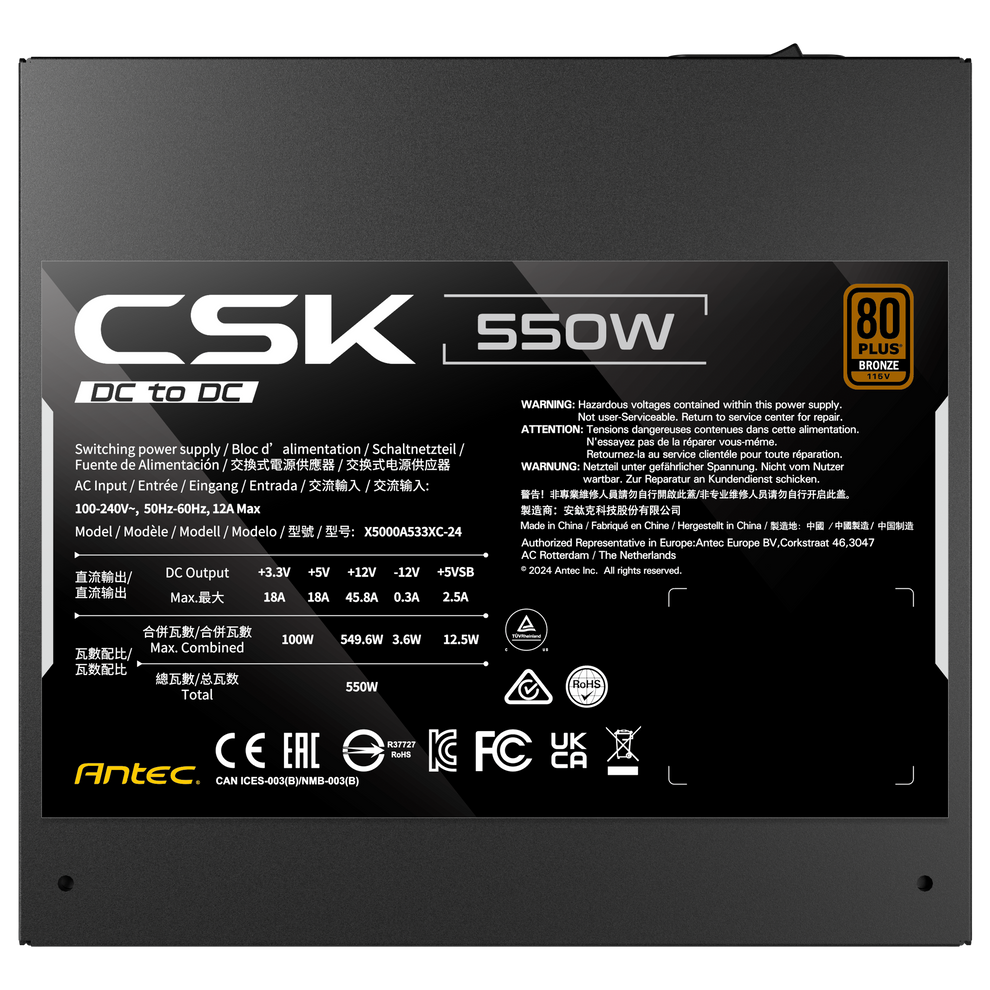

Model
CSK550DC
Safe Model
X5000A533XC-24
Type
ATX 12V 2.52
Dimensions
140(L) x 150(W) x 86(H) mm
Modular
Non-Modular
Warranty
5 Years
Input Voltage
100V – 240V
Input Current
12A Max
Input Frequency Range
50Hz – 60Hz
PFC
Active PFC
Power Good Signal
100 – 500ms
Protection
- OCP
- OVP
- UVP
- SCP
- OPP
- OTP
- SIP
- NLO
Output Capacity
550W
Operating Temperature
0 – 40°C
Regulatory
- cTUVus
- TUV
- CB
- RCM
- CE
- FCC
- BSMI
- KC
- UKCA
- ICES
- BIS
Fan
120mm Silent Fan
Certifications
80 Plus Bronze
Connectors
- 1 x 24(20+4)-pin Motherboard
- 2 x 8(4+4)-pin CPU
- 2 x 8(6+2)-pin PCI-E
- 6 x SATA
- 3 x Molex

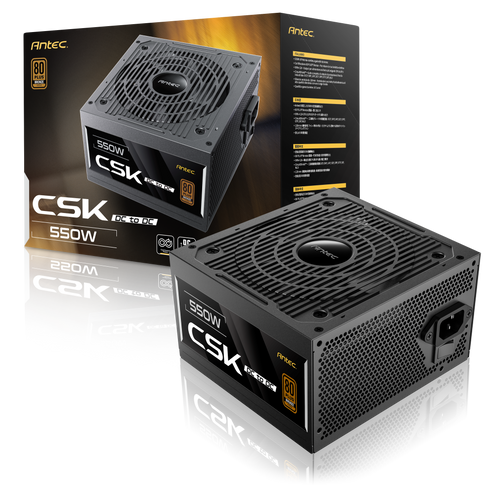

Unit Box Dimensions
255(L) x 195(W) x 100(H) mm
Shipping Box Dimensions
545(L) x 425(W) x 230(H) mm
Net Weight
1.60 Kg
Gross Weight
1.90 Kg
UPC
- 0-761345-20105-6 (CSK550DC US)
- 0-761345-20104-9 (CSK550DC JP)
- 0-761345-20103-2 (CSK550DC GB)
- 0-761345-20102-5 (CSK550DC EC)
- 0-761345-20101-8 (CSK550DC AU)
