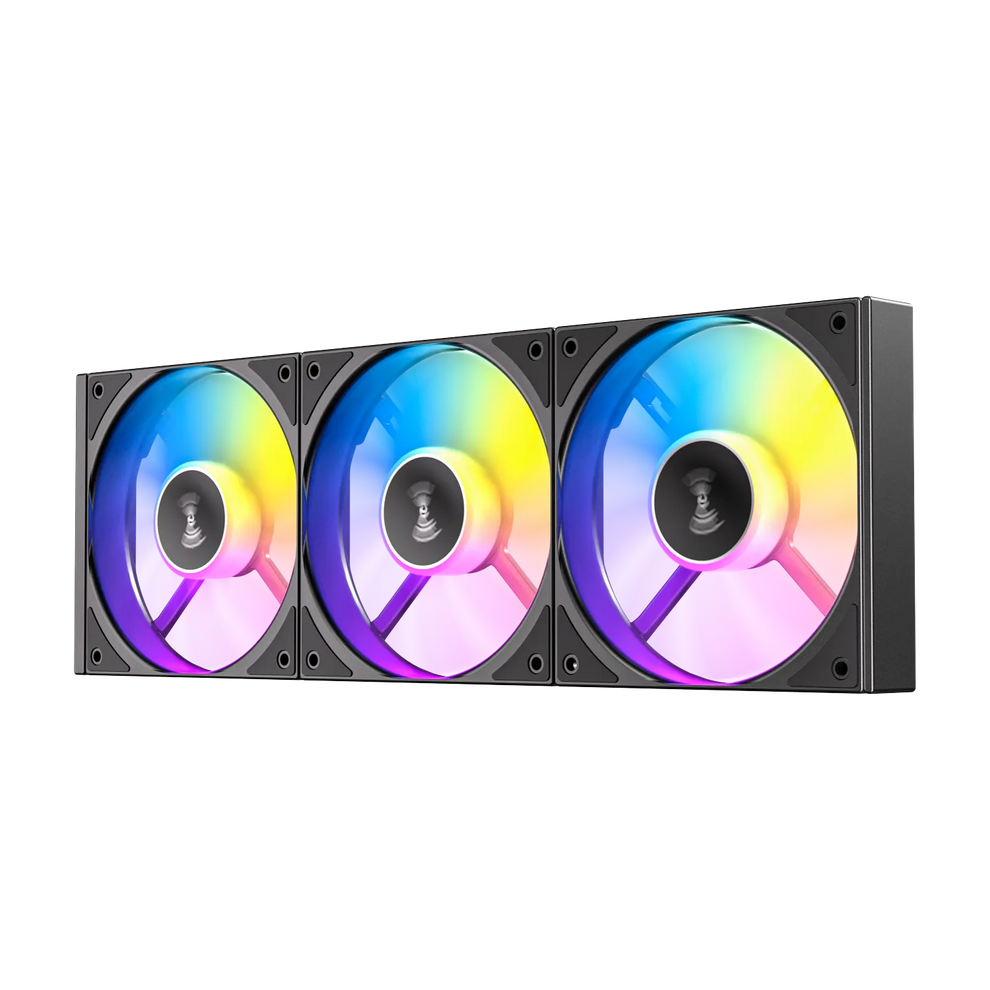

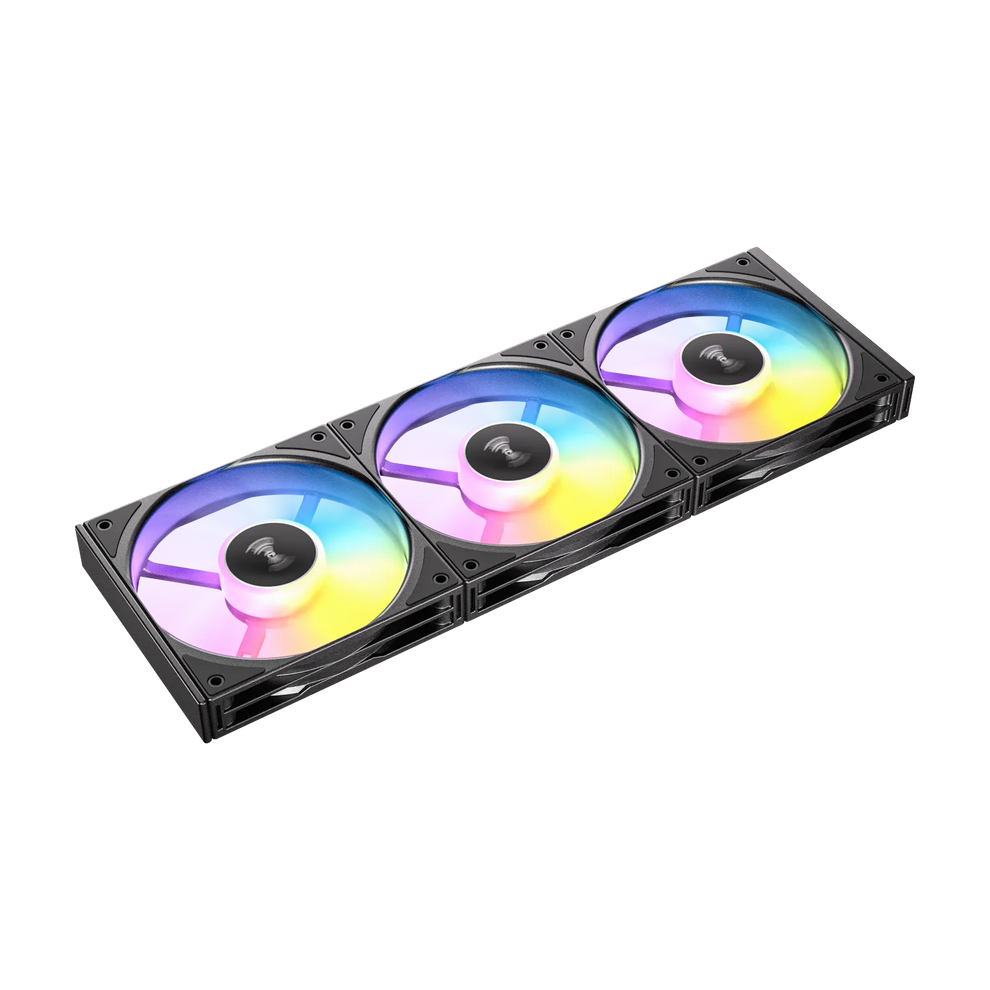

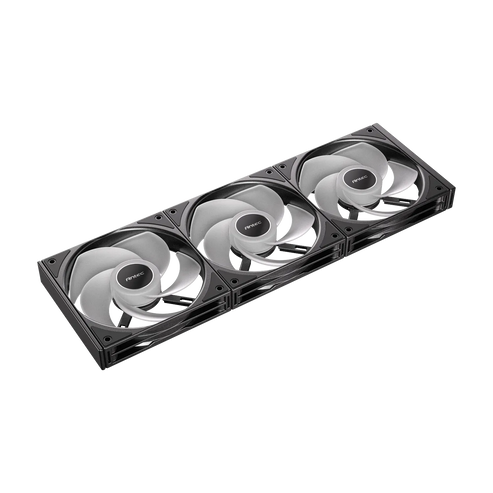

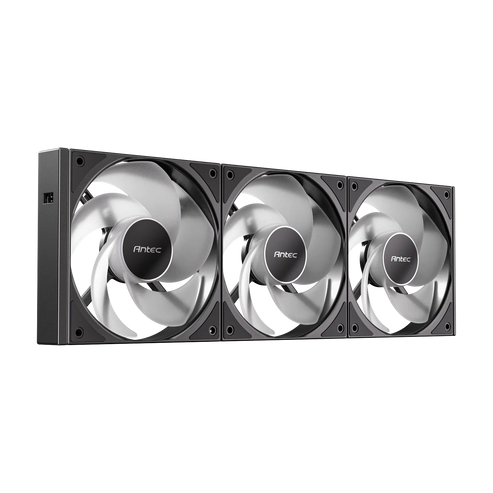

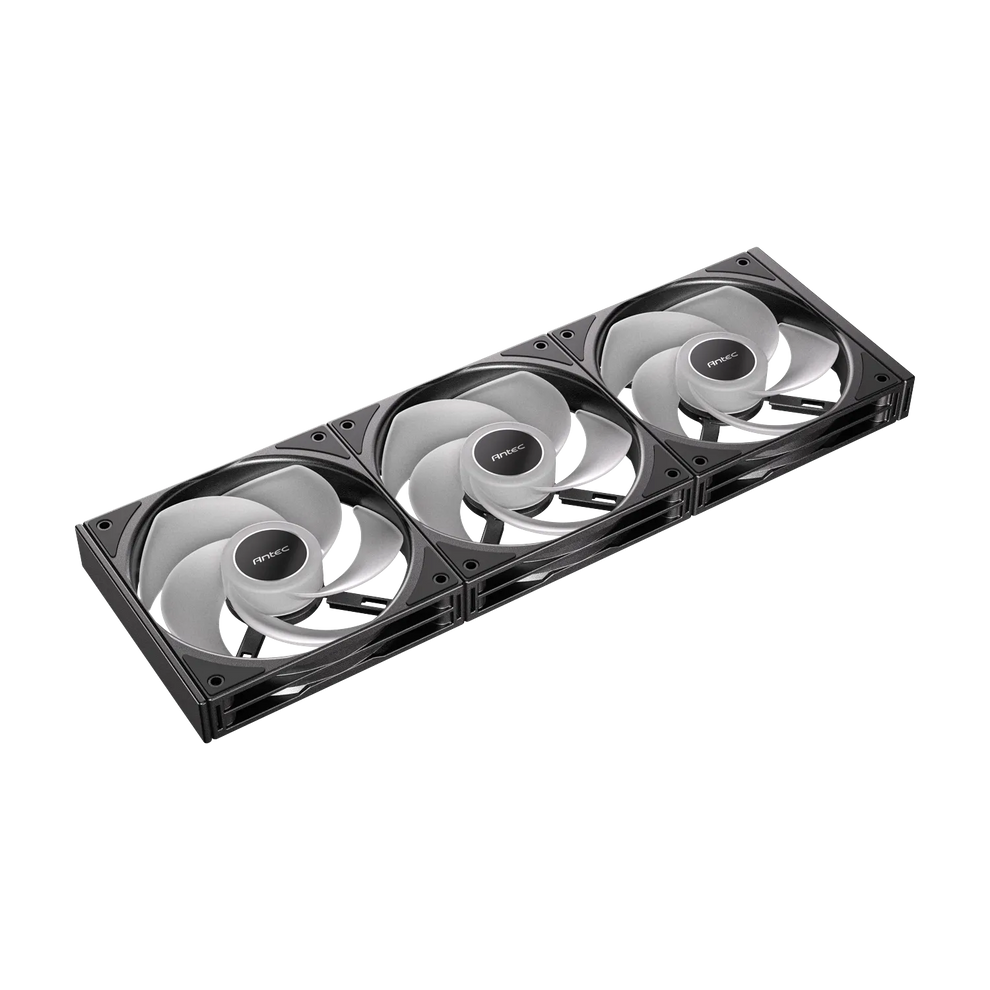

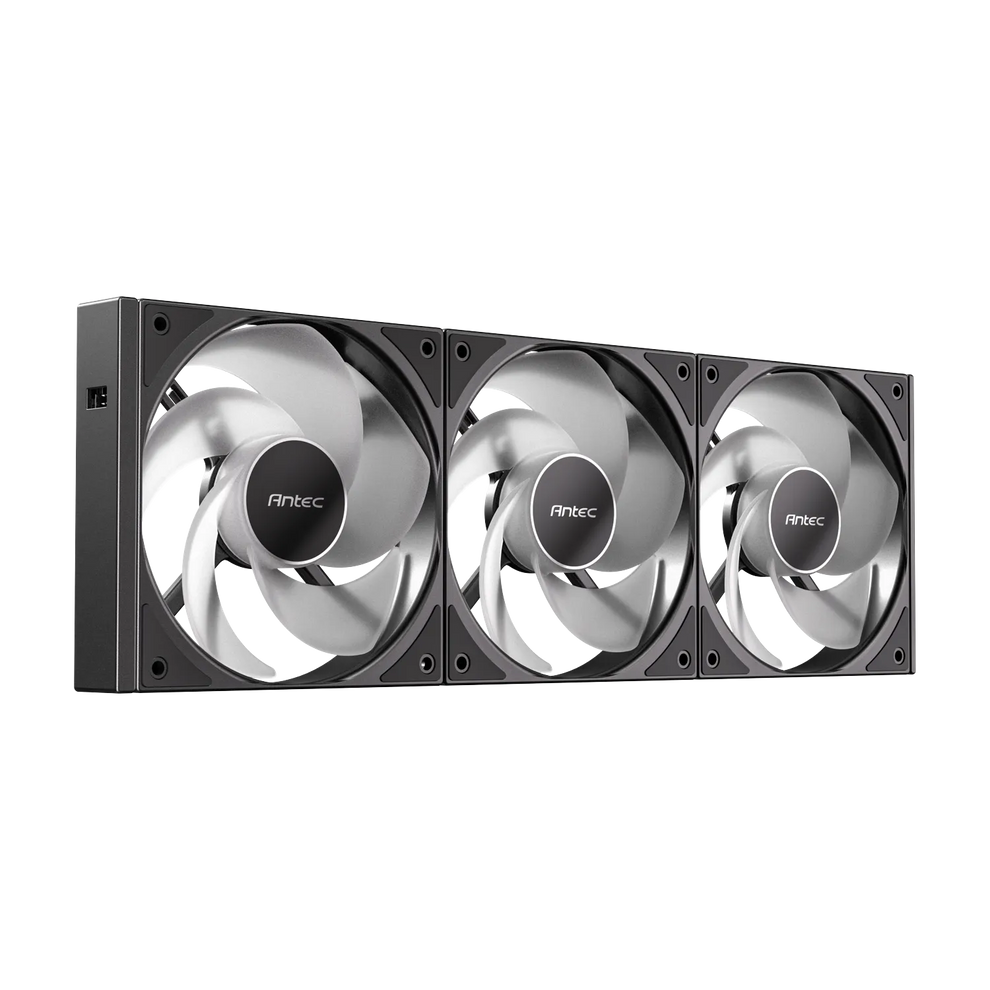

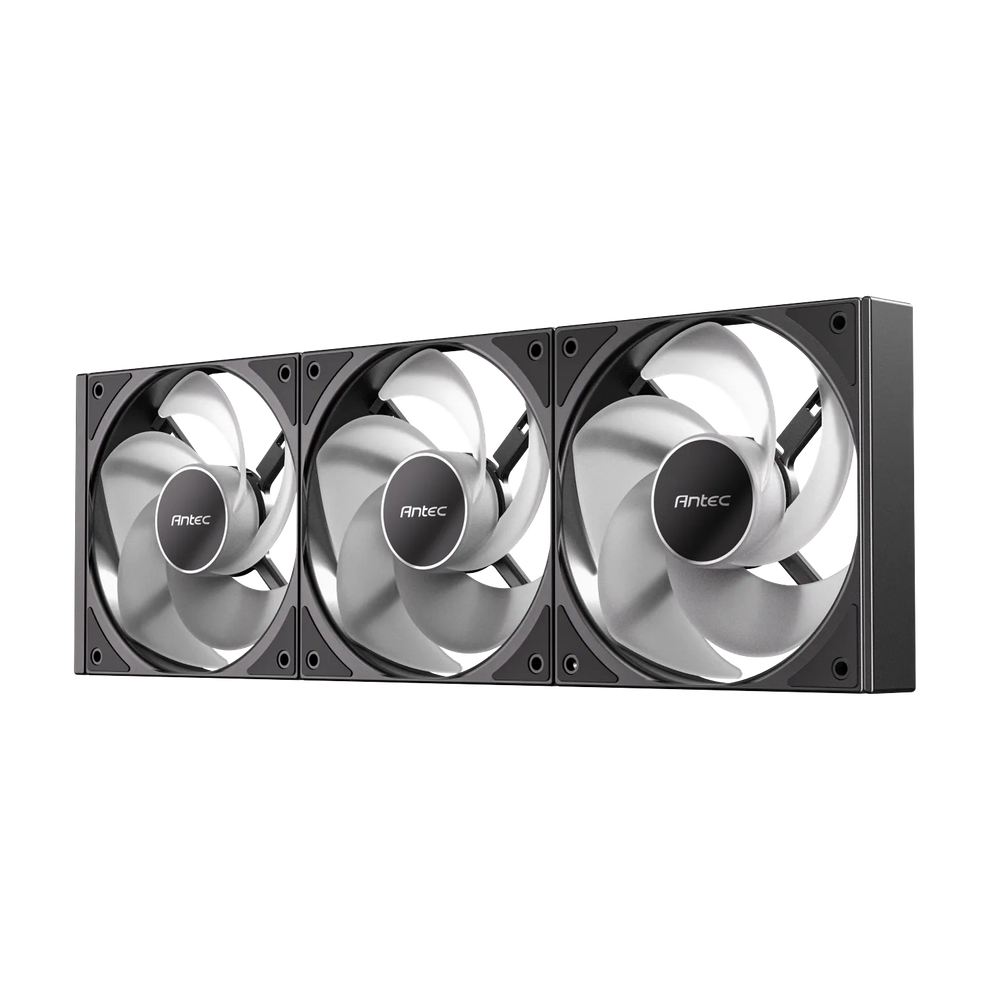

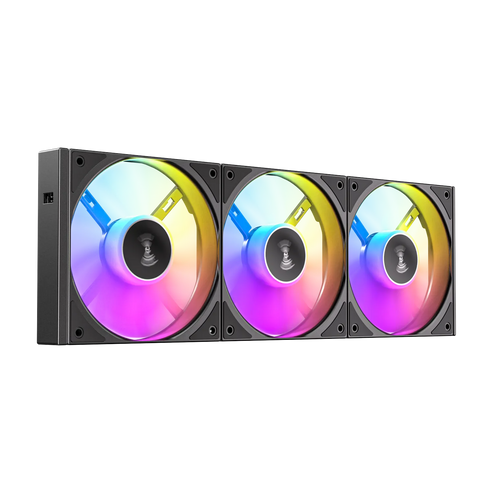

- Intuitive interlocking system
Connect the fans internally with each other to streamline the installation process.

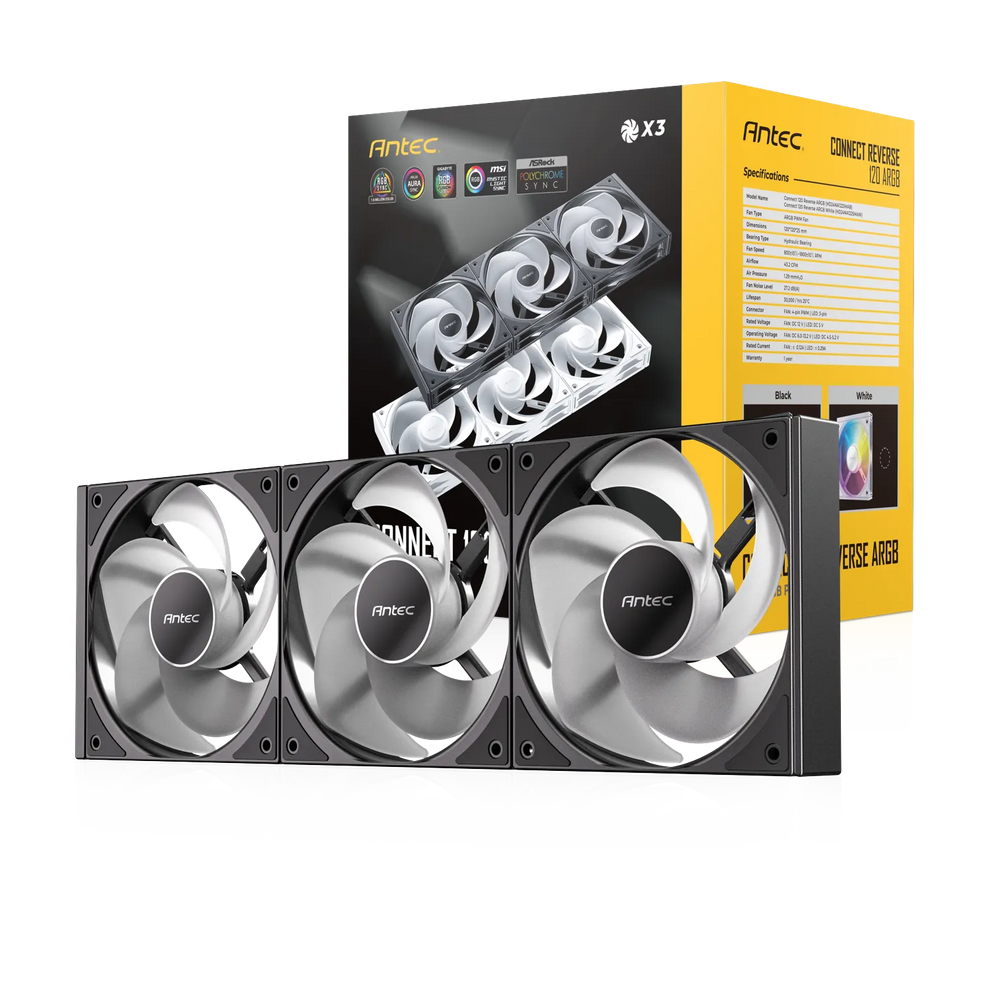

- 3 Fans 4 Screws
Interlocking system helps you mount multiple fans using less screws.

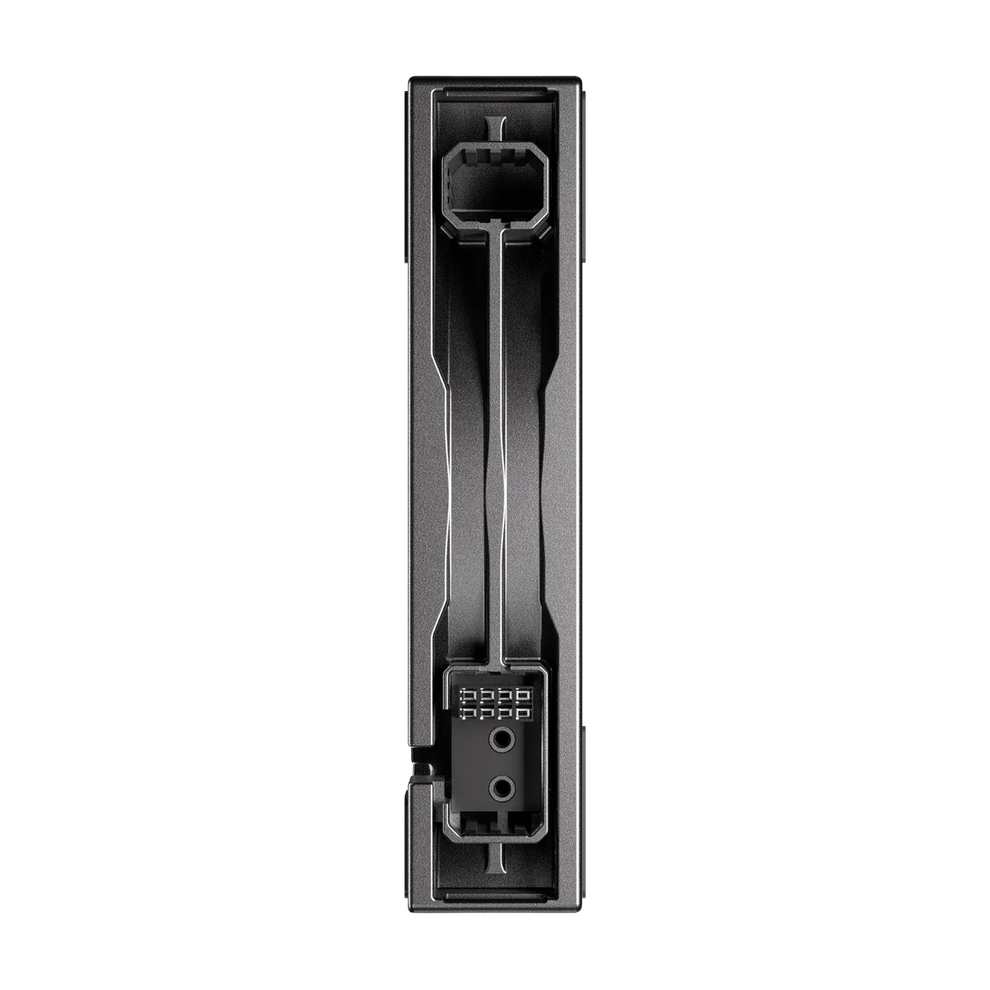

- Easier Installation With Less Cables
Daisy Chain design with less cables needed.
- PWM ARGB Fan
Strong and stable airflow in quiet operation.
- ENLARGED VIBRATION-ABSORBING & ANTI-NOISE PADS
8 anti-vibration pads effectively reduce vibration and noise.
- Fan installation

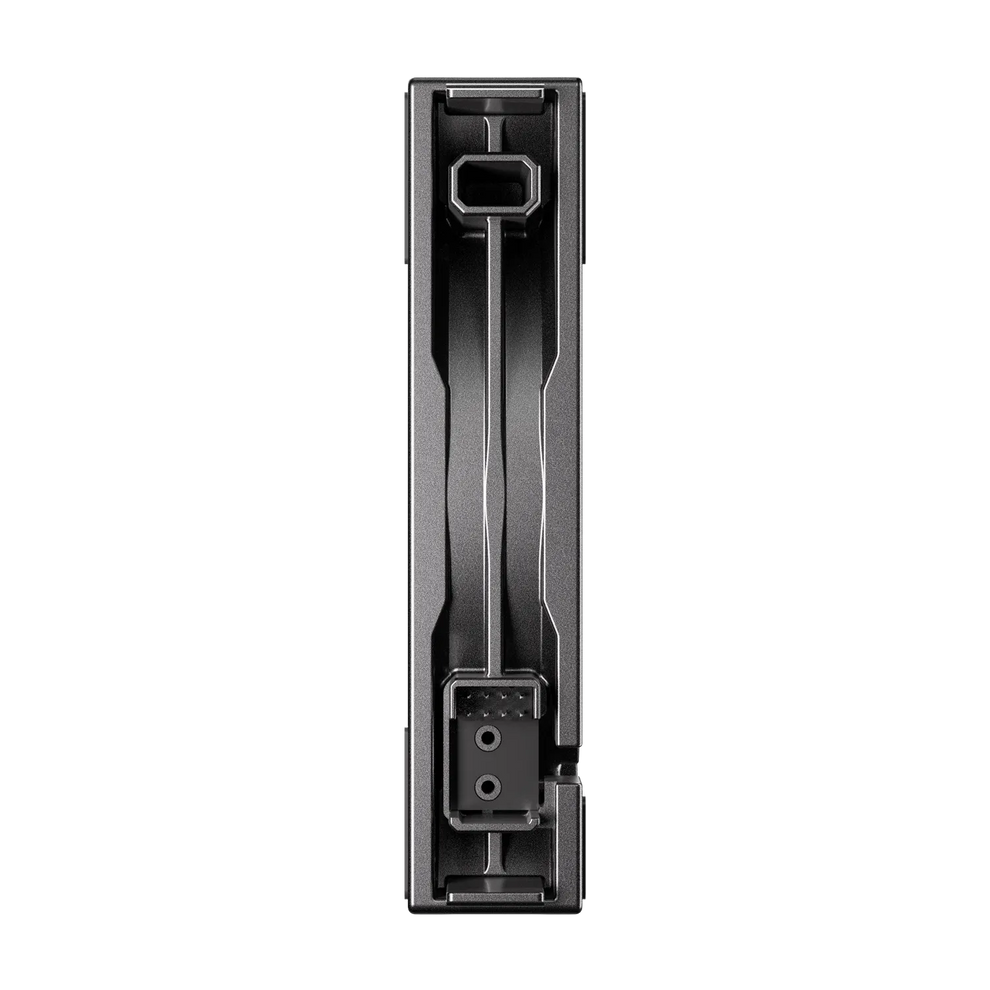

Pay attention to the cable outlet when installing fan covers; the outlet should be positioned over the male connector.

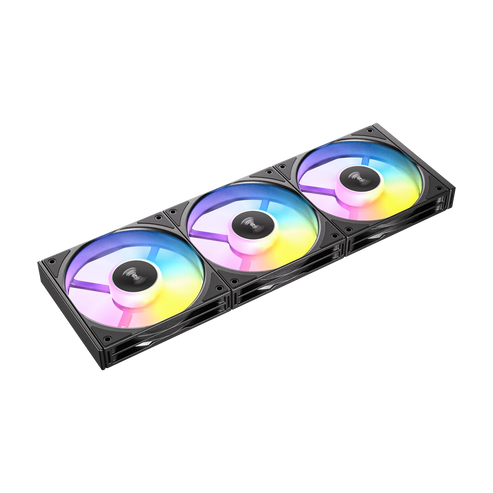

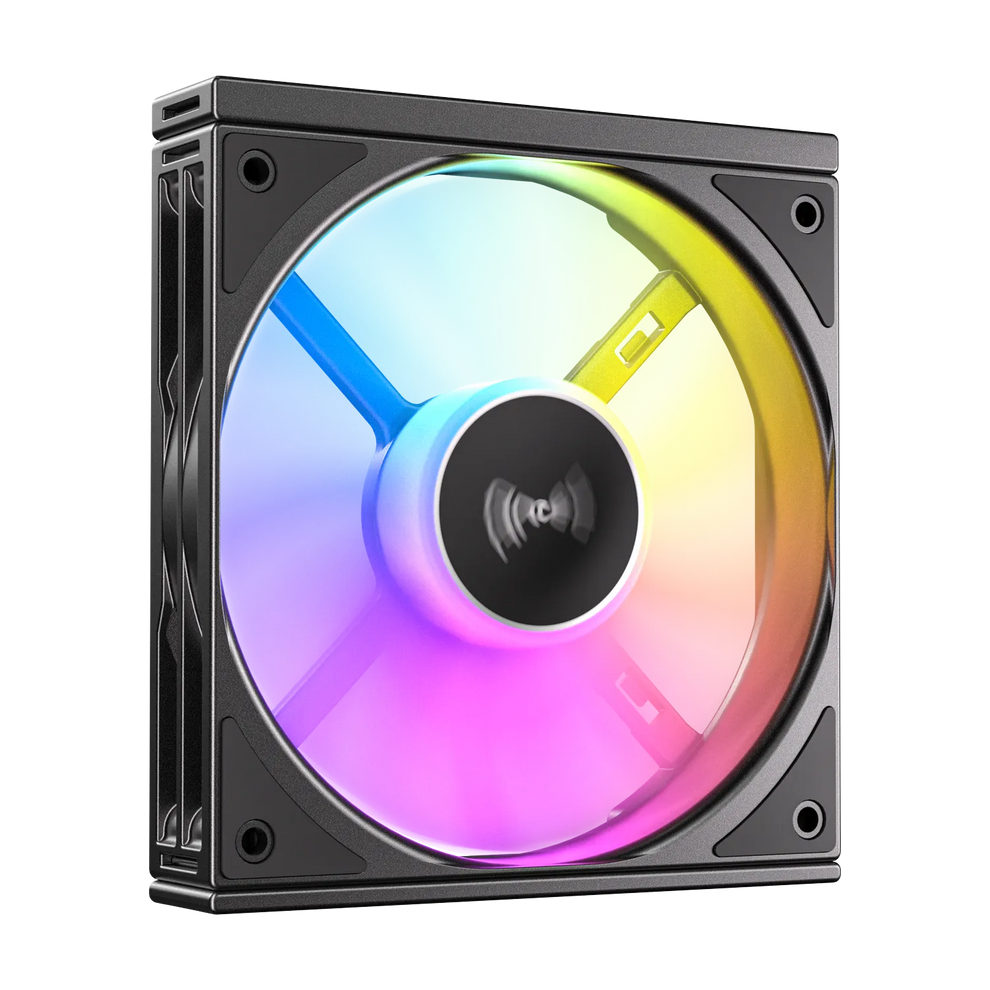

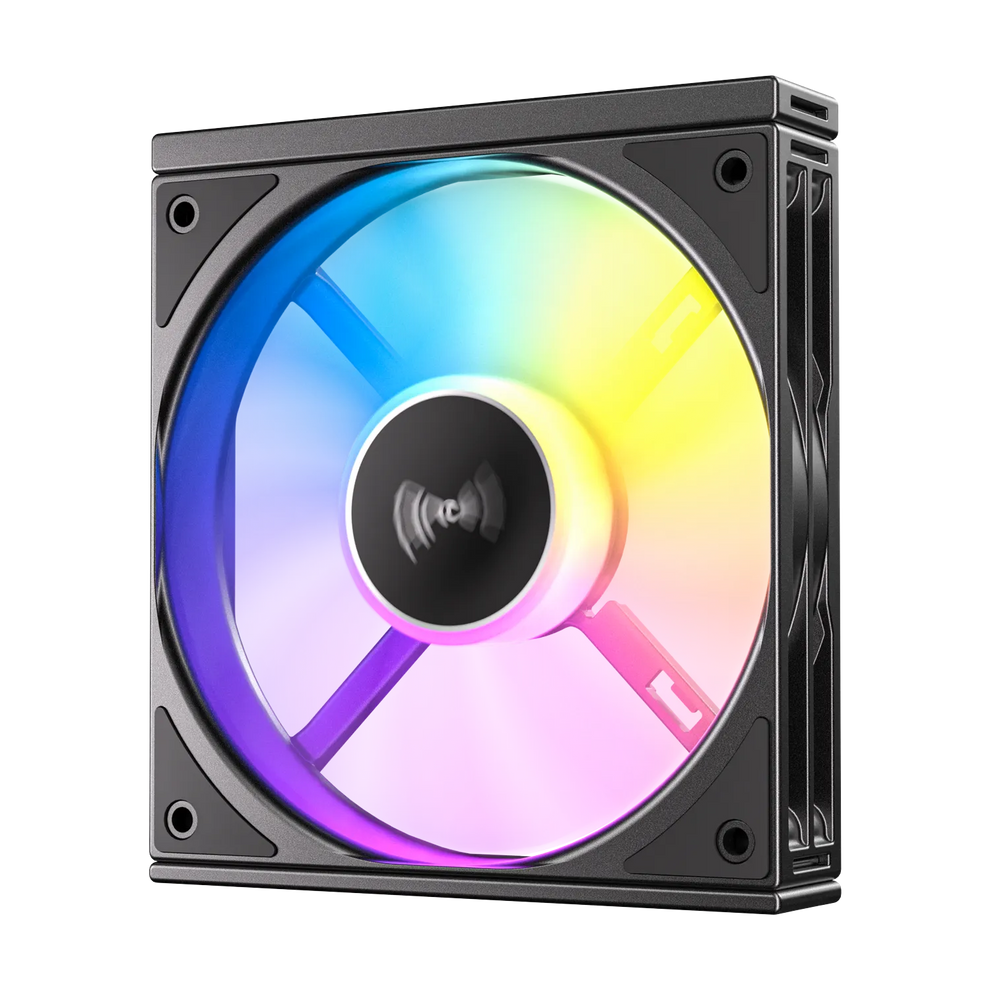

- ARGB LIGHTING EFFECT SYNC
Extendable 3-Pin Daisy-Chain ARGB connector provides a much easier way to integrate lighting effect with motherboard and other components.

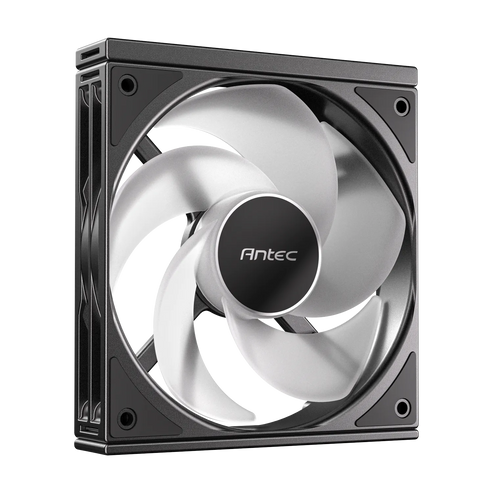

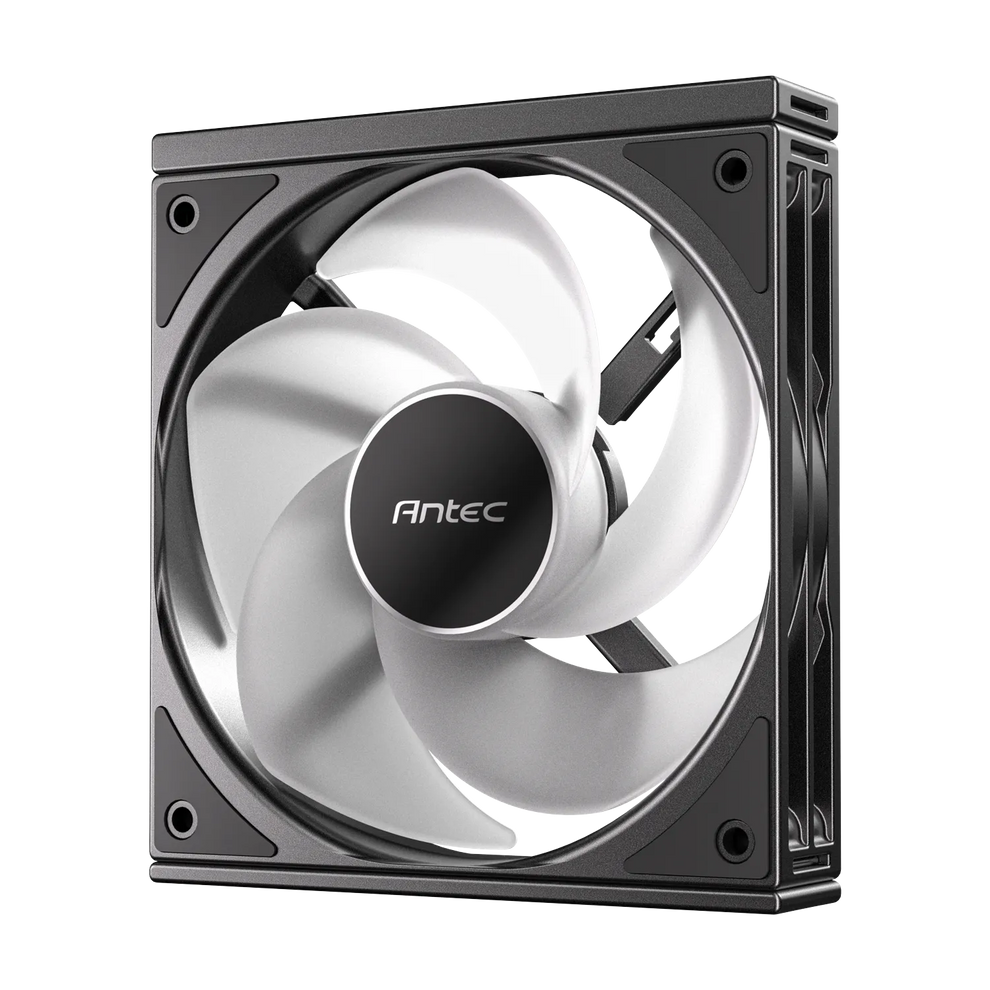

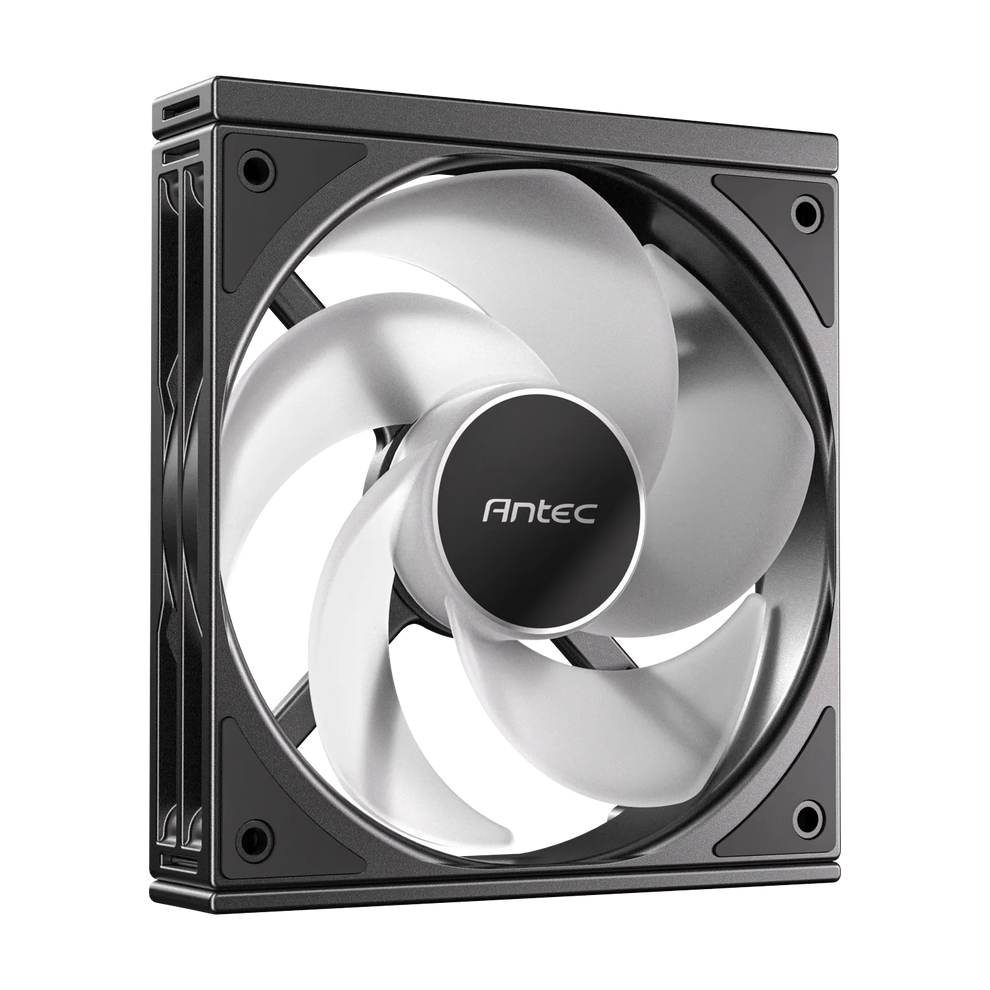

- Reverse fan
Reverse fan blade design provides smoother air intake in a cleaner look.
Specifications
Fan Type
ARGB PWM Fan
Fan Dimensions
120 x 120 x 25 mm
Bearing Type
Hydraulic Bearing
Fan Speed
800RPM± 10％ - 1800RPM± 10％
Airflow
43.2 CFM
Air Pressure
1.29mm H₂O
Noise
27.2 dB(A)
Lifespan
30,000 hrs / 25°C
Connector
- Fan: 4 pin PWM
- LED: 3-pin
Rated Voltage
- Fan: DC 12 V
- LED: DC 5 V
Operation Voltage
- Fan: DC 6.0-13.2V
- LED: DC 4.5-5.2V
Rated Current
- Fan: ≤ 0.12A±10%
- LED: ≤ 0.29A±10%
Warranty
1 year
UPC#
- 0-761345-40048-0 (Black)
- 0-761345-40049-7 (White)
