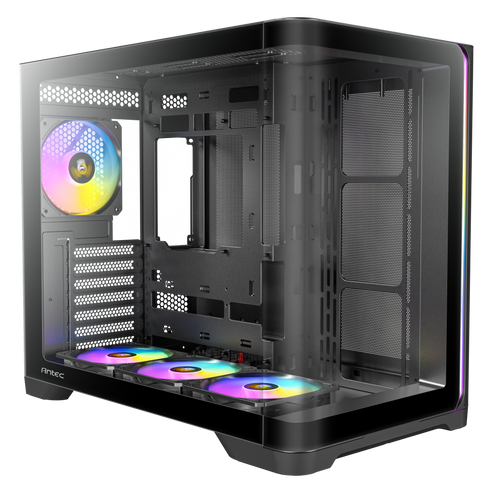

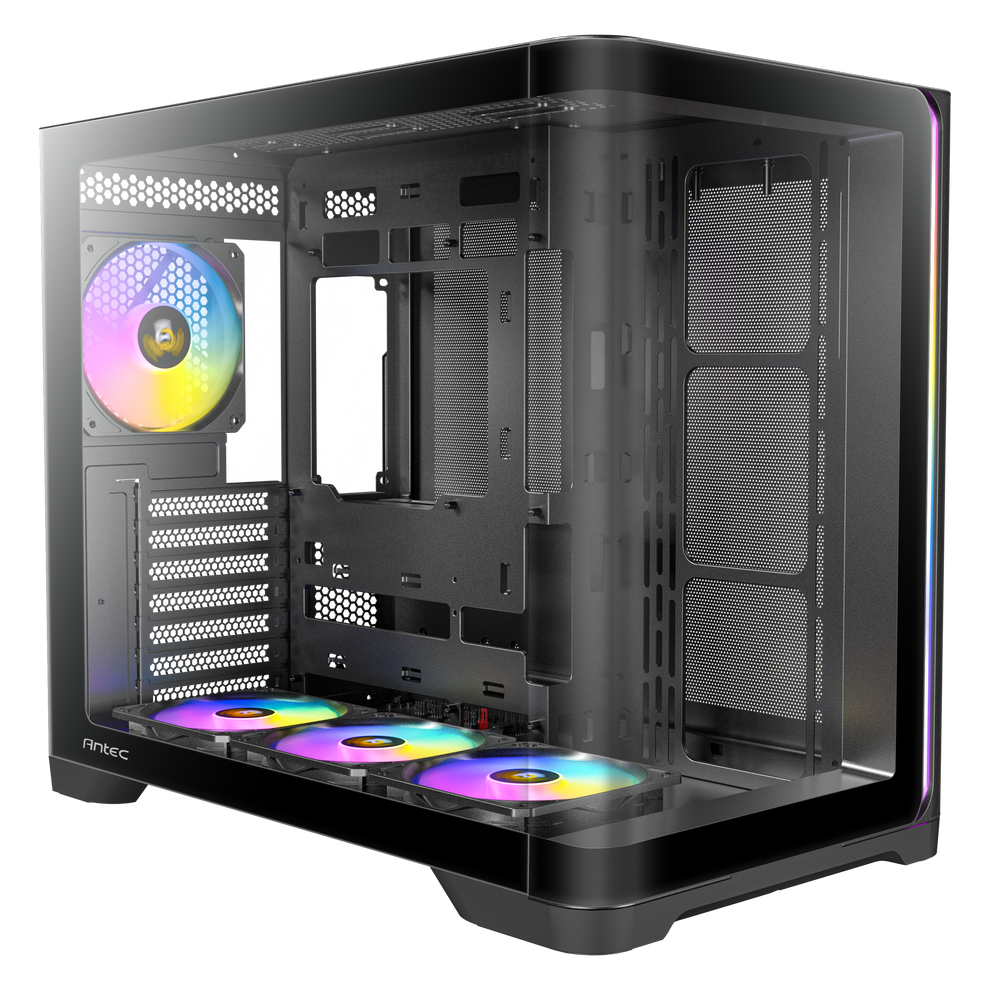

C5 Curve ARGB

✅ Key Features

• Form factor & support: Supports ATX, Micro‑ATX, and Mini‑ITX motherboards.

• Dimensions: ~ 465 × 285 × 400 mm (Depth × Width × Height)

• Materials: Steel + plastic frame, tempered glass panels (4 mm) on side and curved front & possibly on multiple sides for panoramic view.

• Cooling / airflow:

  • Vertical airflow intended — bottom intake, top/bottom radiators, side radiator support.

  • Pre-installed fans: 3 × 120 mm “reverse” PWM ARGB fans at the bottom, plus 1 × 120 mm PWM ARGB fan at rear.

  • Total fan slots: up to 10 × 120 mm fans.

• Radiator support:

  • Top & bottom: up to 360 mm radiators.

  • Side (right): up to 280 mm radiator.

• Clearances:

  • GPU max length: ~ 410 mm.

  • CPU cooler height: ≤ 160 mm.

  • PSU max length including cables: ~ 240 mm.

• Drive bays & storage:

  • 1 × 3.5″ HDD.

  • 2 × 2.5″ SSD. Some flexibility for additional ones if fans removed, etc.

• Front I/O: 2 × USB‑A (USB 3.0), 1 × USB‑C (3.2 Gen 2), mic in/out, LED control / button.

• Extras: Magnetic dust filters top & bottom. Dual‑chamber layout (right chamber has PSU up top, plenty of space for cable management ~95 mm).
