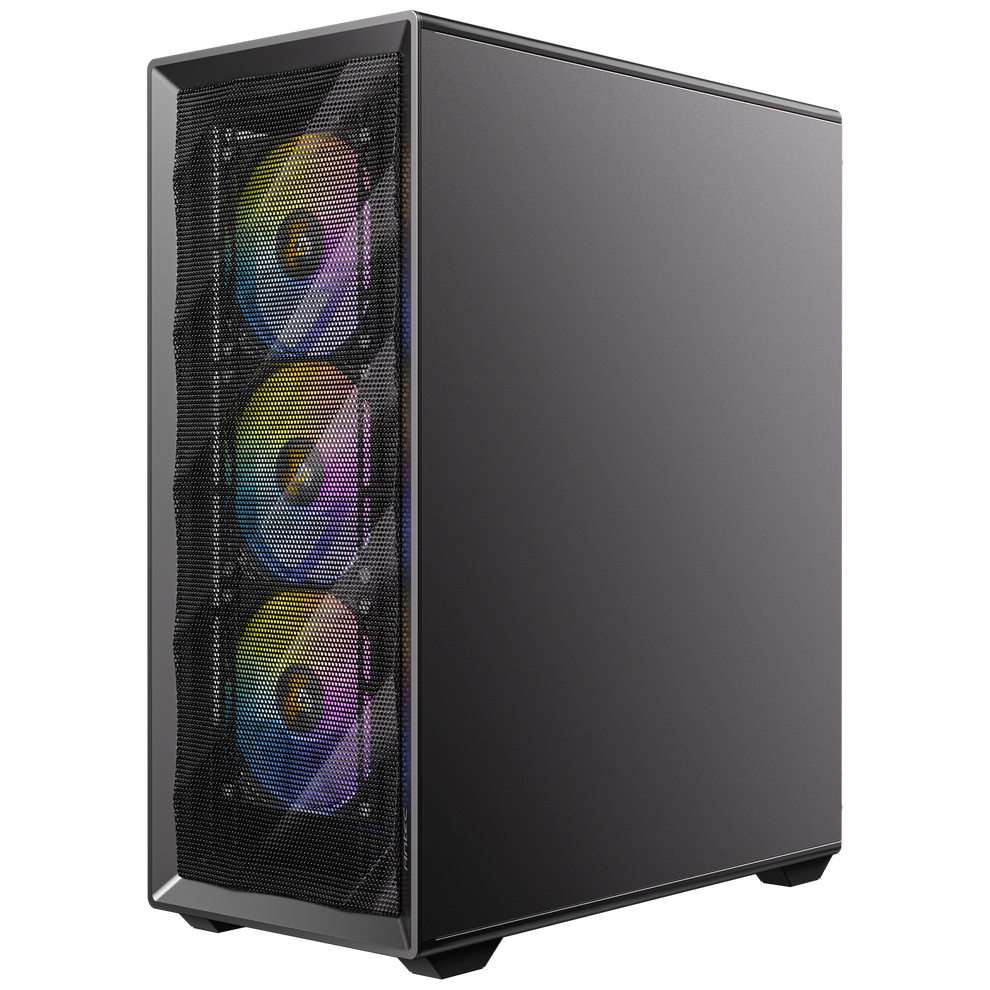

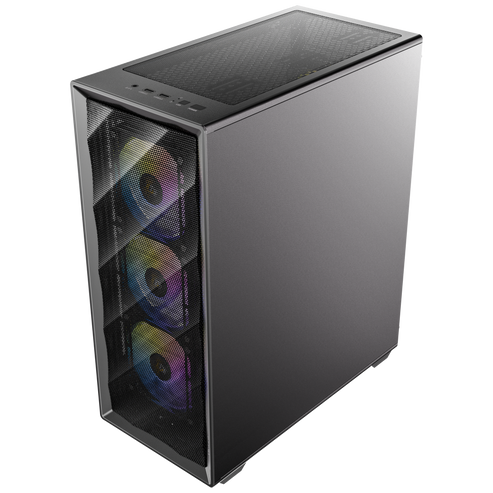

- Unique Design & Powerful Heat Dissipation
The AX85 ARGB features a unique design and excellent cooling performance. The full tempered glass side panel allows you to show off your gaming configurations without any obstacles. 8 x 120mm fans can be installed simultaneously.

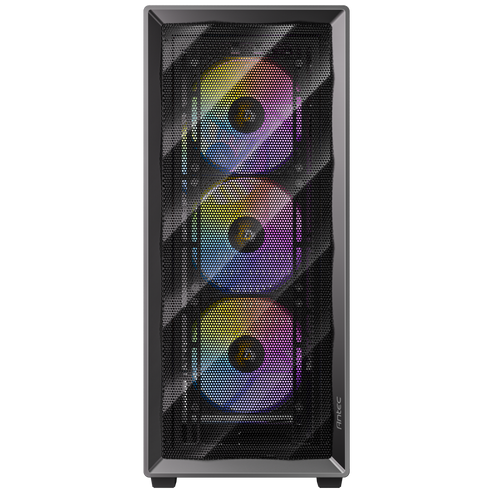

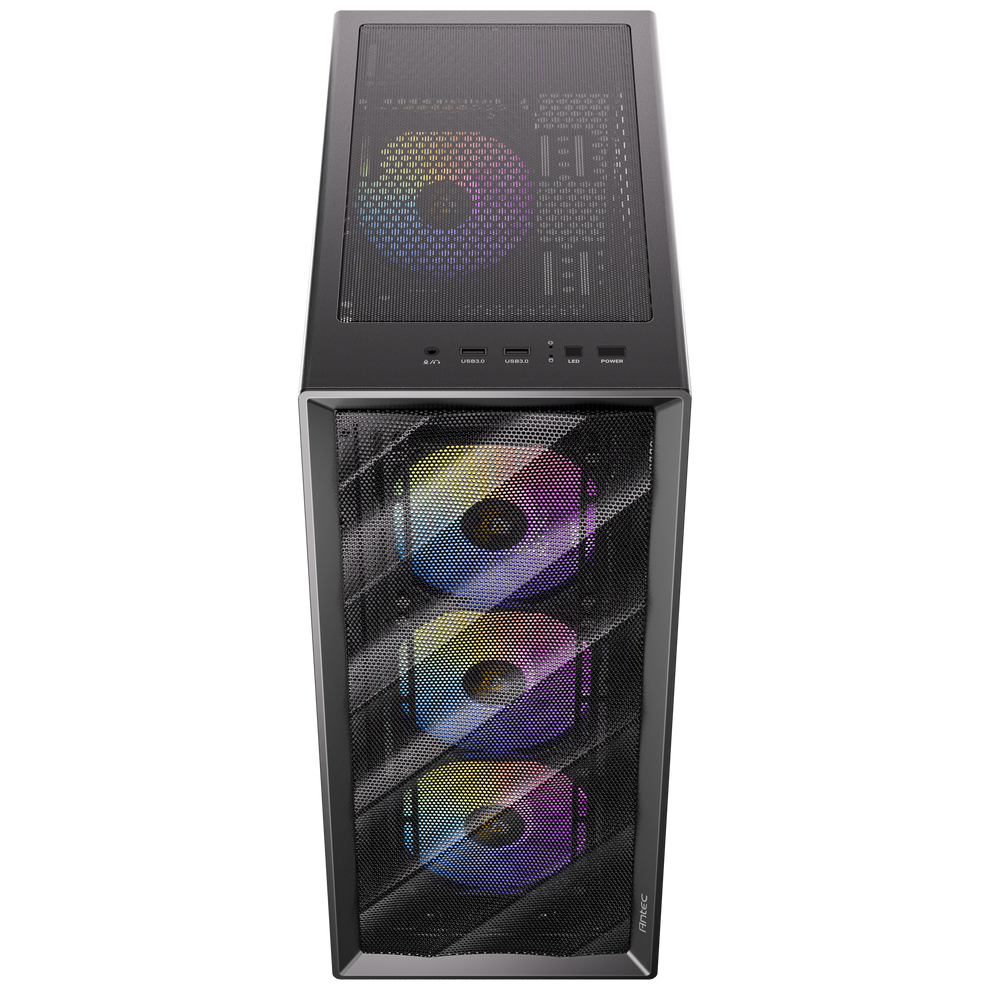

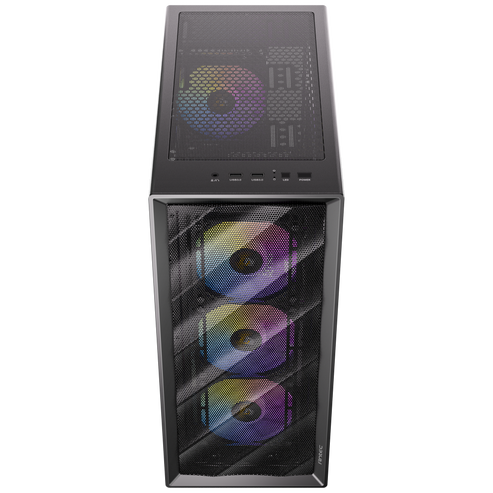

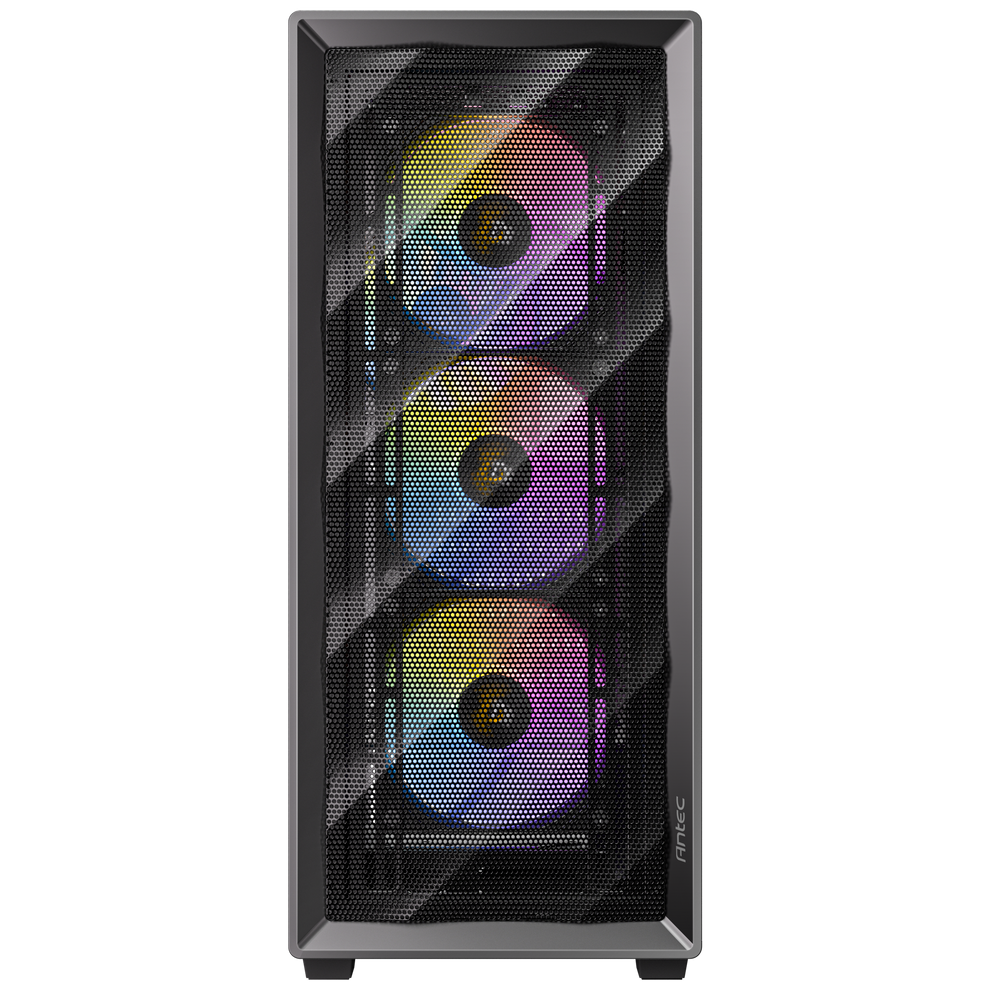

- Ripple-Patterned Mesh Front Panel
The wave-like design with vast mesh on the front panel ensures massive airflow and maximum cooling performance, while enhancing dust prevention at the same time.
- High-Airflow Front Panel
Large-area mesh front panel for massive airflow.
- Pre-Installed 4 x 120mm ARGB fans
Use the major case fan to daisy-chain the other fans for ARGB sync and create your personal style.

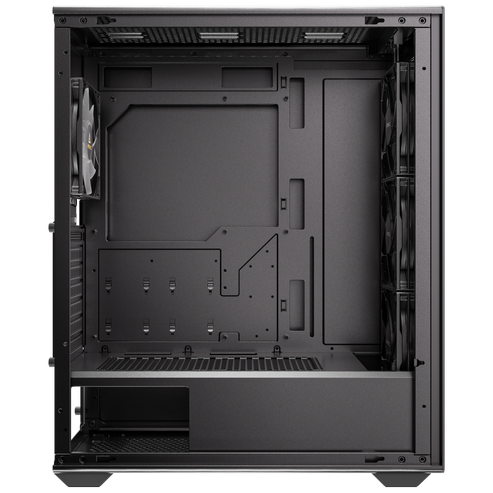

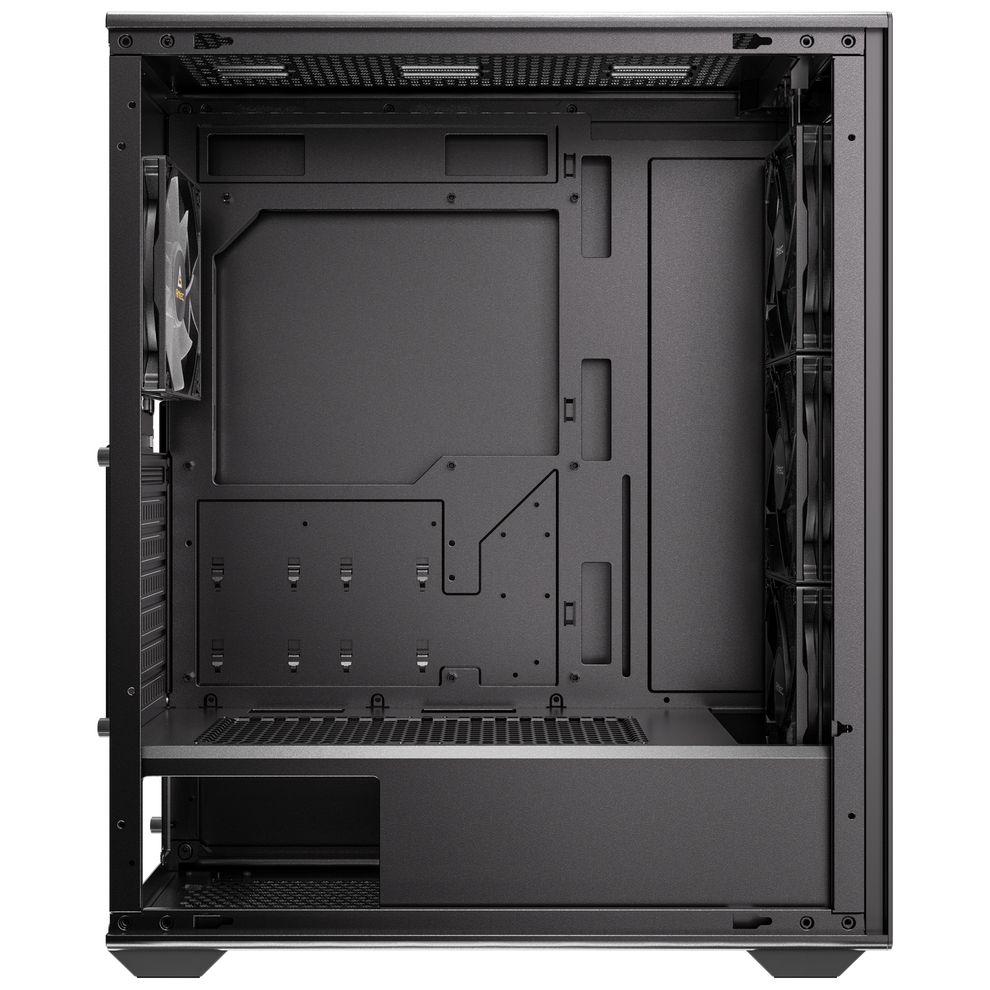

- Neat Build within Reach
23mm space for cable management ensures your PC build looks neat.

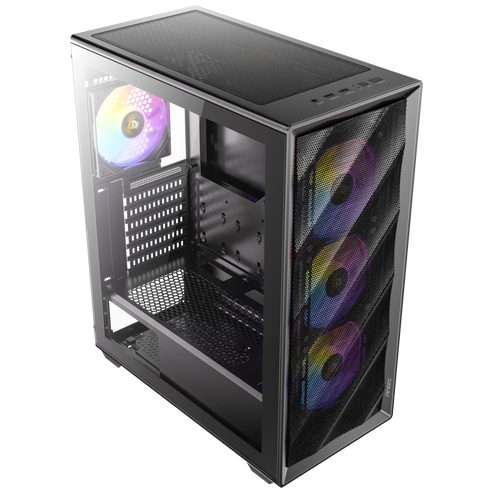

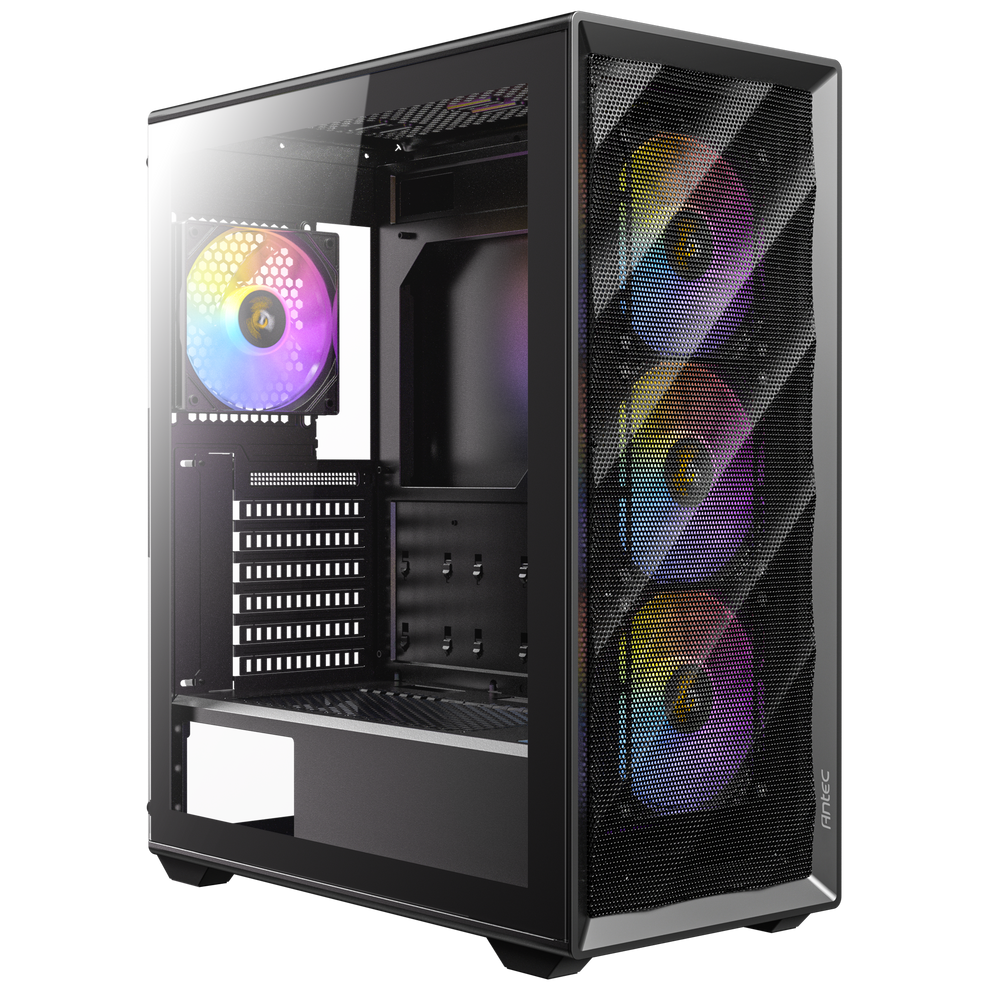

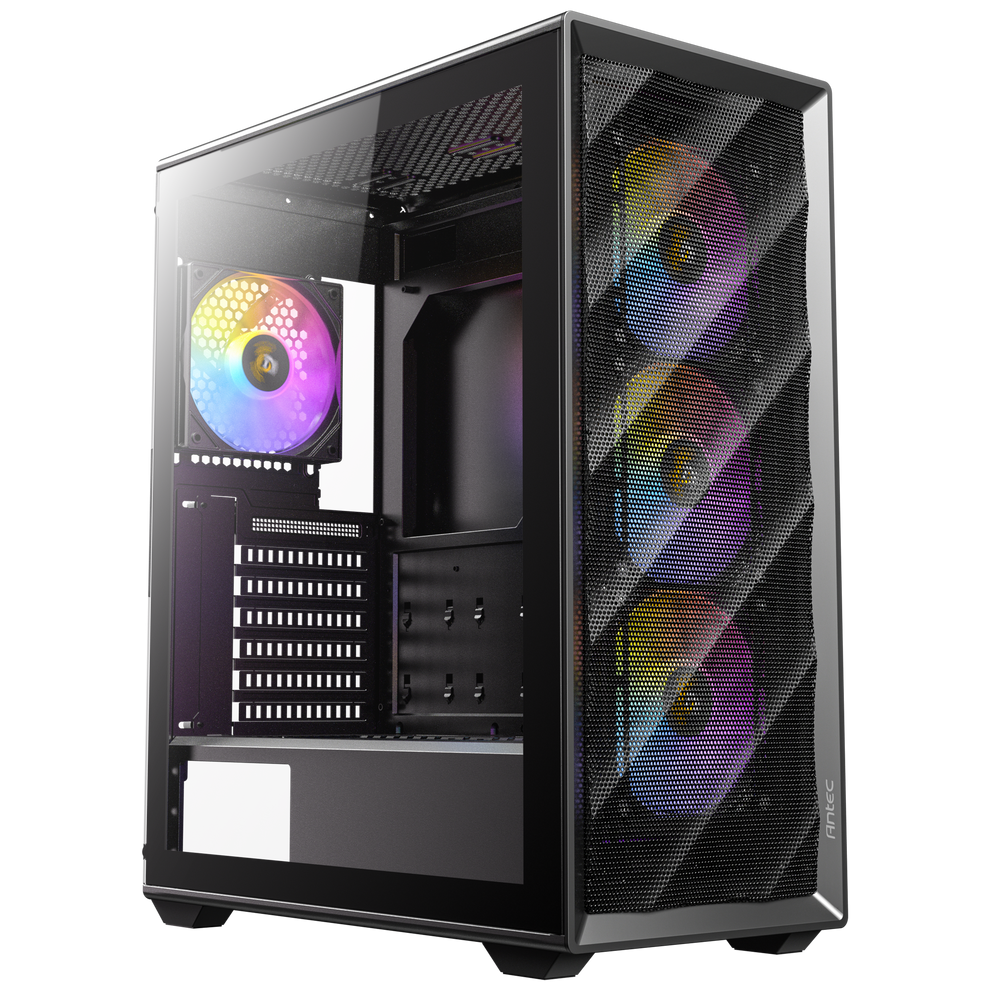

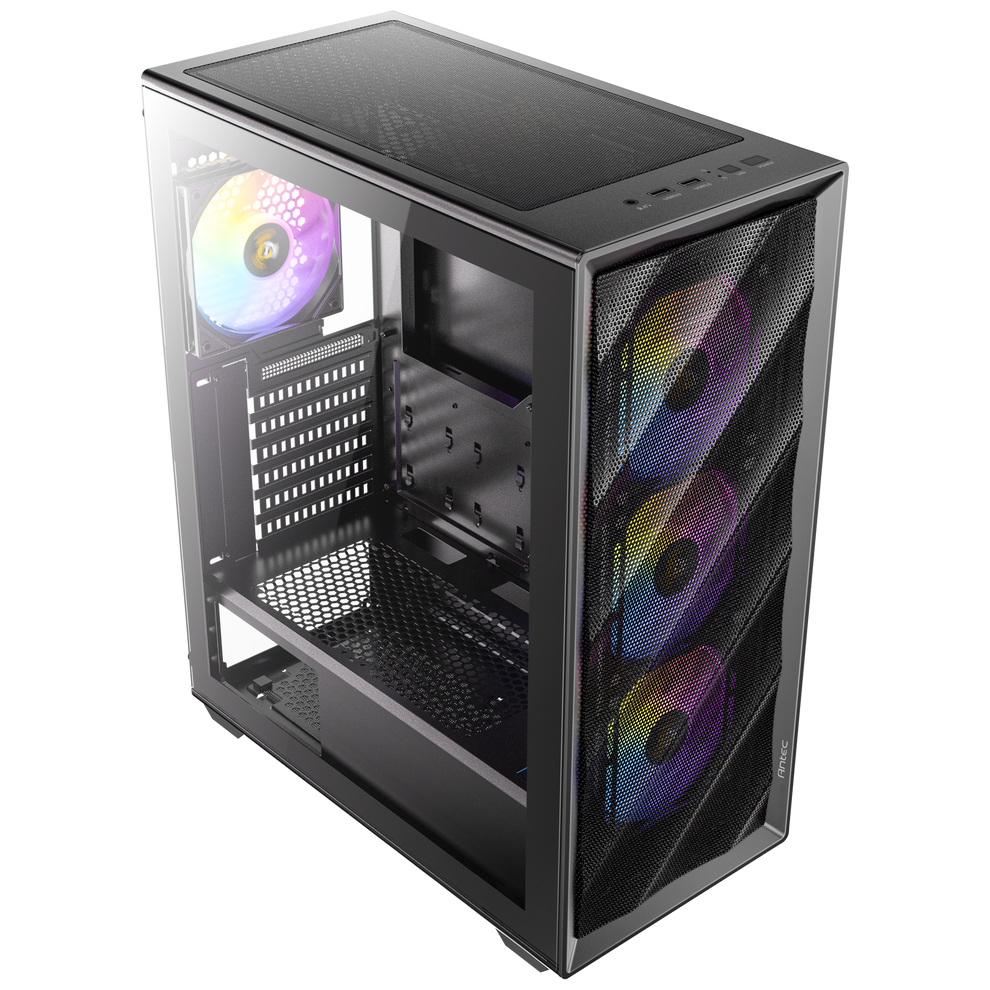

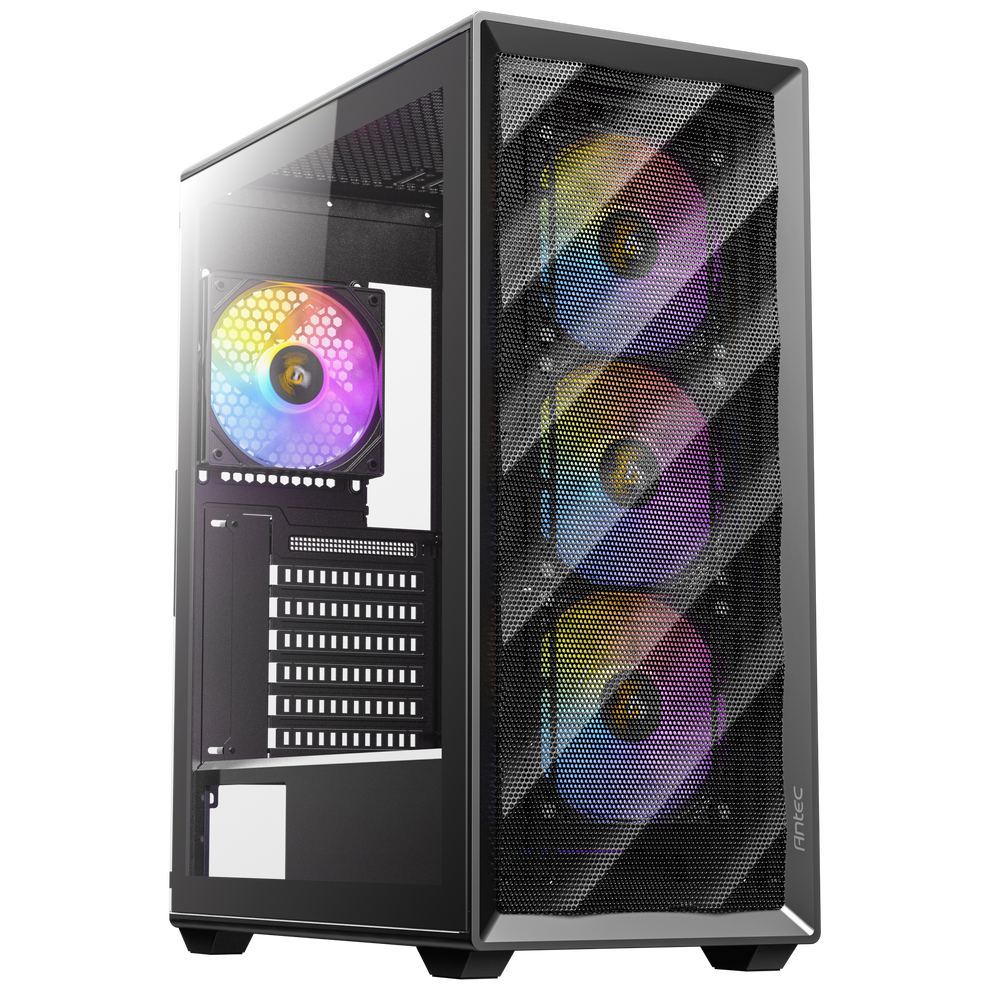

- Tempered Glass Side Panel
Showcase your custom water-cooling system and fancy components.
- Front 360 Radiator Available
Support 360mm radiator in front.
- Powerful Air Cooling Compatibility
Max. CPU Cooler Height : 160mm. Support most of the high-end air coolers.
- Unlimited Performance
Max. GPU Length : ≤340mm (with front fan) / ≤370mm (without front fan)
Specifications
Specifications
Dimensions
393 x 205 x 485mm (D x W x H)
Form Factor
Mid Tower
Materials
Steel + Plastic
Mainboard Support
ATX, M-ATX, ITX

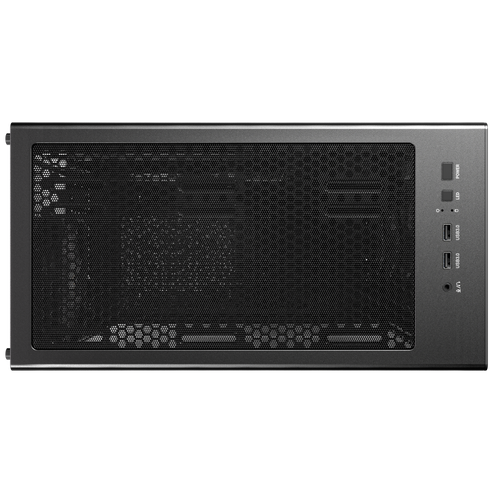

Front Access & Controls
- Power
- LED Control Button
- USB 3.0 x 2
- Headphone/Mic Combo Jack
Side Panel
4mm Tempered Glass

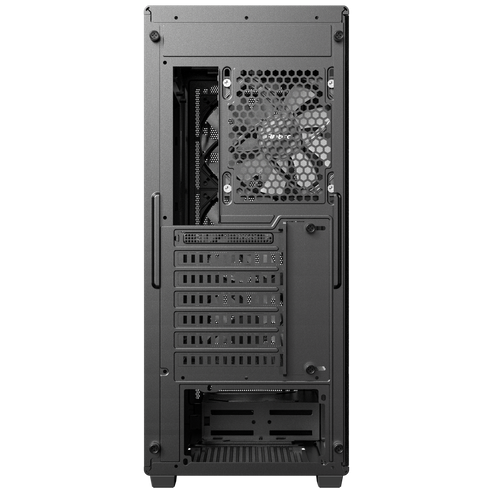

Expansion Slots
7
Drive Bays (3.5" / 2.5")
2 / 2
Drive Bays (2.5")
2
Fan Support - Front
3 x 120mm / 2 x 140mm
Fan Support - Top
2 x 120mm / 2 x 140mm
Fan Support - Power Supply
2 x 120mm
Fan Support - Rear
1 x 120mm
Included Fan(s)
- 3 x 120mm ARGB fans (front)
- 1 x 120mm ARGB fan (rear)
Radiator Support - Front
120 / 140 / 240 / 280 / 360mm
Radiator Support - Top
120 / 240mm
Radiator Support - Rear
120mm
Max GPU Length
- ≤ 340mm (with front fan)
- ≤ 370mm (without front fan)
Max CPU Cooler Height
≤ 160mm
Max PSU Length
- ≤ 200mm (with HDD, cable included)
- ≤ 370mm (without HDD, cable included)

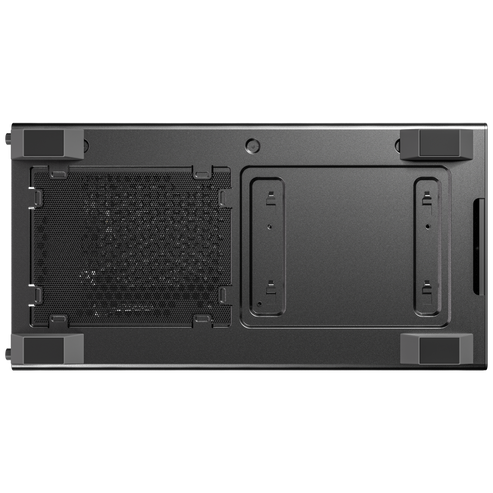

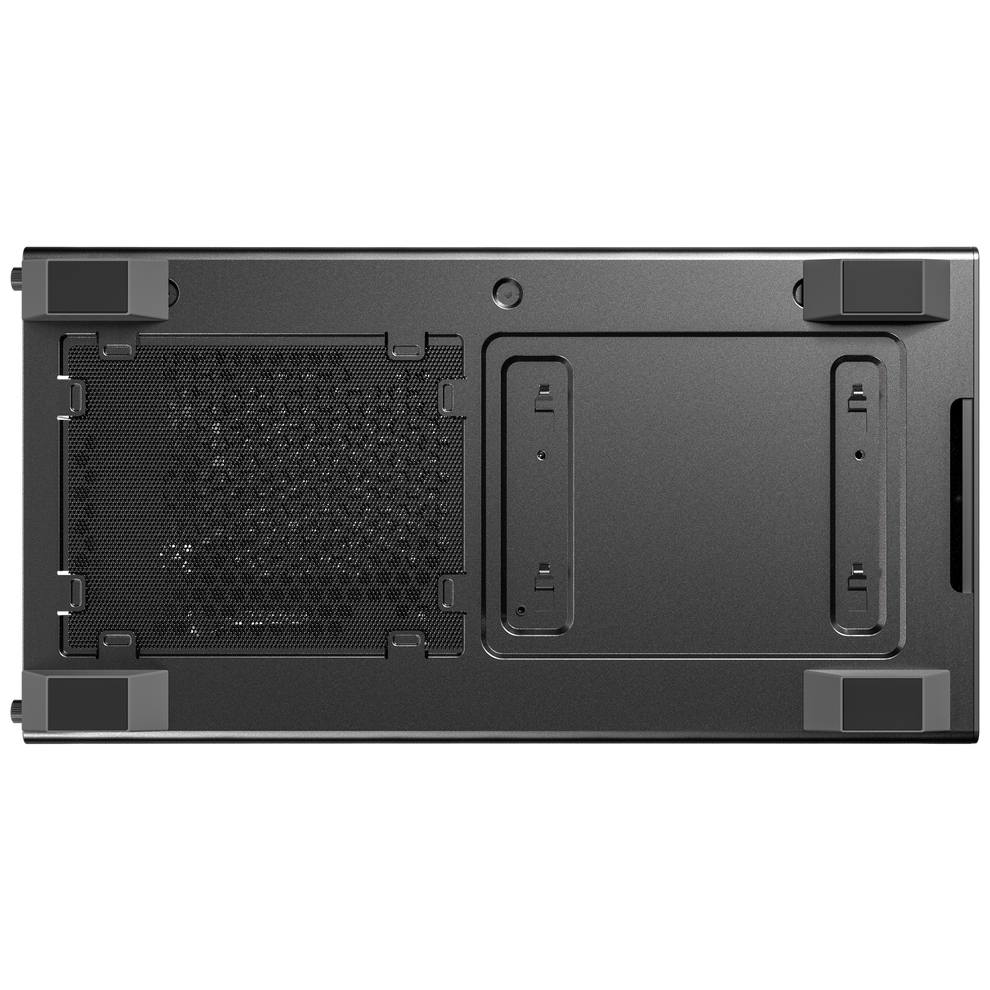

Dust Filter
Top / Bottom
Net Weight
6.3 Kg
Gross Weight
7.5 Kg
Warranty
1 Year
UPC#
0-761345-10173-8
