- Unique Design & Powerful Heat Dissipation

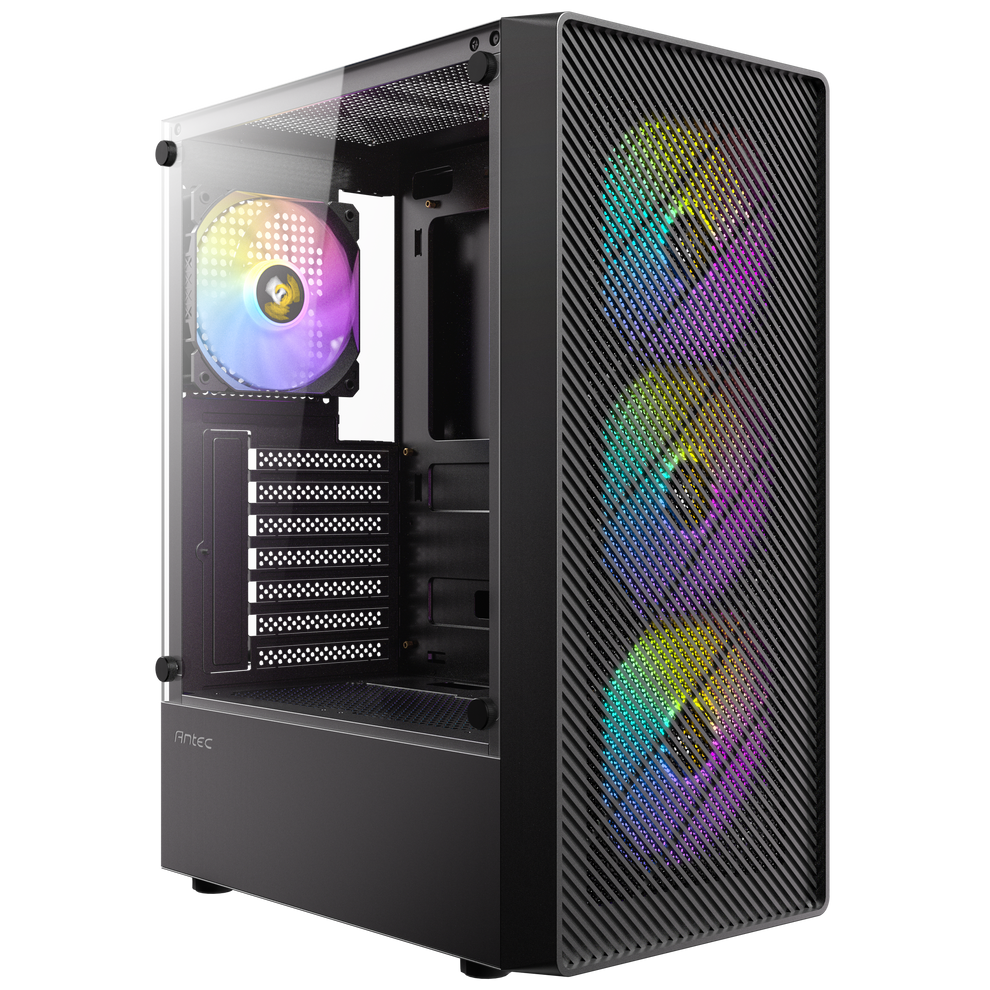

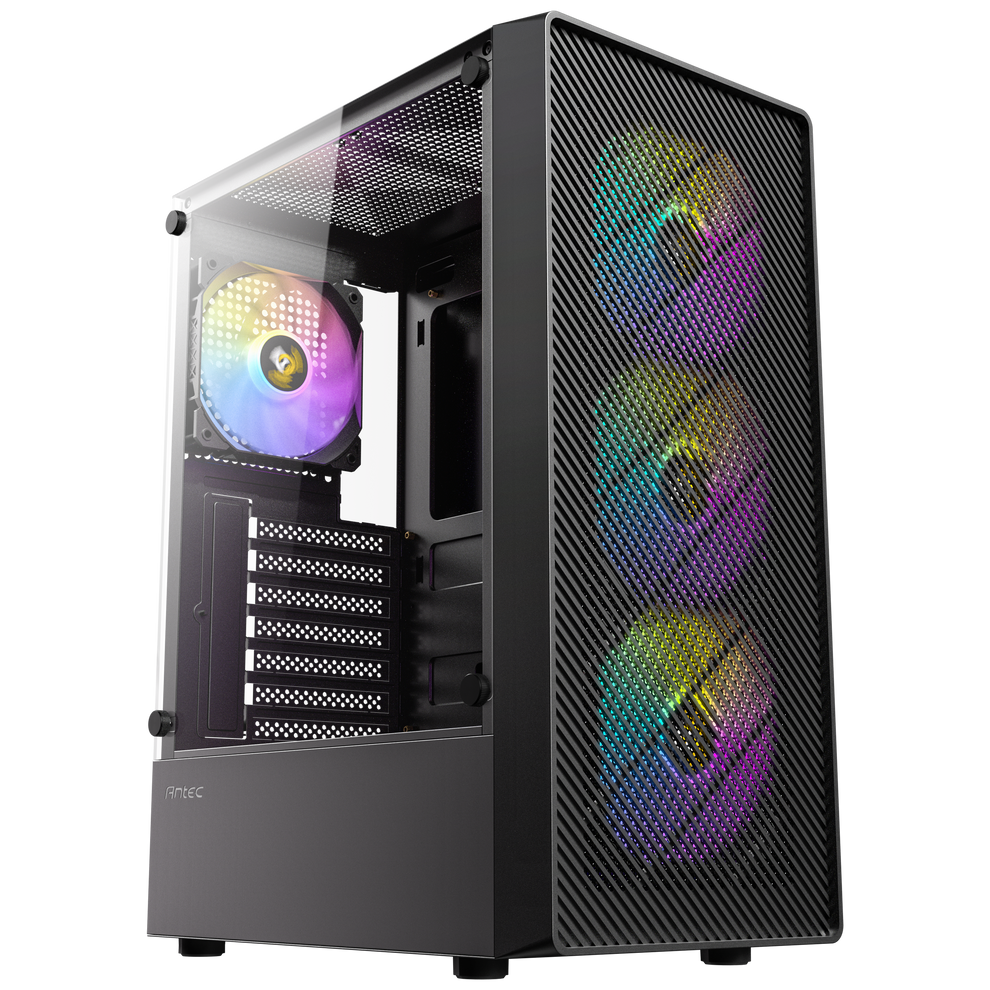

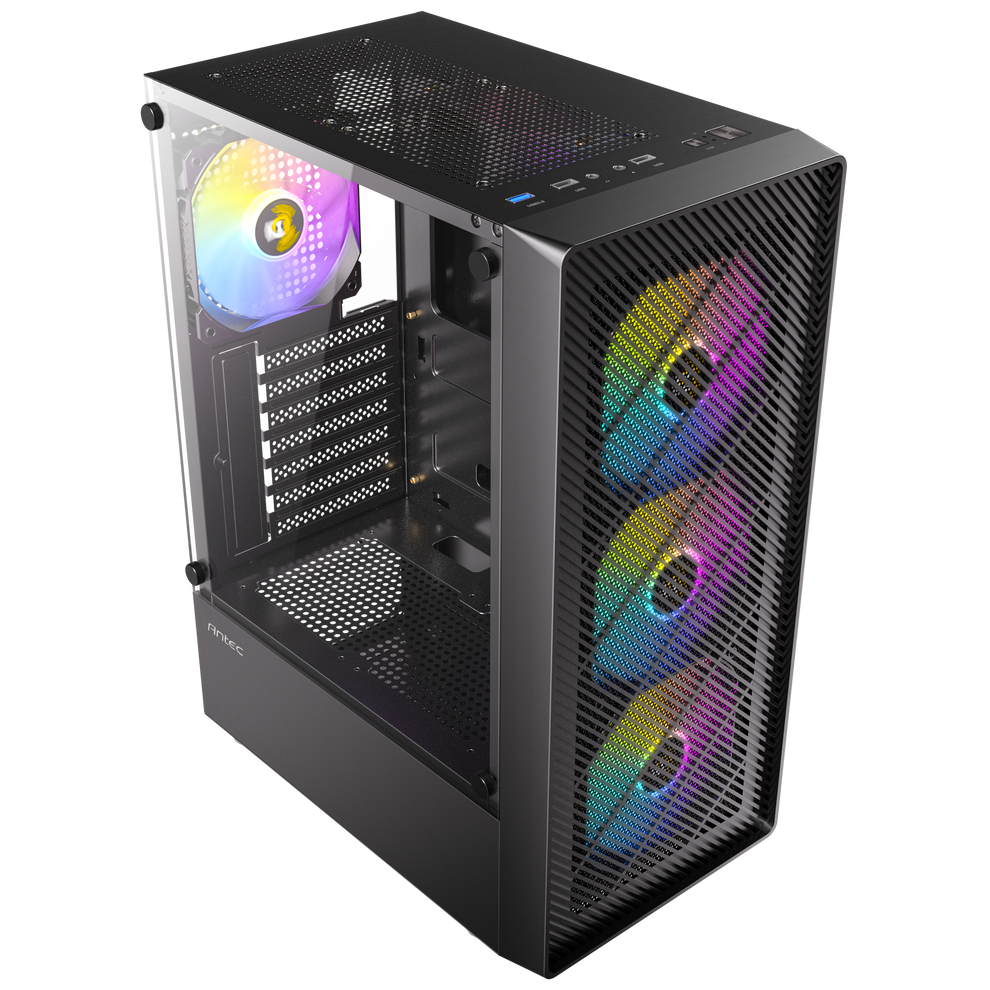

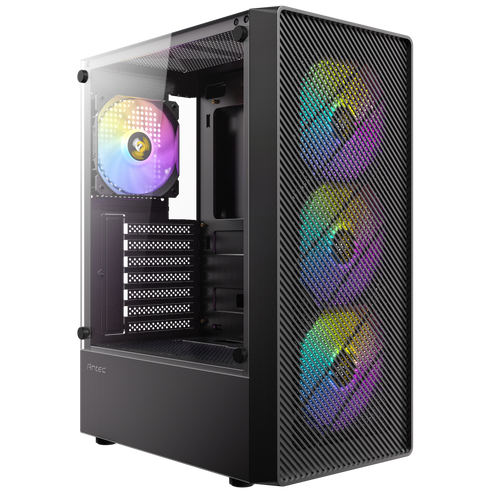

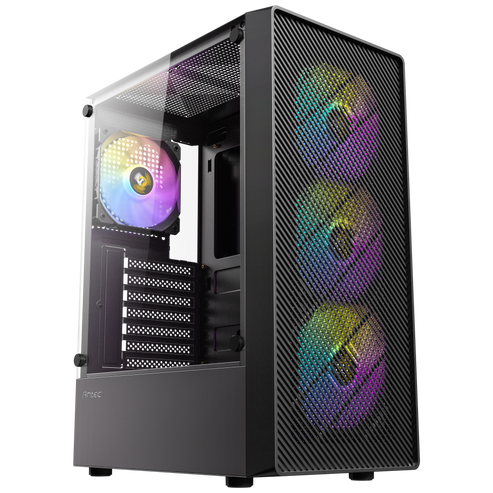

AX26 RGB Elite features a grille-style front panel that enhances airflow for efficient cooling. With a half-view tempered glass side panel, it provides a sleek and stylish showcase for your build.

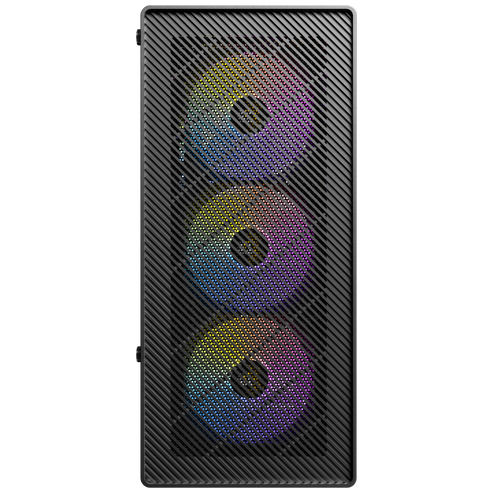

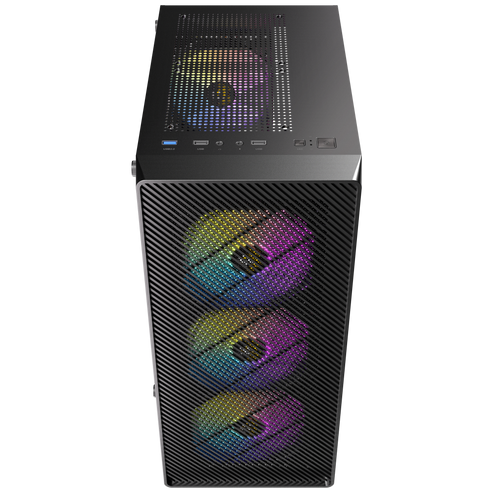

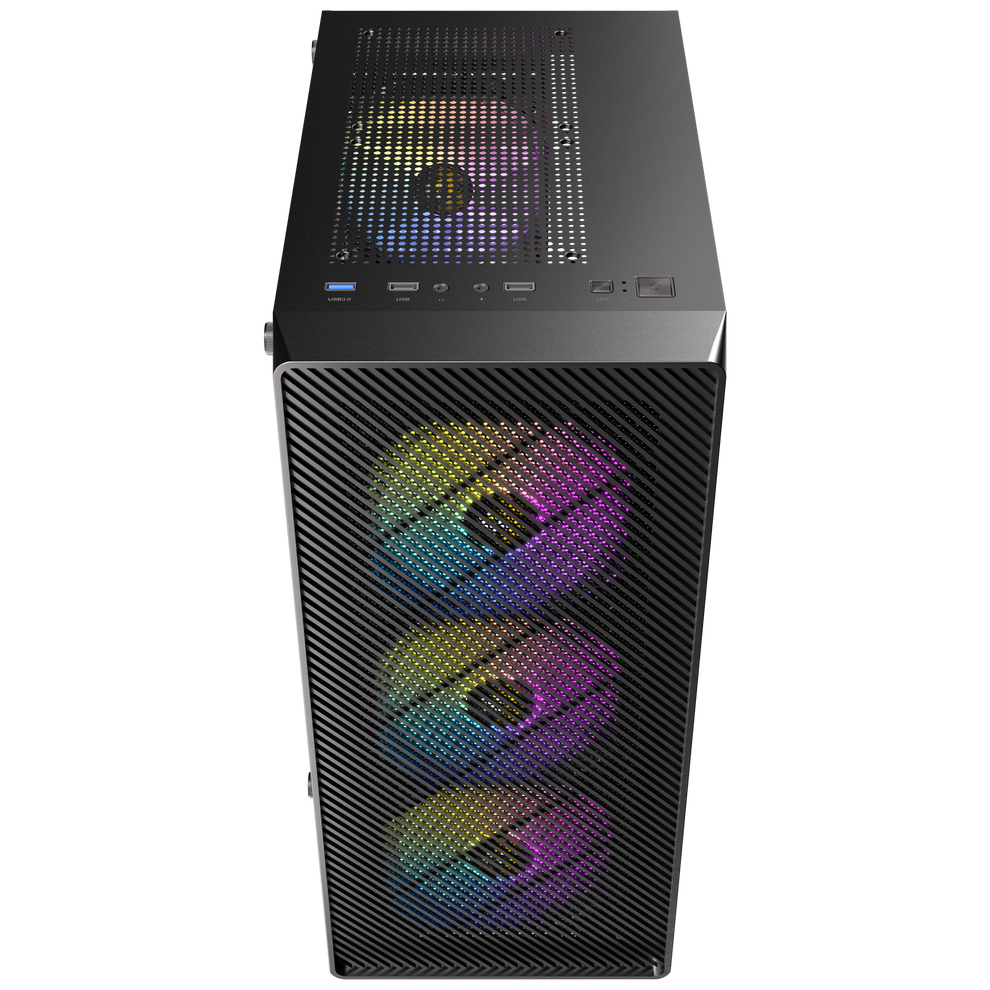

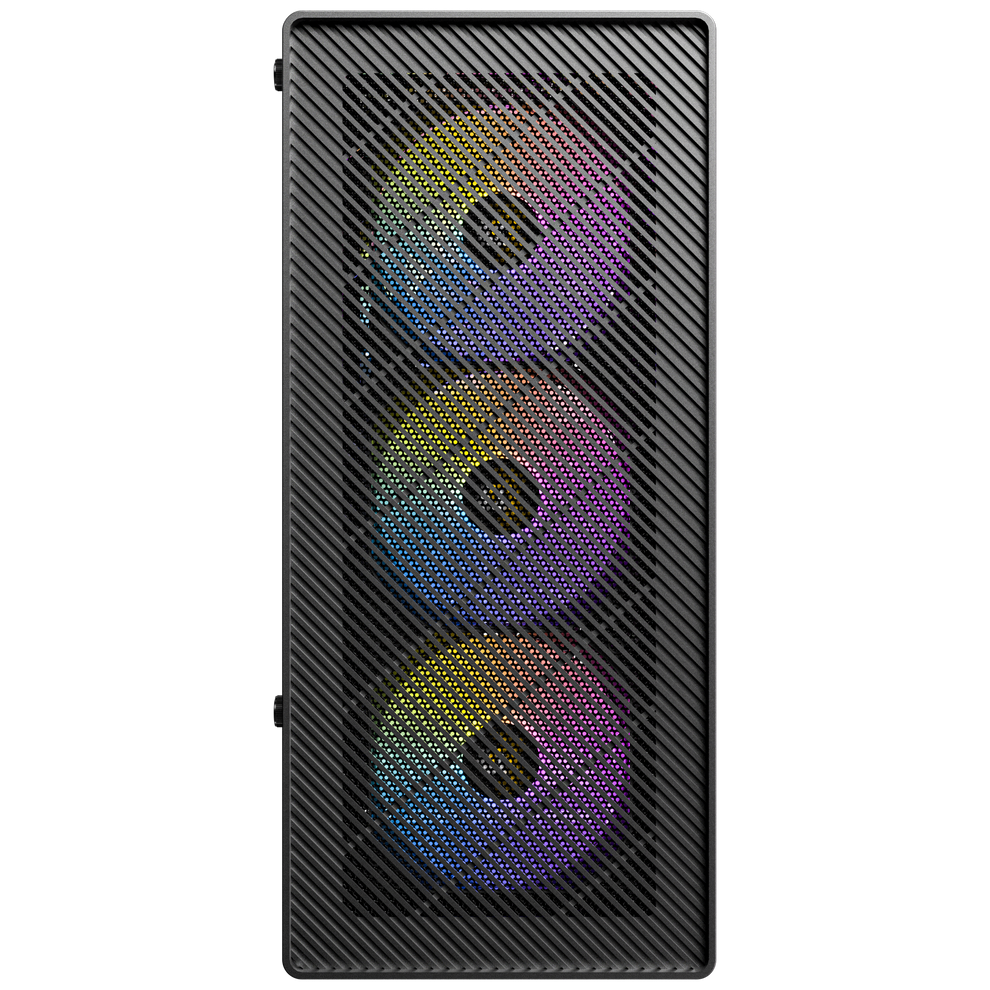

- Grille-Style Front Panel Design
Designed with a high-airflow, grille-style front panel, maximizing intake airflow while maintaining a modern aesthetic.
- High-Airflow Front Panel
Optimized ventilation with massive air intake at the front, top, and bottom, ensuring stable system performance.
- Powerful Cooling Compatibility
Max. CPU Cooler Height : 155mm. Supports most of the high-end air coolers.
- Unlimited Performance
Max. GPU Length : ≤ 295mm (When the fan is installed at the front) /
≤ 270mm (When the fan is installed at the rear)
≤ 270mm (When the fan is installed at the rear)
Specifications
Specifications
Dimensions
345 x 207 x 451mm (D x W x H)
Form Factor
Mid Tower
Materials
Steel + Plastic
Mainboard Support
ATX, Micro-ATX, ITX

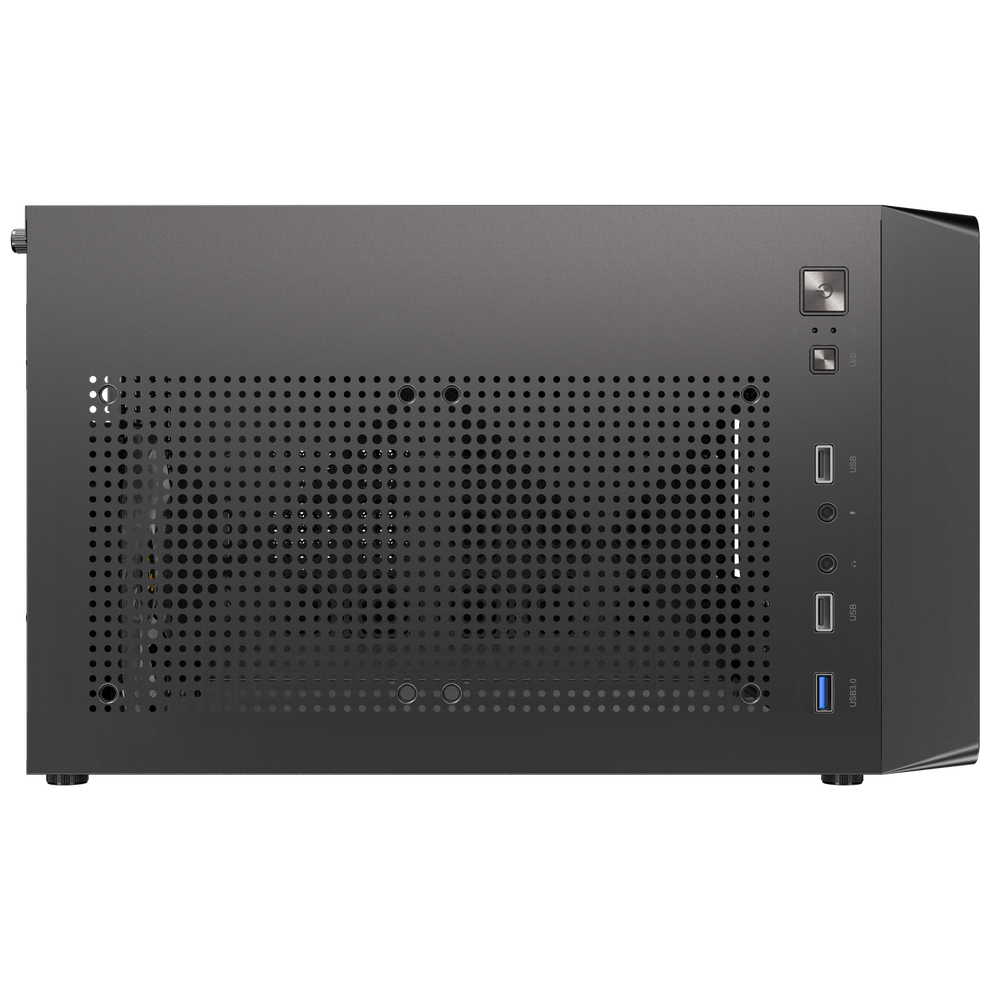

Front Access & Controls
- Power Button
- LED On/Off Button
- USB 2.0 x2
- USB 3.0 x1
- MIC / HD-AUDIO
Side Panel
Tempered Glass
Expansion Slots
7
Drive Bays (3.5" / 2.5")
2 / 1
Drive Bays (2.5")
2 (motherboard width must be less than 185mm)
Fan Support - Front
3 x 120mm / 2 x 140mm
Fan Support - Top
2 x 120mm
Fan Support - Power Supply
2 x 120mm
Fan Support - Rear
1 x 120mm
Included Fans
- 3 x 120mm FRGB fans (front)
- 1 x 120mm FRGB fan (rear)
Radiator Support - Front
120 / 140 / 240 / 280mm
Max GPU Length
- ≤ 295mm (with front fan installed)
- ≤ 270mm (with rear fan installed)
Max CPU Cooler Height
≤ 155mm
Max PSU Length
- ≤ 170mm (with HDD, cable included)
- ≤ 295mm (without HDD, cable included)
Dust Filter
Front (non-removable) / Bottom
Net Weight
3.96 kg
Gross Weight
4.85 kg
Warranty
1 Year
UPC#
0-761345-10199-8
